A rapier for Christmas

fernando · 5th December 2010, 04:47 PM

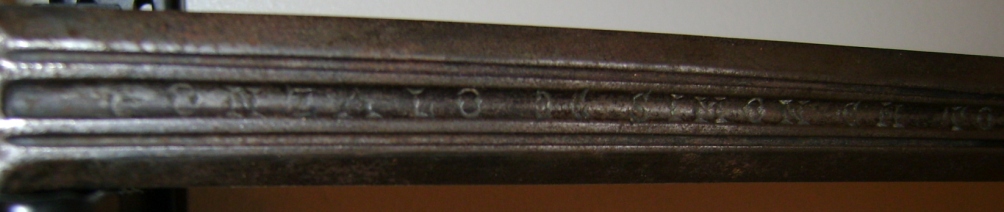

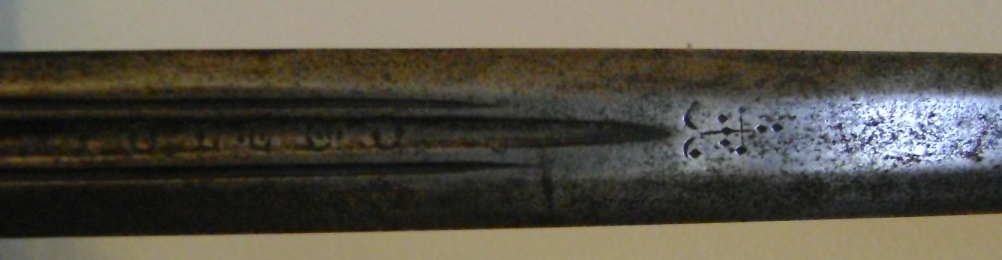

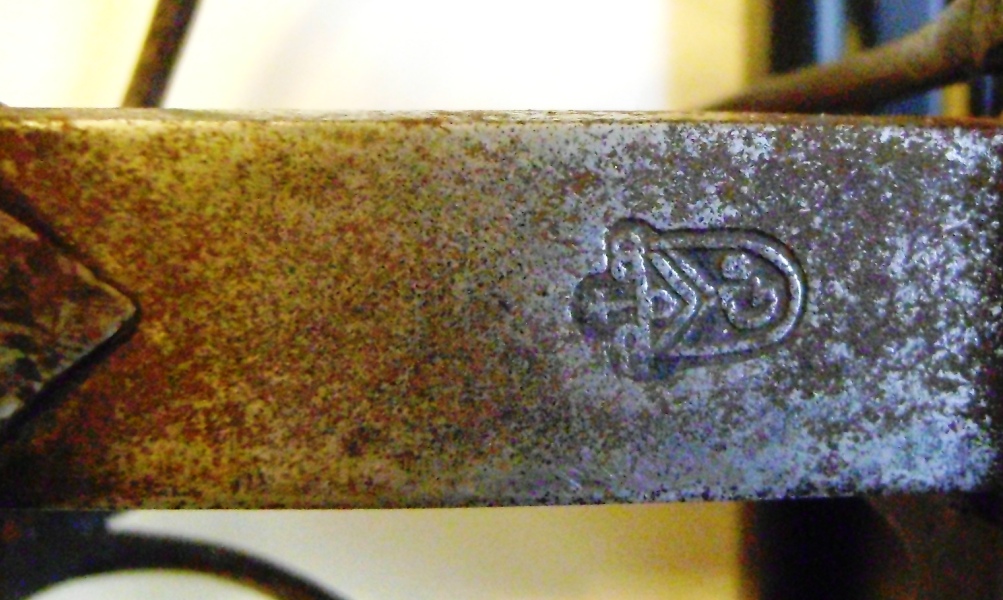

Always an added value when a sword is marked ... and signed.

This time by Gonzalo Simon, a Toledo sword maker from the early XVII century.
He figures in number #35 of Palomar's nomina:
See here post #152
Master Simon is recorded to haved lived in 1617.
There is a sword with his signature in the Real Armeria de Madrid and another one in the Wallace collection.

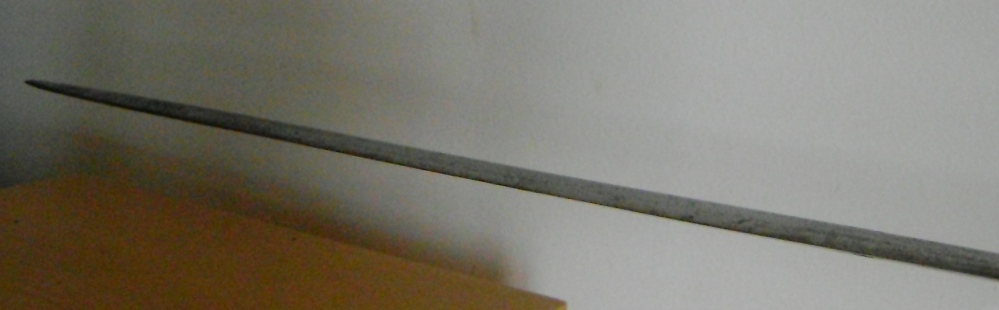

This one here has a 96 cms six face double edged blade, counting from the guard. Total length 118 cms. The width at the forte measures 22 mm and, with a thickness of 10 mm, it acquires the reasonable weight of 1,1120 Kg.
Point of balance 11,5 cms from the guard.

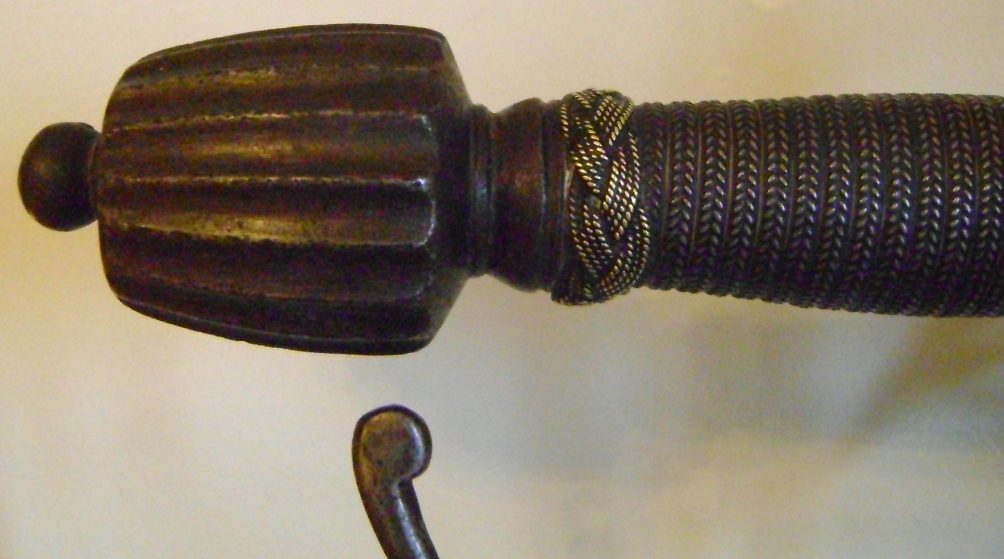

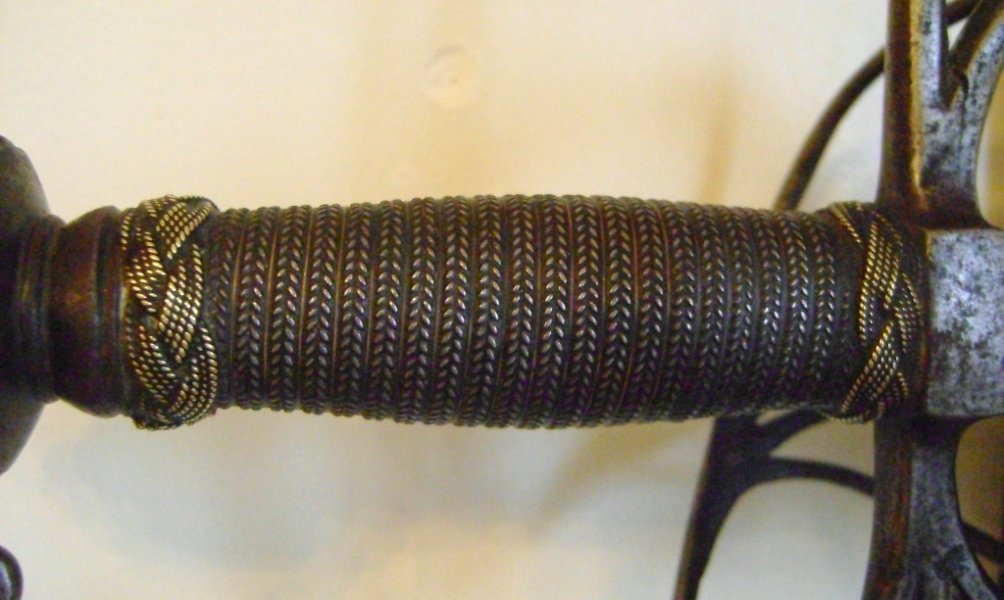

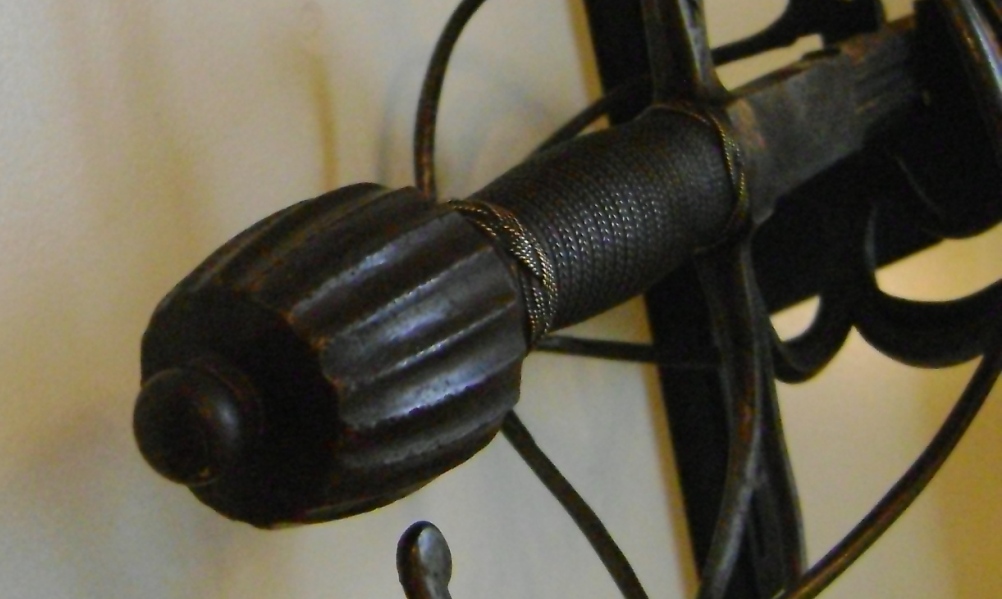

The pommel looks having never being removed; the grip wiring and the two brass turk heads look rather aged ... maybe original ?

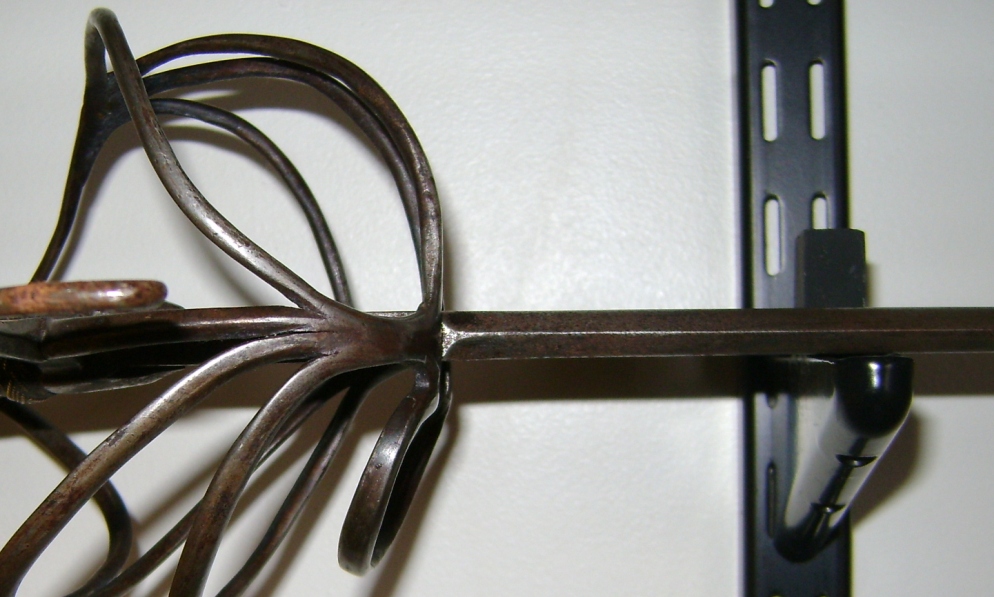

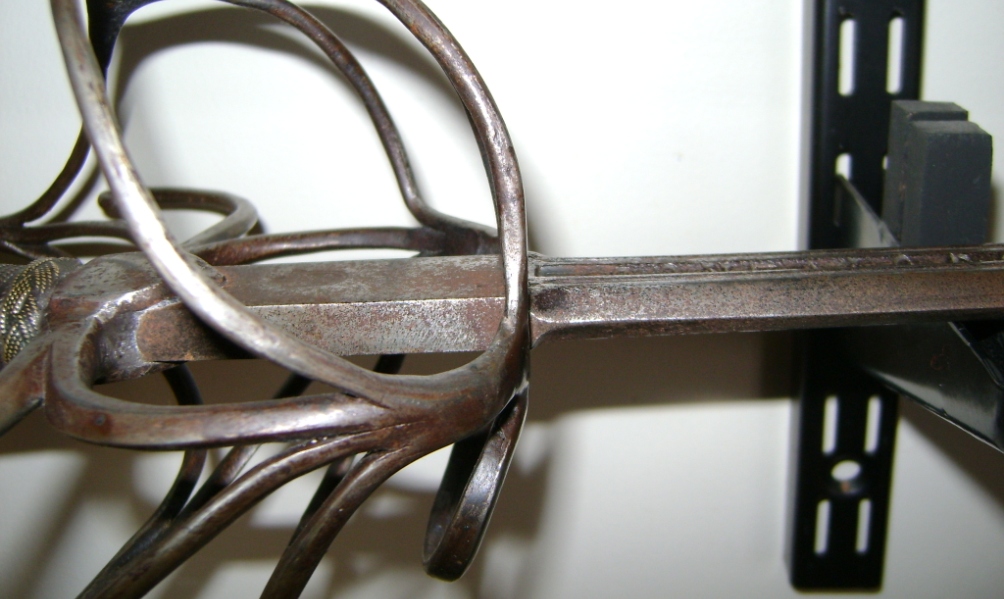

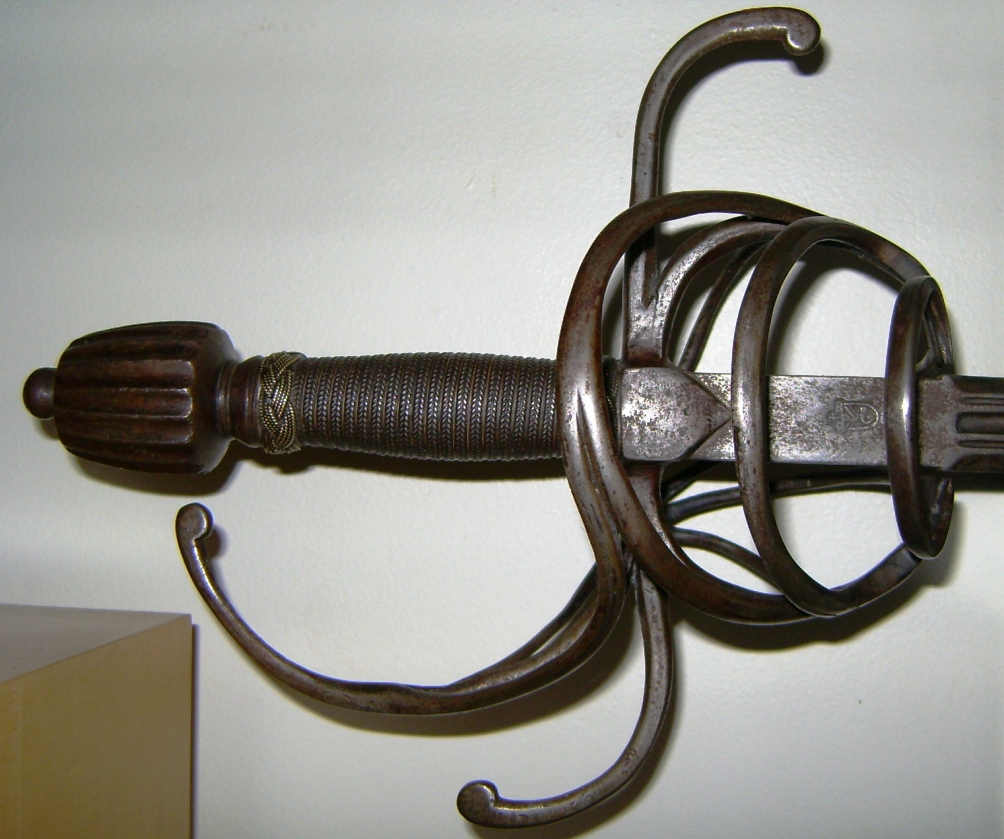

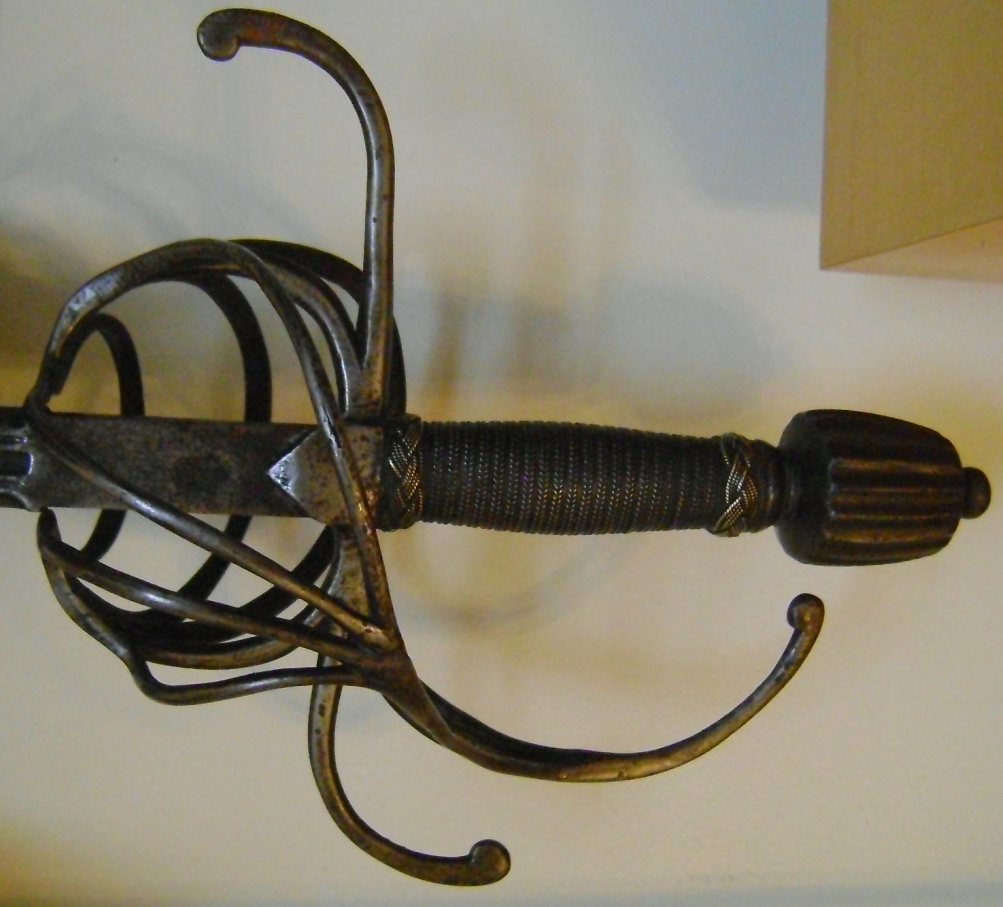

I have tried to establish a typology for the hilt at Norman's, but i don't have enough experience to do it; anyway it looks to me like hilt #61 and inner hilt #35, with exception for the turned quillons.

According to the seller this sword was brought from the United States; go figure why it was kept there.
I will be much obliged for any coments on this piece.

.
