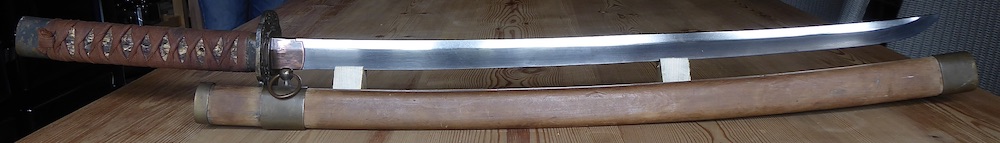

A curious Japanese? sword

Rich · 11th June 2021, 10:30 PM

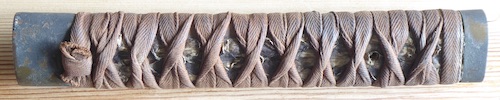

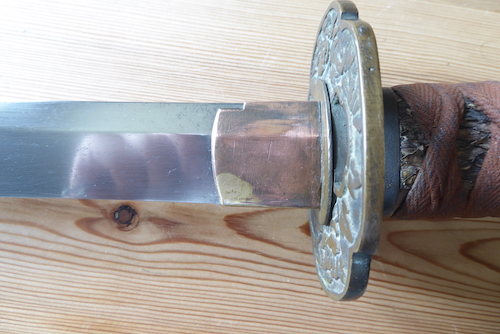

From the way the handle is wrapped and the quality of fittings, I believe this is a Satsuma Rebellion sword. Low quality, but real

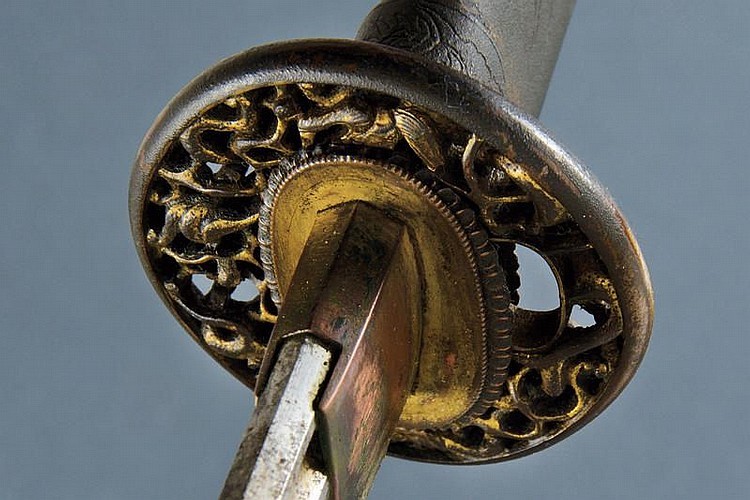

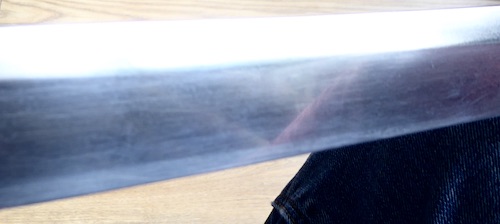

Japanese sword. Can't tell much from blade pics, but seems (?) to have some sort hamon (temper line). Tsuba(guard) is likely cast, not "crafted". Best I can do. Hope you can find more. Try Googling Satsuma Rebellion swords.
Rich

Philip · 11th June 2021, 11:01 PM

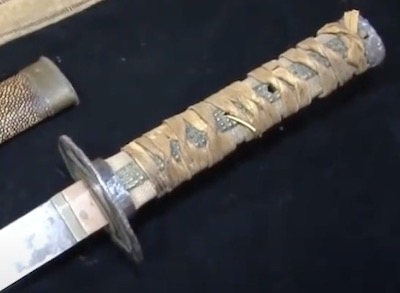

Certain elements remind me of what I've seen on a number of Korean swords of the latter Joseon period (18th -19th cent),

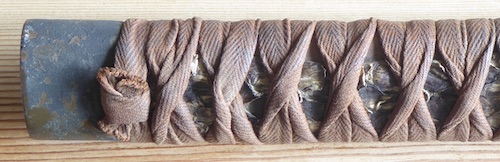

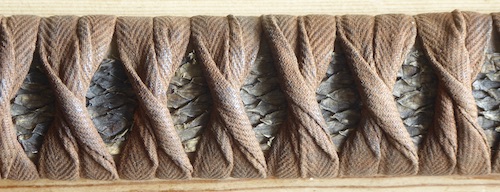

1, The style of grip wrapping, sometimes with even wider braid.
2. Simple sleeve-like ferrule and pommel of rather thin metal

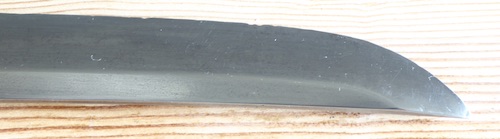

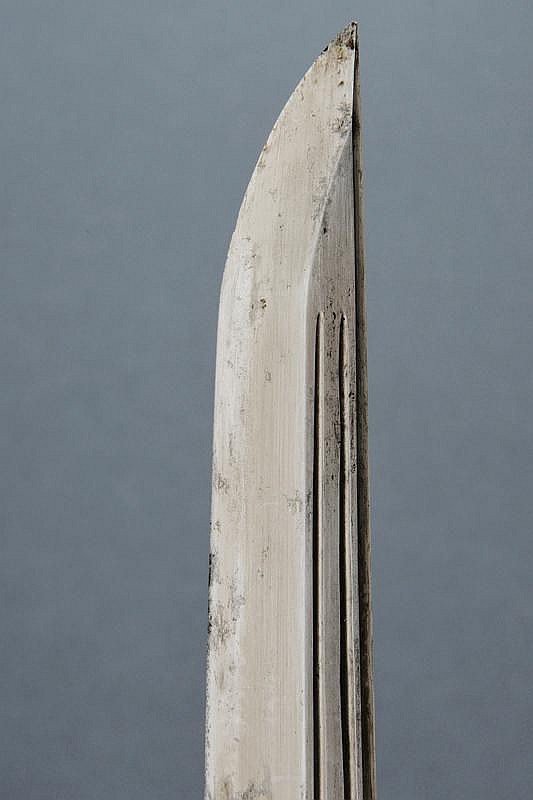

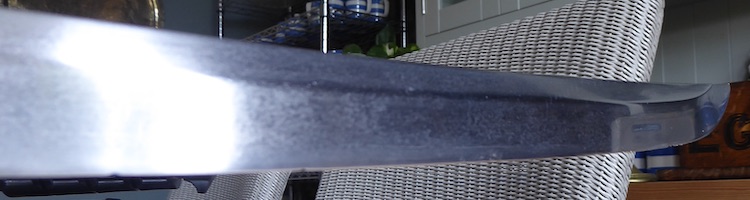

3. Radiused edge at the tip without the yokote or perpendicular delineation at the the apex of the typical angular kissaki on a shinogizukuri configuration blade.

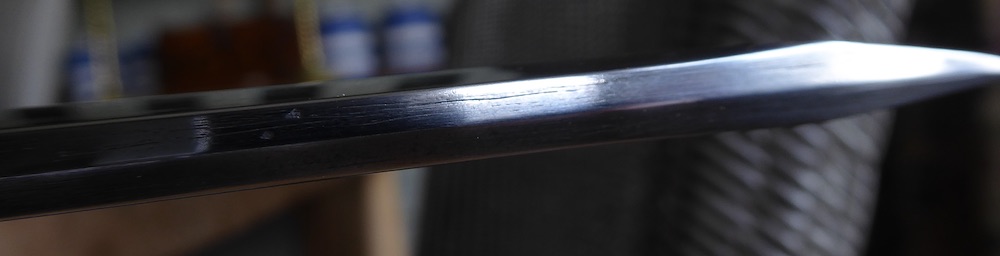

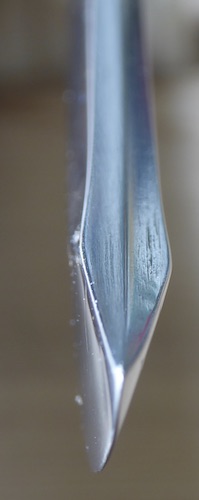

4. The very narrow spine created by a marked taper of the blade cross-section above the shinogi ridge. Perhaps coincidentally, I've seen an identical cross-section in a Bukharan saber in the Moser Collection, in profile the blade looked almost double edged in that extreme example. 'Don't know if it's a continental affectation, although a couple of Chinese examples have come to my attention over the years; they are not common and the Bukhara manifestation is the only instance of that type I've seen so far from that region.

Norman McCormick · 11th June 2021, 11:19 PM

Hi Rich and Philip,
Many thanks for your insights. The Korean idea did momentarily cross my mind in my mental search for other societies with similar weaponry to Japan and I think it is an avenue worth exploring. If any more detailed photos would help with your thoughts please let me know.
My Regards,
Norman.

mariusgmioc · 11th June 2021, 11:59 PM

I don't believe this is a Japanese sword.

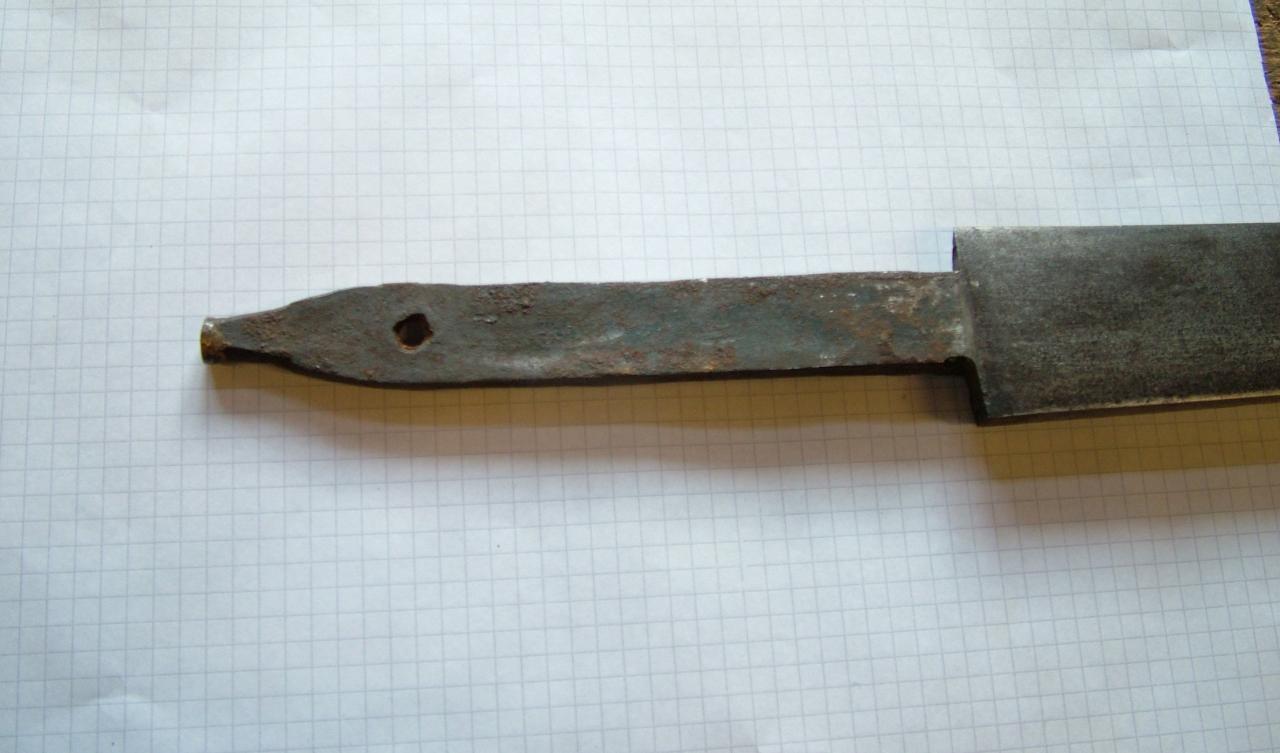

The shape and tip of the nakago, the not perfectly straight filing marks, as well as the rust covering them are giveaways.
However, I am not very knowledgeable about Japanese swords and would advise you to post it on Nihonto Message Board forum.

https://www.militaria.co.za/nmb/

Bryce · 12th June 2021, 01:55 AM

G'day Norman,

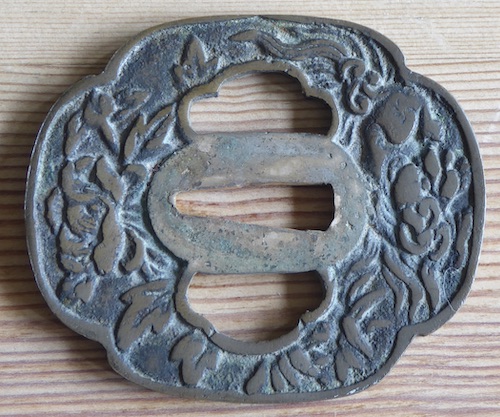

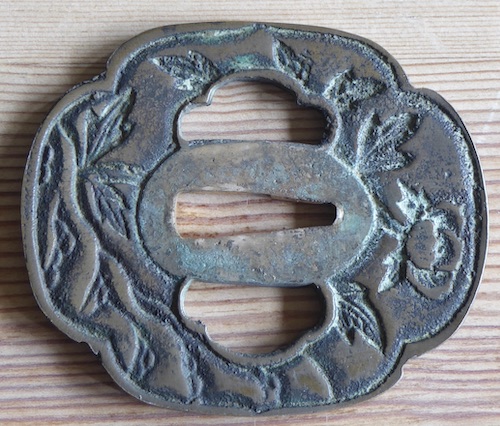

Unfortunately this isn't Japanese and is probably a Chinese fake. Nothing about the tsuka (handle) is Japanese, the tsuba is crudely cast, the nakago is very crudely finished, blade geometry all wrong and the notches where the habaki fits don't line up. I don't know anything about Korean swords, but most likely a Chinese wall hanger.
Cheers,
Bryce

Norman McCormick · 12th June 2021, 12:46 PM

Hi Marius and Bryce.

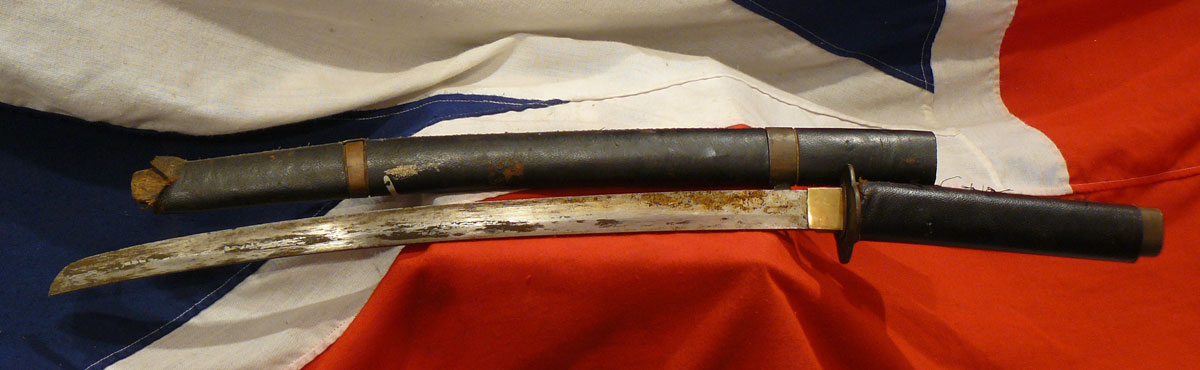

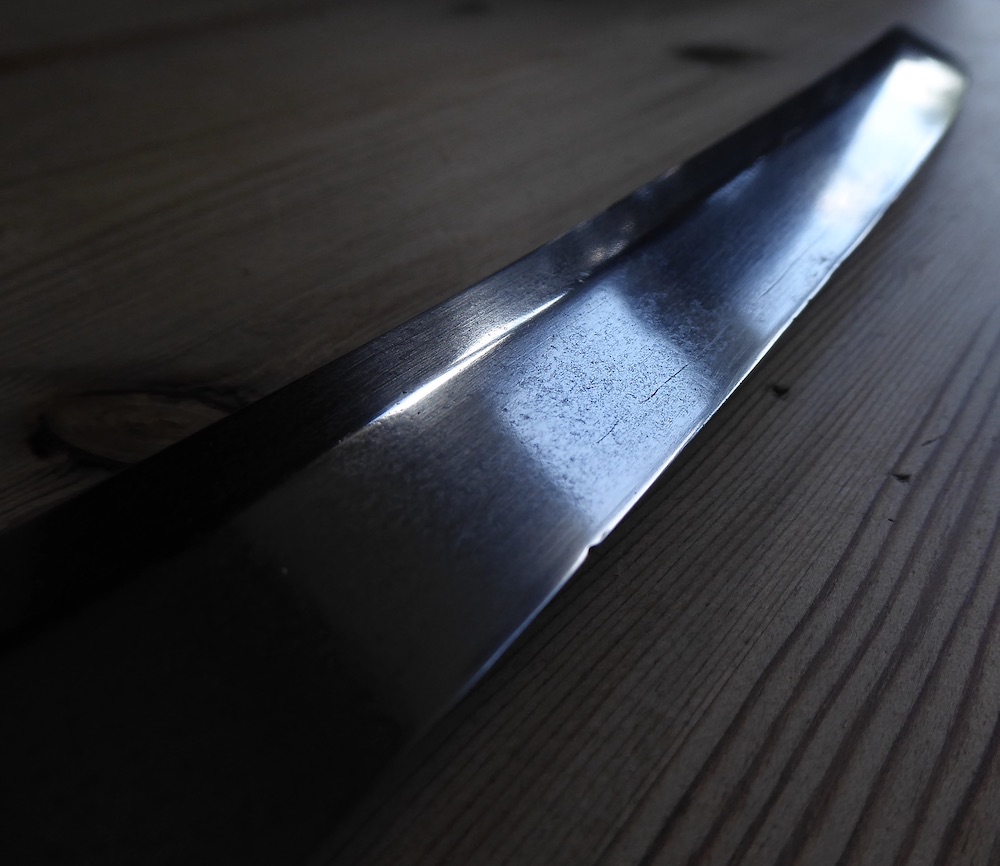

Thanks for your continued interest. Bryce I'm afraid I have to disagree with the Chinese wall hanger attribution. Although the fittings are obviously cruder than normal Japanese ones the blade is not wall hanger junk. It may not be up to Japanese standards but in hand it is definitely not of the 'katana will cut steel' variety. To me the habaki seems to fit o.k. maybe you could elaborate on the misalignment a bit. The scabbard furniture is a bit of a riddle but appears to conform more to the Korean setup. At the moment I am pursuing the Korean and non Japan idea. Thanks again.
My Regards,
Norman.

Norman McCormick · 12th June 2021, 02:31 PM

Hi,
This may be of interest.

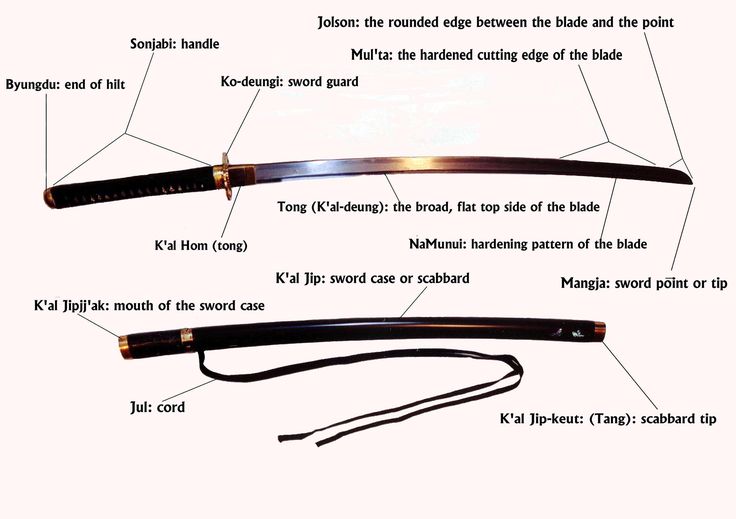

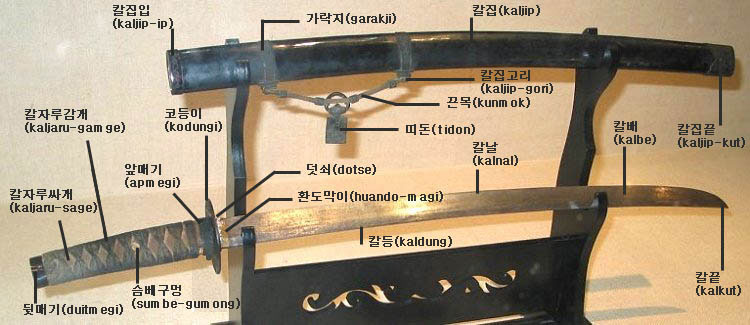

Do, commonly referred to as a Hwando or "military sword," was a single-edged sword, used as a sidearm for the Korean soldier well into the 19th century. Sometimes referred to as a "short sword," relative to the larger sized two-handed Sangsoodo, its length of 24 to 34 inches was comparable to that of the two-handed Japanese Katana which may have been the inspiration for the Ssangsoodo. Reports found in the "Book of Corrections," a Korean record of the Imjin Warum (1592–1598), state that Japanese swords taken in combat were readily pressed into service by simply trimming the length of the hilt. Forged of carbon steel the Do has a single-edged, curved blade, a sword guard, and a grip typically of wood. Earlier practice saw the Do suspended from a cord (Jul) and with a simple metal hanger which allowed the soldier to speedily discard his sheath. In later practice, the sword was suspended from a girdle or belt but retained a simple metal quick-release clip.[12]

Regards,
Norman.

mariusgmioc · 12th June 2021, 02:32 PM

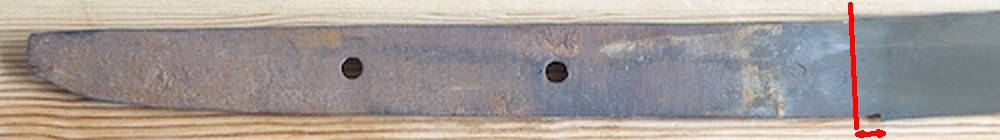

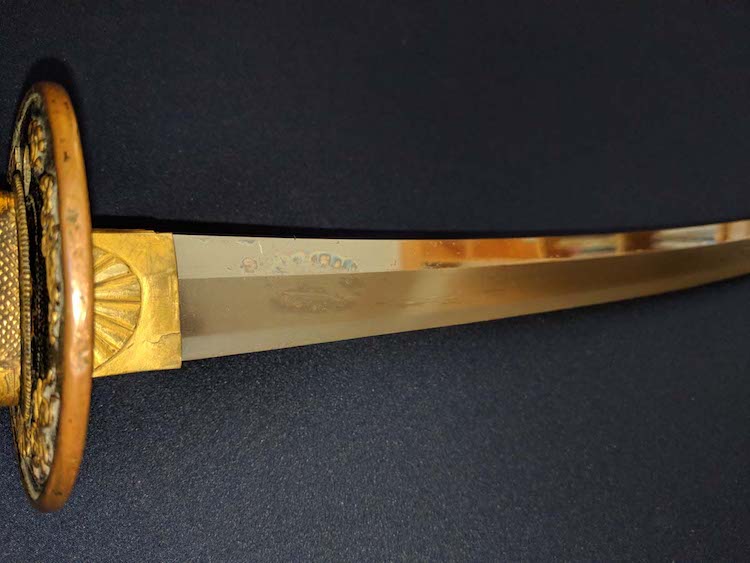

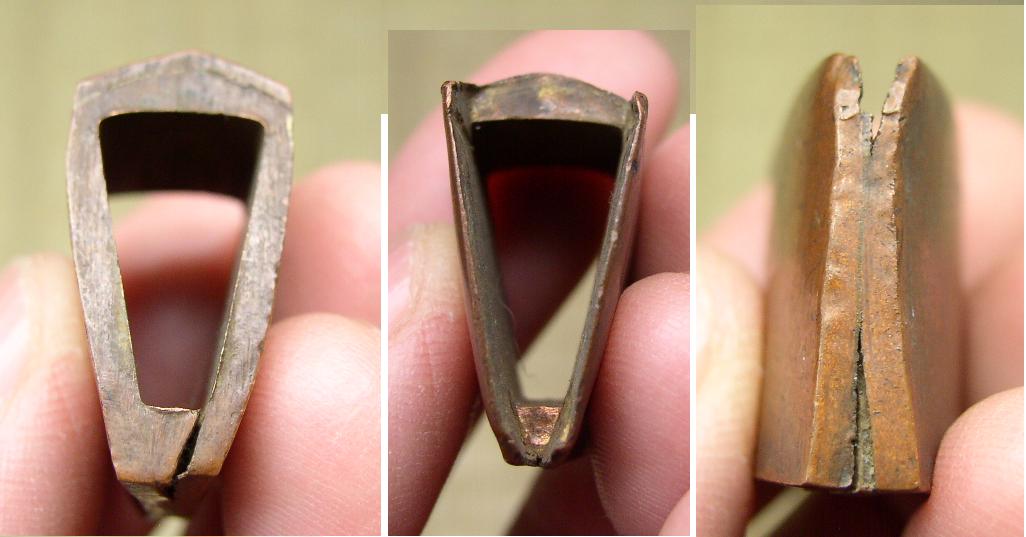

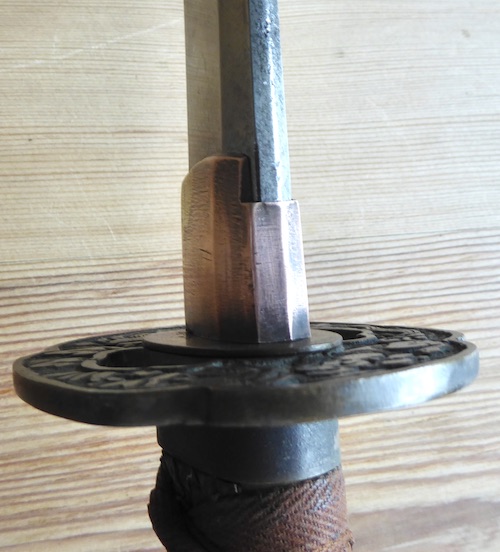

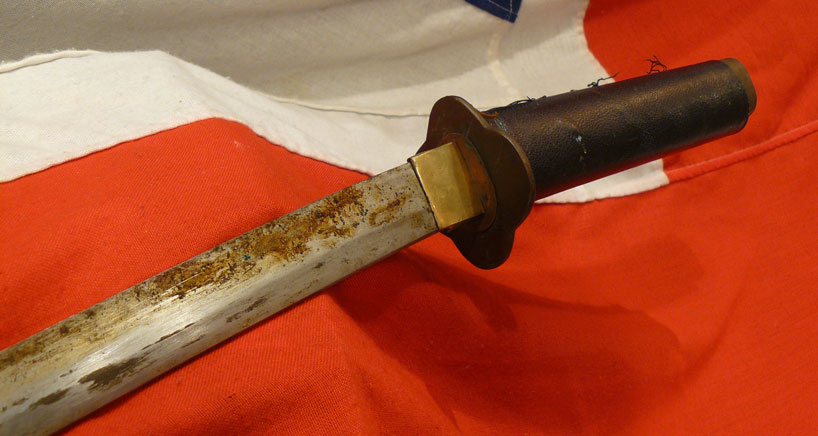

Regarding the misalignment of the notches, just have a look at the photo.
In Japanese swords they are perfectly aligned.

ariel · 13th June 2021, 05:31 AM

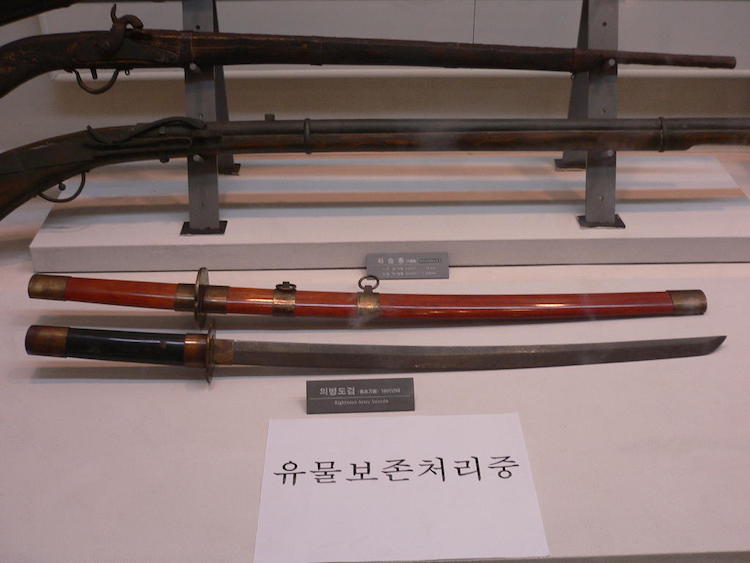

I do not know much about Korean sword; thus, I have to rely fully on the chapter by Park Je Gwang, a curator of the War Memorial of Korea. This was published in a book titled "History of steel in Eastern Asia", a catalogue of the Macao exhibition. Two of our colleagues, Ian and Jose ( Battara) coauthored a chapter on Sandata, Philippines bladed weapons.

Back to the Korean swords. The main cultural difference between them and the Japanese swords was a very different attitude. The was nothing of a " Sword is the soul of the samurai". Swords were just implements, no more. The main physical difference was the attachment of the handle to the tang: in Japan the mekugi was easily removable, in Korea they had a true rivet, that prevented any disassembly.

Look at yours and see which method was used in your sword.

Norman McCormick · 13th June 2021, 03:25 PM

Quote:

Originally Posted by ariel

I do not know much about Korean sword; thus, I have to rely fully on the chapter by Park Je Gwang, a curator of the War Memorial of Korea. This was published in a book titled "History of steel in Eastern Asia", a catalogue of the Macao exhibition. Two of our colleagues, Ian and Jose ( Battara) coauthored a chapter on Sandata, Philippines bladed weapons.

Back to the Korean swords. The main cultural difference between them and the Japanese swords was a very different attitude. The was nothing of a " Sword is the soul of the samurai". Swords were just implements, no more. The main physical difference was the attachment of the handle to the tang: in Japan the mekugi was easily removable, in Korea they had a true rivet, that prevented any disassembly.

Look at yours and see which method was used in your sword.

Hi Ariel,
The hilt is secured by a peg and not a rivet so I guess from your research that rules out a Korean attribution.
My Regards,
Norman.

Norman McCormick · 18th June 2021, 06:26 PM

Quote:

Originally Posted by ariel

I do not know much about Korean sword; thus, I have to rely fully on the chapter by Park Je Gwang, a curator of the War Memorial of Korea. This was published in a book titled "History of steel in Eastern Asia", a catalogue of the Macao exhibition. The main physical difference was the attachment of the handle to the tang: in Japan the mekugi was easily removable, in Korea they had a true rivet, that prevented any disassembly.

Hi,
Also from the above publication.

'Another method used a cooper pin like the Mekugi just above the sword guard, and a tube inserted into a hole in the handle, to which a tassel was attached.'

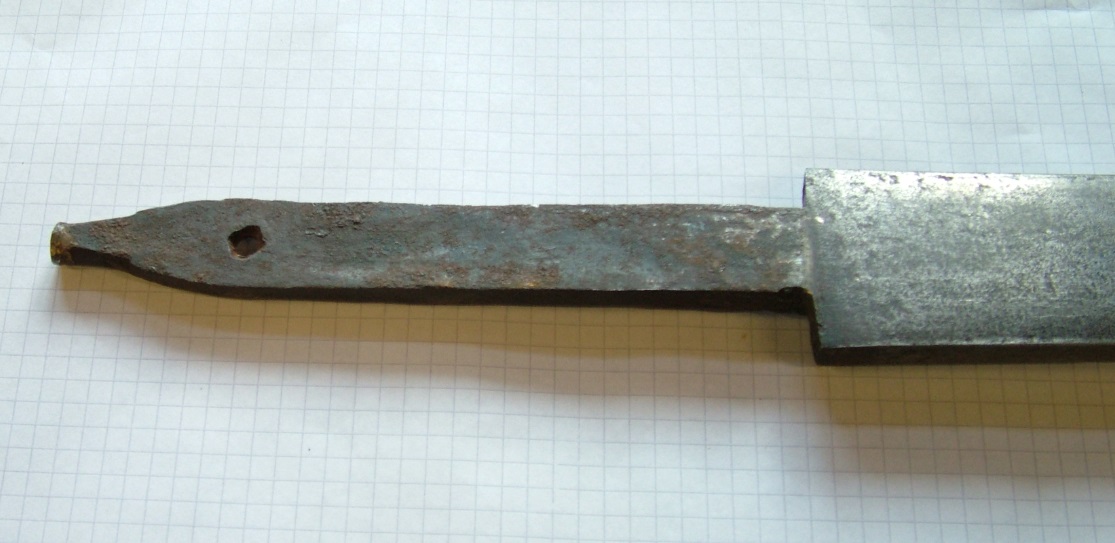

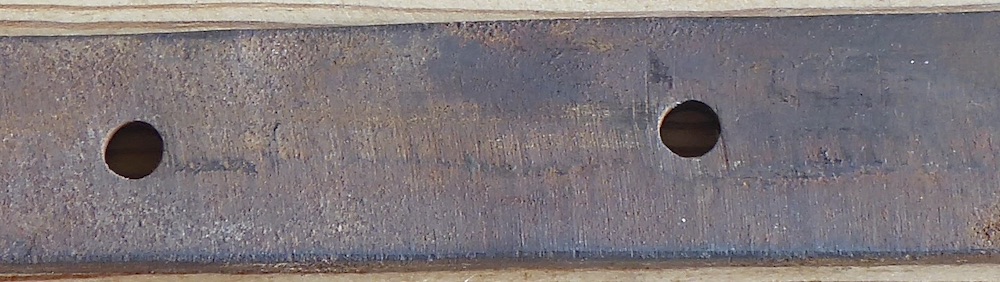

This could possibly account for the two holes in the tang of my blade as it is reasonably evident the blade is not original to the current mounts. I presume the 'cooper pin' is a typo and is intended to be a copper pin.
Regards,
Norman.
