Sinhala / Sri Lankan Swords?

[Ibrahiim al Balooshi]

Originally Posted by KuKulzA28

Hello! I've been curious about Sinhala swords... There doesn't seem to be as much information of Sri Lankan arms on this forum as there is on say Indo-Persian, European, Moro, and others. All I found were a few threads about Piha Kaetta and Kastane.

Does anyone have knowledge and/or sources on Sinhala weaponry especially swords? Anyone actually own examples?

Aside from kastane, the few images I have seen are from the angampora website which shows "urumi"-like flexible blades and also rustic looking sabers/cutlasses with simple guards and wooden cylindrical grips.

I have little to no knowledge of Sinhala swords and other weapons, so I was hoping maybe some EAA Forum members would have knowledge on this matter.

Thanks!

Salaams KuKulzA28 ~ I hope you find the thread interesting so far. Any input you might have would be useful... and that goes for all our Forum friends and any onlookers ~ (who I urge to join ! ) Kind Regards.
Regards,
Ibrahiim al Balooshi.

[fernando]

Thanks for playing the forum host, Ibrahiim; i wouldn't do it better myself !!

[Ibrahiim al Balooshi]

Salaams ~ Note to Forum.

In order to focus on the possibility of Portuguese Sri Lankan 15th 16th and 17th Century sword making style it is possible, looking at the Kastane style, that some influence is there from the Jineta design. The apparent finger ring / turned down quillons may be a direct take off in that regard though they seem only decorative. Certainly lavish decorated quillons would add to the weapon being adopted in the role as a court sword rather than a fighting weapon. This is unclear. The problem being that blade length varied enormously.

Could some have been court sword and others weapons?

Regards,
Ibrahiim al Balooshi.

Note; See # 10 on http://www.vikingsword.com/vb/showthread.php?t=6768

[Prasanna Weerakkody]

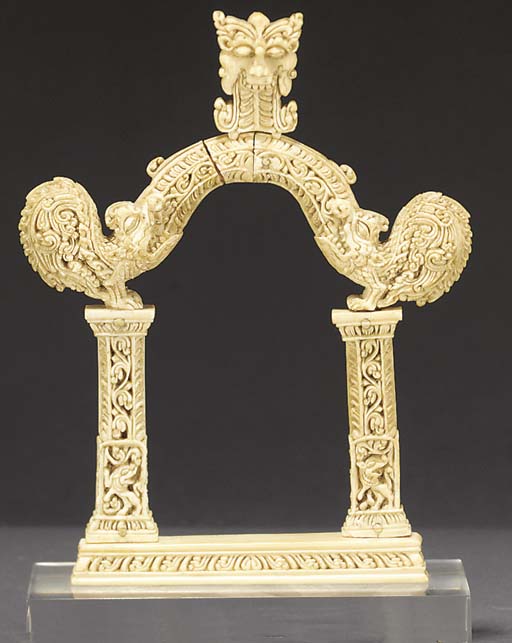

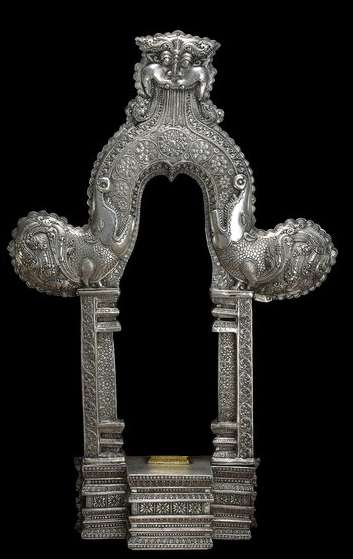

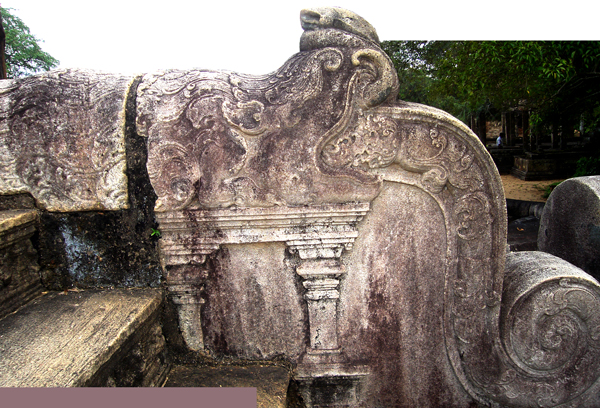

Balooshi -All images I presented (posts 76 and 78)on the Lion and Makara figures are for one purpose- to illustrate
1. Not only Makara figures are portrayed with figures emanating from their mouths.
2. In a SINHALA CONTEXT most Makara figures do emanate foliage (all images included) and is not limited to beasts.
Also I don’t think you can assess the elements purely on regional references. As with the difference in Swords; the Sinhala Motifs have its own sub culture distinct from the regional/ Indian system. All assumptions must be based on this.
..

Strangely it seems you are UNABLE to see the differences that define the “species” of beast heads that figure on the Kasthana swords. Please check definition in my post #23. for a definition which expands on format given by Ananda Kumaraswami. Your assumption “The Hilt, The KnuckleGuard, The Quillons and The Cross Guard are of one linked style” and your “advise against separating the pommel decoration from the rest of the Hilt” are in Error.

There are three common types of beasts portrayed on them. The only figure that emanates a secondary figure consistently on the Kasthana is the figure that appears at the base of the Knuckle guard. which is almost always a Makara. the figure on the opposite terminus of the cross guard also on occasion extrude a short floral extension. On some instances the terminal figure of the Knuckle guard is portrayed emanating either floral or animal forms. This figure is either of a Serapendiya or Makara design. The Quillons too can be either Serapendiya or Makara. on occasion the figures on the cross guards also consist of Serapendiya heads. It is also important to note that the Serapendiya is also figured with forms appearing from its mouth which seem not to be limited to the Makara. The Lion only appears on the pommel of the hilt and is not proper on any other part except in some weak later period swords that do not follow tradition properly. I cannot recollect seeing any Kasthana with the pommel Lion figure emanating anything from its mouth except for a simple extended tongue (consistent with lion figure in other Sinhala art forms)

Image of a possible deity on a Kasthana occurs infrequently on the outer surface of the Knuckle guard which is still not identified with certainty as yet. Godesses Sri Devi and Patthini are the most likely candidates though it may be just a figure of “Nari-latha” or a figure of a Half woman half plant form. (This is possibly a matter for a separate thread of discussion) There are no cultural elements defined as Nagas in a Sinhala context that can be associated with motifs on the Kasthana. In rare occasions figures of similar deities may be found in the ricasso as well.

Note on images in post #56
The top Kasthana originating from a latter period workshop is highly influenced by British or late Dutch (?) design. it seem to not have too much Sinhala cultural discipline. The pommel figure still carries three ruffs signifying it is a Lion head. The other figures are strange as the faces are modeled as lion heads (similar to most late period degenerate Makara forms) but without the ruffs… they do not show the distinct short proboscis that make a Makara a true Makara.

The lower figure of a Kasthana from an earlier period; for me is my period of interest in Kasthana where the source of its origin, design and real function lie. Here the pommel figure is again clearly a lion of the early period design (not of European influence) with the distinct three ruffs. The terminal figure on the extended knuckle guard is a Serapendiya while the other four figures at the base of the hilt are all Makara.


Fernando,

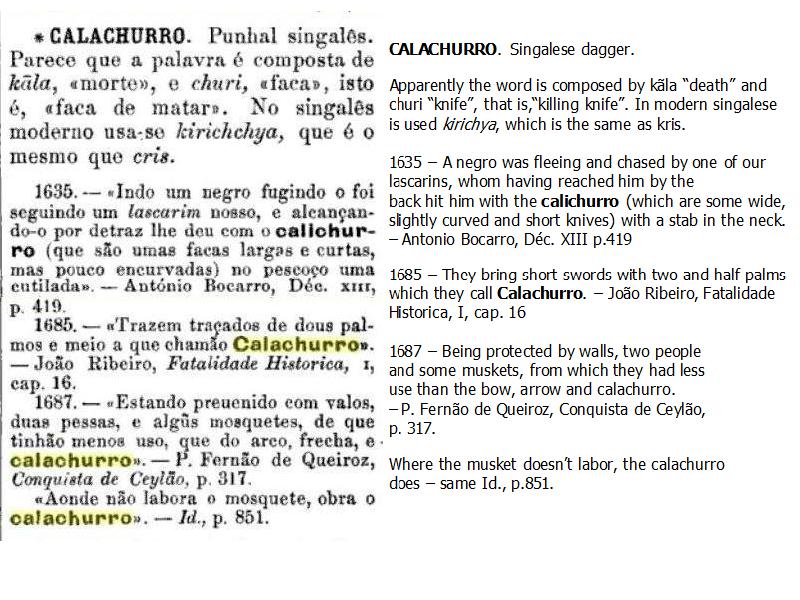

Always a pleasure to see your interesting posts. -thank you for sharing. In surviving traditional form there is a type of knuckle duster known as “Kala-kiringne” (I am not sure how to spell this proper; it’s a very nasal pronunciation akin to some other words with links to Portuguese descent”) The indirect association of “Kala” with death is sound- as found in “kala-thuwakku” (Cannon), “Kalama” (curses used in war) and “Kala-kiringne”etc.. Kirichchi as you say is a short stabbing dagger similar to a Kris. There is also another short dagger with a two finger grip which is sometimes attributed to Kala-kirichchi as well. I was not confident of its link to a short sword.

[Prasanna Weerakkody]

The Hatan kavya text “Seethawaka Hatana” written by a warrior who was supposed to have fought in the Great Battle of Mulleriyawela include a narrative in which he refers to at least 5 chiefs who fought with Kasthana swords by name. These include Chiefs Kuruppu (of Korathota), Athulpana, Kahandawa, Weragoda and Wijeyakoon. The Mulleriyawela Battle occurred in 1559 and the text is dated circa 1585. I think this conclusively establishes the existence of Kasthana swords to mid 16th century and conforms my earlier note on the gift of a Kasthana sword to the Arachchi of the Illangama fighters Korathota (see picture above post #62). I need to re-locate my copy of “Rajasinghe Hatana” text which may provide additional reference to confirm the record

This also establishes the fact that Kasthana was originally used in war.

[Jim McDougall]

I think the late Anthony North said it best in his article from 1975 on a late 15th century Italian sword. In this he noted that students of arms are often faced with the dilemma in studying apparantly unrecorded types of hilts, to either cast them 'into the everlasting limbo of ethnographic material' or even worse , to dismiss as a '19th c. pastiche'.

The great thing about this thread is that we are gaining great input with outstandingly presented material concerning the nature of the ornate decoration on the kastane and what these elements represent. Rather than becoming an 'argument' it is a soundly conditioned debate, and to all of our good fortunes, most constructive. I have learned more in the remarkable material presented here than in most of the time I have studied these swords, clearly inadequately, so I am extremely appreciative.

It seems that the hilt guard configuration in the Maghrebi sa'if/nimcha swords and Italian swords of the mid to late 15th century are remarkably similar and the North African swords likely influenced by North Itallian swords rather than Spanish, according to Mr. North. In his article he also notes the comparison made by Charles Buttin between the nimcha/saif and Ceylonese kastane, though implying only superficial resemblance toward the guard system.

It would appear that the ring finger guards or quillons extending downward on developing Italian hilts were designed to protect the forefinger which was extended over the guard in Italian swordplay technique. Italian weapons and armour fashion distinctly influenced Spanish styles, though it would seem the downward projecting 'wings' on Nasrid swords of Spain may be more aligned with downward projecting guards of Persian style. In the idea that these were influenced by Jinete swords of North Africa, it is important to note that the Jinete forces by the 15th century were often supplied by Italy in weapons.
It is of course difficult to say exactly which influence may have impacted the clearly vestigial quillon grouping of the kastane, but seems likely that it is derived from some European form. Even prior to the Portuguese presence, the Arabs had long been trading in Sinhala, and the Sinhalese were probably exposed to the influences, as noted concerning the guns.

Returning to the hilt, while the lion is of course represented in both Portuguese and Dutch heraldry and symbolism, it seems that as a regal totem it had been long established in carvings, monuments, architecture and iconography in Sinhala from ancient times. It is my impression that the pommel of a sword, particularly on a highly and symbolically decorated court sword, would be considered a paramount place. The regal stature of the lion would naturally be considered for such position, while the highly revered 'supporting' creatures such as makara, would be placed in 'supporting' elements and features of the hilt .

The only instance I can imagine for variants or interpretations of the well established lionhead on the kastane would be if such examples were created by a warrior caste who had taken the 'protective' stature of the makara as a symbolic totem. The makara is seen in iconography as protective and supportive, much as warriors would be, as many occur in temples etc. in 'guarding' positions.

As noted it seems like by the 17th-18th centuries the kastane had become a courtly weapon and non combative in the Sinhalese context. The advent of firearms and artillery had significantly altered warfare there, much as elsewhere, and the swords became essentially regalia, though there were undoubtedly less opulent combat versions.

It would seem that we have opened the case for the development of the kastane into somewhat separate fields; that of the hilt configuration and guard system;the classification of the creatures in the hilt elements; and the nature of the blades, whether native produced or foreign.
Also, the case of courtly kastane forms and concurrent fighting forms as well as possible variants in the nature of the hilt decoration. Could there possibly be a regal Sinhalese form with the lion symbolically represented as well as an alternate form with a warrior rather than regal identity, with the makara as its totem?

[Prasanna Weerakkody]

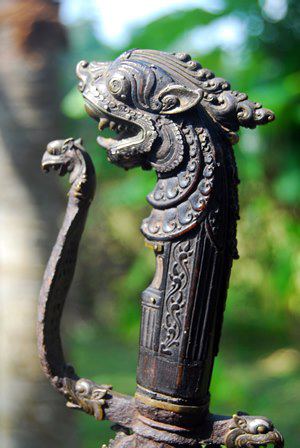

The following images were kindly sent to me by Mr. Ajantha Mahanth-arachchi who is a master of a Angam school of Korathotha

This sword is believed to be gifted by King Buwanekabahu VII of Kotte Kingdom (1521-1551) to the family of an ancillary prince(?) named Range’ Bandara. His descendants are still in possession of the Kasthana shown below as well as 2 Patisthana and one “Hella” spears, an ornate kris and a deed of a gift of land written on two sheets of copper issued under the name of the King.

In addition to the references I provided in posts # 62 and #87. this will provide additional evidence to support an earlier date for existence of Kasthana swords to mid 16th Century.

(Images of kasthana and Copper plates included)


Jim
Glad to have contributed in some measure to the understanding of the Kasthana. While being far from an expert on swords, my work as an Artist/painter specializing in re-construction of Ancient Sinhala lifestyle with a main focus on Ancient Sinhala warriors I have been involved in the study of Sinhala Art history and weapons and armor for a while. I hope I am more qualified in assessing material with a better footing on Sinhala culture and traditions and Traditional art practices. And hope we could take this discussion to a good conclusion.

My interest in Kasthana is to trace its origins, the sources, evolution and the time frame. and to better define the Kasthana with a understanding of the design elements. hence my perseverance to establish the true identity of the elements of the sword.

As I noted before I do not recollect seeing any Kasthana with pommels identifiable with Makara forms. If there is any specific candidates we should share them and assess them individually to set the record straight.

[Ibrahiim al Balooshi]

Originally Posted by Prasanna Weerakkody

The Hatan kavya text “Seethawaka Hatana” written by a warrior who was supposed to have fought in the Great Battle of Mulleriyawela include a narrative in which he refers to at least 5 chiefs who fought with Kasthana swords by name. These include Chiefs Kuruppu (of Korathota), Athulpana, Kahandawa, Weragoda and Wijeyakoon. The Mulleriyawela Battle occurred in 1559 and the text is dated circa 1585. I think this conclusively establishes the existence of Kasthana swords to mid 16th century and conforms my earlier note on the gift of a Kasthana sword to the Arachchi of the Illangama fighters Korathota (see picture above post #62). I need to re-locate my copy of “Rajasinghe Hatana” text which may provide additional reference to confirm the record

This also establishes the fact that Kasthana was originally used in war.

Salaams~ Mulleriyawela; It is an interesting battle (or battles). The website has pictures of Kastane in various places though I have no reference on the exact existence of the weapon. If you have the details it would certainly point to the weapon being home grown though the mid to late 1500s is still in zone for Portuguese co-operation is this swords production and design. Perhaps there is another clue to its origins.

Observing the style of fighting at Mulleriyawela which was derived from a traditional Sri Lankan martial art Angampora (Illangampora being the weapons style) They certainly have single edged short swords in their armoury amongst the many weapons traditionally used. By examining their ancient system it may be possible to see an earlier date on the Kastane. It would be very interesting to see in their records if and where the Kastane appears...See Notes below.

Regards,
Ibrahiim al Balooshi.


Notes; I have included a quote "Historical Evidences For Angam Kalawa;

MAHA WANSHAYA: This mentions about ANGAMPORA fighting which was used in the battle of king ELARA and KING DUTUGEMUNU.IT specially describes the fighting styles of GHOTAIMBARA AND THERAPUTHTHABAYA.

MAHA WANSHAYA: This mentions that king PARAKRAMABAHU enjoyed a martial art display done by his soldiers in 12th century.

CHULA WANSHAYA: This mentions that king 4 VIJAYABAHU enjoyed a fighting display of his army.

RAJAWALIYA: This mentions how KONAPPUBANDARA (1 WIMALADHARMASURIA) defeated a Portuguese swordsman by using ANGAMPORA.

MAGHA SALAKUNA KAWYA: This mentions about a fighting academy named as “AGE MADILLA” in Kandy in 15th century.

JUGAN HANDERSAN: This writer who served for Dutch in 1669 has mentioned about SRILANKAN fighters in his book on SRI LANKA.

DR.JOHN DEV: HE has mentioned about the “SUDALAIYA”CLAN and “MARUWALLIYA” CLAN who practiced ANGAMPORA.HE has specially mentioned about the deadly fights done in “URA LIDA” (Gladiator fighting arena)

H.C.P BELL: HE merely describes about a fighting clan which was started by a lady named “GALABODA KUMARIHAMI”.Then he reports about the battle of MULLERIYA".Unquote

[Amuk Murugul]

Hullo everybody!
As I don't seem to recall any example or mention of a Kastane with a WAVY Blade in this thread, I thought I'd post these quick snaps I took when taking advantage of a 'Window Of Opportunity'.(If already given/mentioned, then my sincere apologies and enjoy anyway.)
Best,
