At last ... a blunderbuss with a bronze barrel

[rickystl]

Hi Fernando

OK. Yes I now understand. I did not know this. Thanks. Is the safety on the lock in the photo the only safety ? Or does it act as a secondary device ?

Rick

[Philip]

Originally Posted by rickystl

Hi Fernando

OK. Yes I now understand. I did not know this. Thanks. Is the safety on the lock in the photo the only safety ? Or does it act as a secondary device ?

Rick

Hey Rick, thanks much for your explanation of dog catch history and introducing the sliding safety concept to add context to our discussion.

Here are the three different detached locks that I got last year in that German auction, A is the "three screw" hybrid, B is the so-called "half Portuguese, half French" style, and C is the "knot lock". Note that all three use the interior workings of the French flintlock. But only B has a tumbler with half- and full cock detents -- thoroughly French mechanicals albeit with Portuguese stylistic flourishes on the cock and frizzen spring design. A and C have one-notch tumblers, with the external brake serving as the only safety.

Given the Portuguese love of combining mechanical and stylistic features, I wouldn't be surprised if Nando or another forumite has a gun with one of the above lock types combining both a brake and a half-cock notch. A custom job for a sportsman who wanted a doubly safe lock on his gun. What I show here appear to be production items, likely made in Liège for export to Portugal's colonies.

[M ELEY]

This is an amazing weapon, Fernando and it has your name on it! Perhaps it was yours in a former life! Not a gun person, but of course I must point out (if no one else previously has done already) the possibility of this being a naval piece. Brass and bronze blunderbuss were popular with sailors for obvious reasons. Bronze was resistant to the brine air of a ship which rapidly corroded iron weapons (It is why solid brass-hilted swords so unpopular with infantrymen due to sweaty hands and the possibility of dropping it was ignored by naval forces). There is a direct correlation with brass muskets and blunderbuss used in sea service.

The bayonet on yours does in fact appear to have been removed contemporary with its usage. The three main places you see these blunderbuss are at sea, used as defense as coach guns/to discourage robbery in shops and as defense on fort walls (these types usually mounted on a swivel). I'm not familiar of this type of bronze weapon ever being carried by foot troops. If naval, it is very possible that the bayonet was removed for practicality. On a ship, the blunderbuss main purpose was to discourage boarders clambering over the side of a ship, blowing a hole through a charging gang of mutineers or some such. Not much time or real purpose to having a bayonet. In any case, just my thoughts and I think you have an amazing piece for your collection!

[fernando]

Originally Posted by rickystl

...OK. Yes I now understand. I did not know this. Thanks. Is the safety on the lock in the photo the only safety ? Or does it act as a secondary device ?...

No Rick; primary ... and sole !

[fernando]

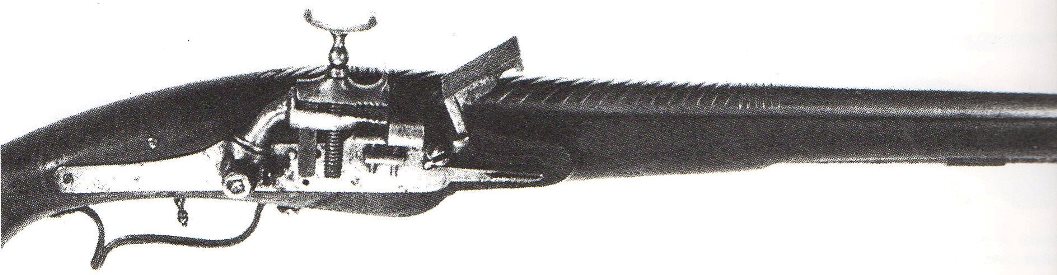

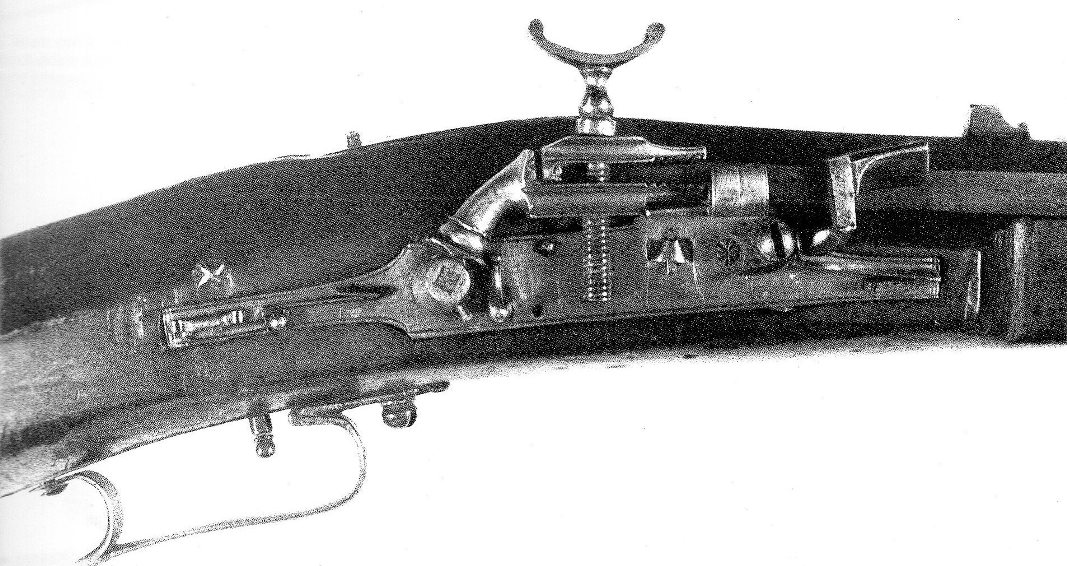

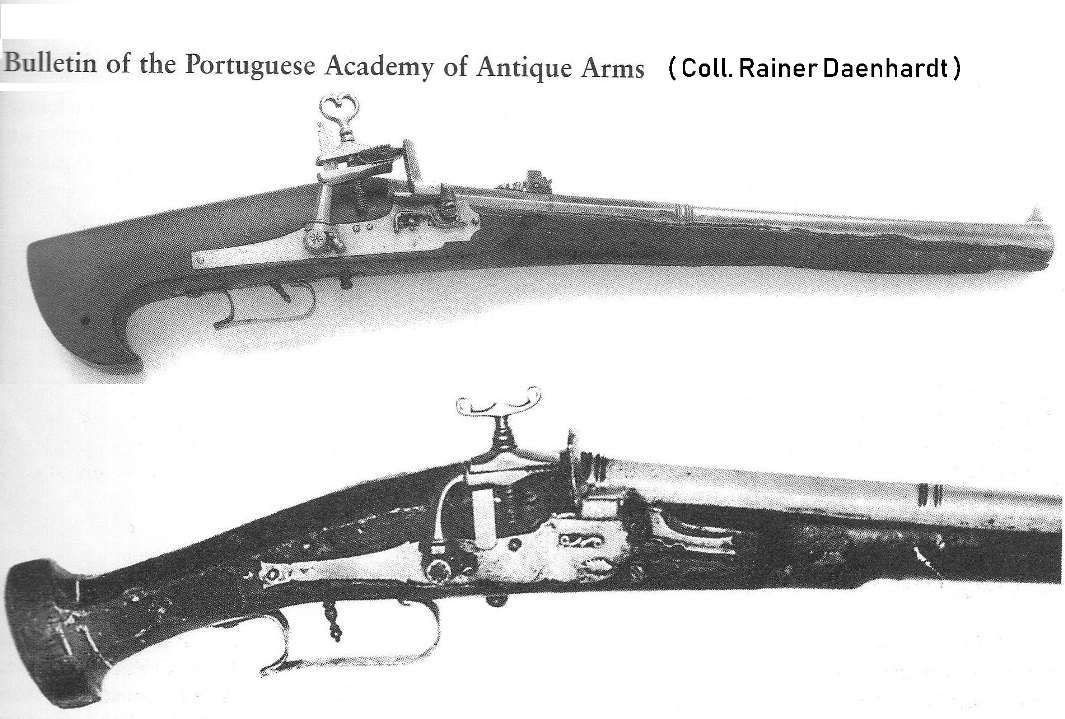

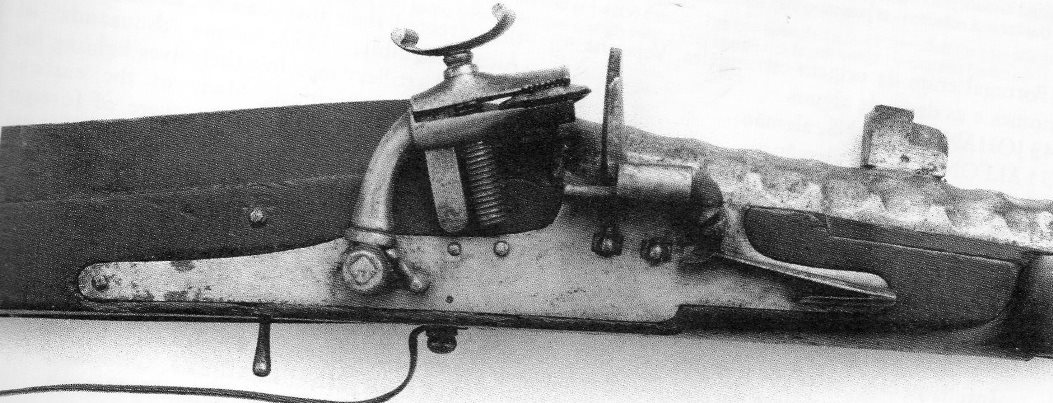

See how early this safety brake system was implemented, used in earliest known "pistols" to clavinas (petronels) from the second, third and last quarters XVI to first quarter XVII centuries, in the various types of lock.
(not per quoted order)

.
