Old 6th June 2012, 09:15 PM   #1
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,231
Default Rarest Early Ammunition Accouterments: MATCHCORD/SLOW MATCH

To my knowledge, nobody has cared to do close research in this topic so far.

Matchcord (Luntenstrick), also called slow match or fuse, must have been used for igniting firearms from almost the very beginning. In the earliest two pictorial representations of a gun, the Christ Church and the Holkham manuscripts by Walter de Milemete of 1326/7 (top four attachments) we cannot clearly discern what substance is actually used to ignite the gun; at least in the Christ Church ms it seems to be a somewhat longer and thicker substance much resembling a piece of match clamped in a linstock:

http://www.vikingsword.com/vb/showt...walter+milemete

Anyway, matchcord seems to have come into use in the course of the 14th century. For small guns, it is recorded to have been employed until the military end of the matchlock era, which was ca. the 1730's. At that time we find the latest records and drill instructions including service employment of matchlock muskets.

Big pieces, i.e. pieces of artillery/cannon, had of course to be lit by either igniting irons (ca. 14th to 18th c.) or linstocks holding match from the 14th c. until the end of the muzzle-loading era, the mid-19th century.

Slow match basically consisted of three main strands of fibrous hemp including a considerable amount of porous cortex, twisted and soaked in saltpeter/nitrate (Salpeter/Bleizucker). As this chemical solution is volatile it can usuallly no longer be proven in existing pieces of matchcord. However, according to experiments by the author, unsoaked hemp will also smolder constantly to an extent where it can be stopped safely only be either chopping off the glowing end or dipping it into water.

From all we know, matchcord, just like saltpeter (animal urine), was produced by the rural population and purchased by the armories measured by weight. Of course, the dimensions measured up to literally tons. They were handed out to the troops in both larger and smaller bundles.

Surviving large bundles today are extremely few, known only in the armories in both Churburg, Sluderno/South Tyrol, and the Fortress Armory of Coburg/Franconia. A great number of them is known to have been kept in the fortress of Hohenwerfen near Salzburg/Austria but was sold together with the complete contents at auction in New York in 1927.
The author was given the chance to closely inspect the bundles preserved at the Fortress Museum (Veste) in Coburg. They measure about 80 cm length in average, each consisting of a great number of loops adding up to a total length of ca. 35-40 m per bundle. Small bundles carried by both musketeers and calivermen only seem to be preserved in the Vienna Arsenal (Heeresgeschichtliches Museum Wien), plus another in the author's collection; they measure approximately two to three meters in length, laid in small loops.
Such small bundles are depicted to be carried by both musketeers and calivermen as 'man's portion' (Mannportion) by Jacob de Gheyn in his famous manual Wapenhandelinghe in 1607.

The author has been assured several times by the leading experts of both museums and international auction houses that, in all probability, he posseses the largest amount of original matchcord in private hands recorded worldwide, including two bundles of ca. 5 m length each, both from the Emden armory, a small Austrian bundle/man's portion of ca. 2,50 m (as mentioned), plus a great number of various lengths from various provenances, and ranging from the 15th/16th to the 17th/18th century, including some considerable lengths of the thickest, rarest and earliest type of matchcord known: from the armory of Schloss Fronsberg, Styria/Austria, sold at auction by Tom Del Mar, London, December 15, 2004.

It is generally assumed that soaked matchcord will consume ca. 60 to 80 cm an hour when smoldering.

The average thickness/diameter of surviving samples of matchcord varies but, consistent both with depictions in period artwork and the Fronsberg samples, seems to have been as thick as ca. 2 cm in earliest times up to the first half of the 16th century, narrowing down to ca. 10-15 mm by the mid-16th century.

It should be noted that in the earliest times of 'matchlock' mechanisms, from ca. 1410 to ca. 1530, matchcord was way too thick to fit the jaws of the rather tiny early matchlock serpentines of the few surviving Late-Gothic and Early-Renaissance arquebuses. Thus it is depicted to be carried glowing by the arquebusier, either held in one hand or wound around the left arm, in pieces of period artwork from ca. 1480 (Diebold Schilling, The Berne Chronicle) to the 1540's (paintings and tapestries of the Battle of Pavia, 1525, and cardboard watercolors of the Tunis Campaign by Charles V and tapestries woven after these cardboards).

In those times, slow match was only used to ignite a small piece of tinder fixed in the jaws of the serpentine of the arquebus: thus, as the aforementioned instances of period artwork clearly depict, and as I have stated various times before, the actual ignition was achieved by glowing tinder and these earliest mechanisms should consequently be called tinderlocks instead of 'matchlocks'.

It is true that tinder stayed in use for both reserve tinder holders on military types of combined wheellock and 'matchlock' mechanisms until at least the early 17th century, and for traditional types of snap tinderlocks for target shooting way up to the mid-18th century. On the whole however, surviving specimens of arquebuses prove that by ca. the mid-16th century, the serpentines - tender and tiny though they still were - could be opened wide enough by turning the wingnuts to receive, and hold, an average thickness of matchcord, which as I have stated had been sufficiently reduced in diameter by that time.

Please see also

http://www.vikingsword.com/vb/showt...0338#post140338


ATTACHMENTS, top to bottom:

- Walter de Milemete, Christ Church ms, 1326/7 (4 attachments)

- Walter de Milemete, Holkham ms, 1326 (1 att.)

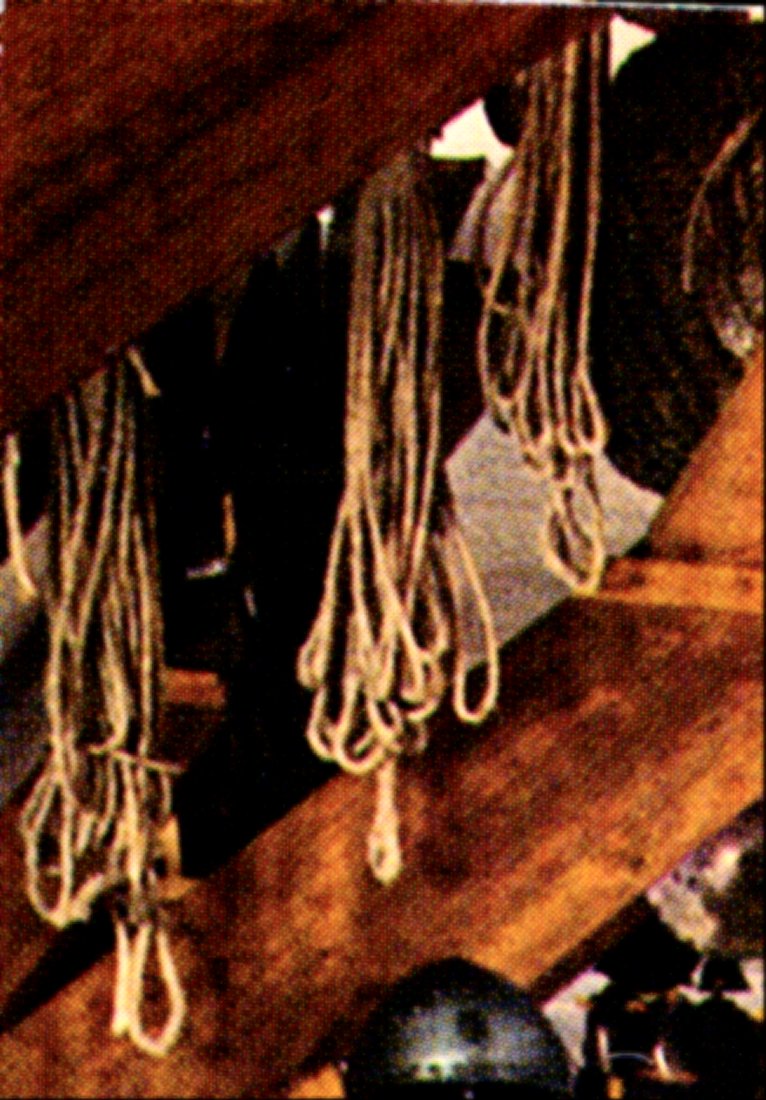

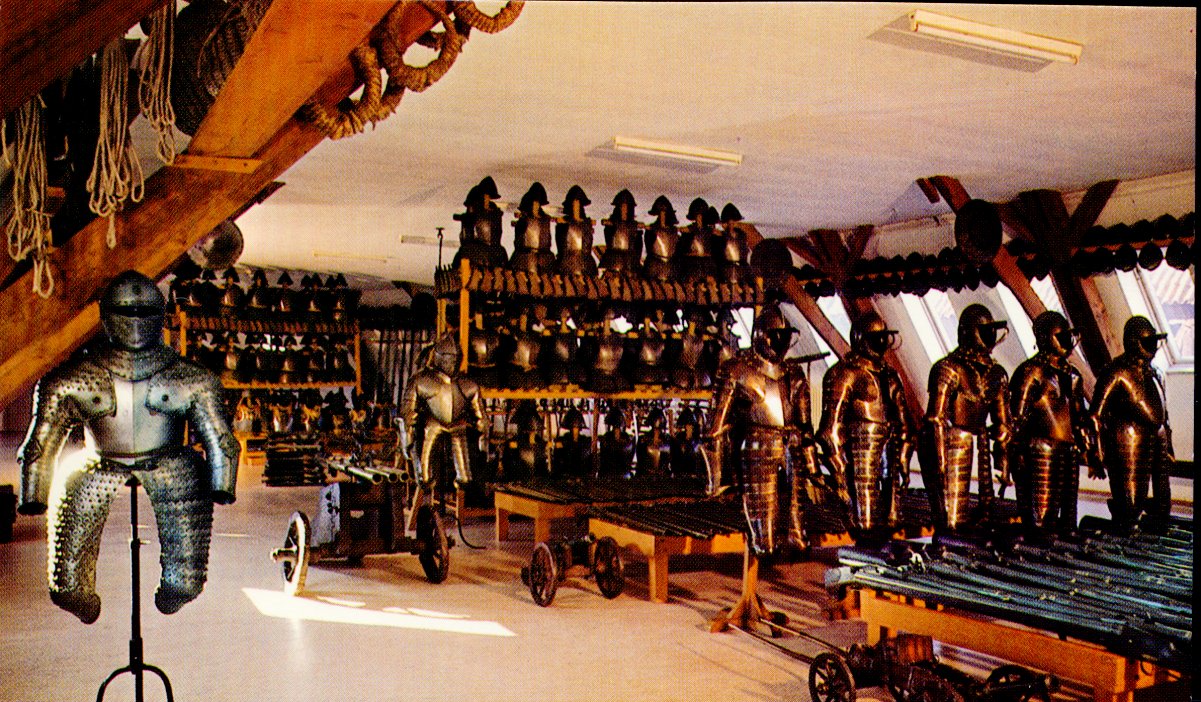

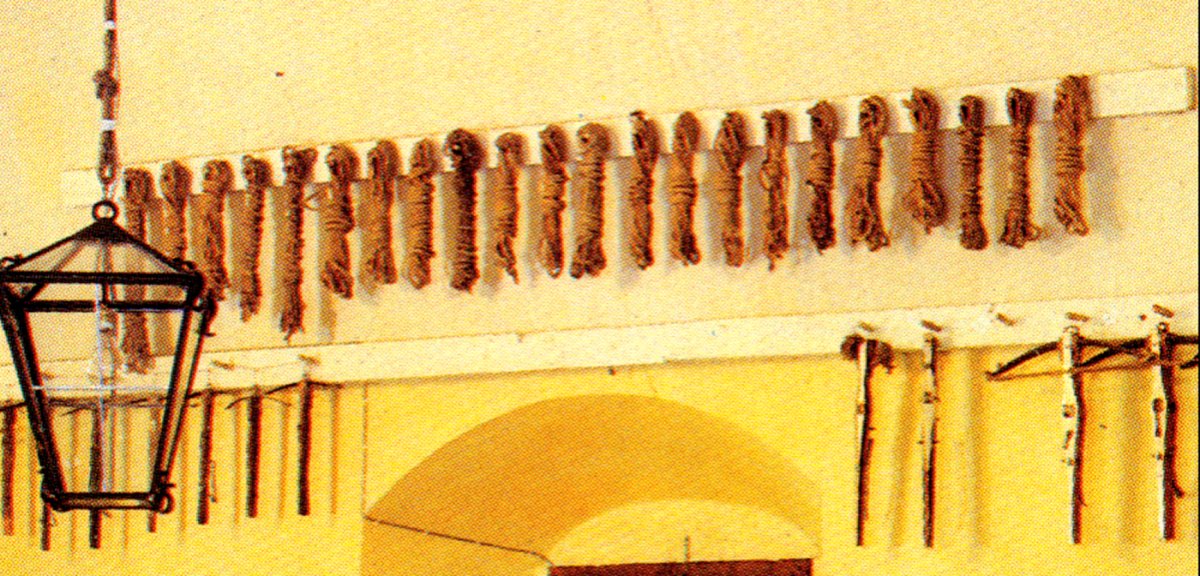

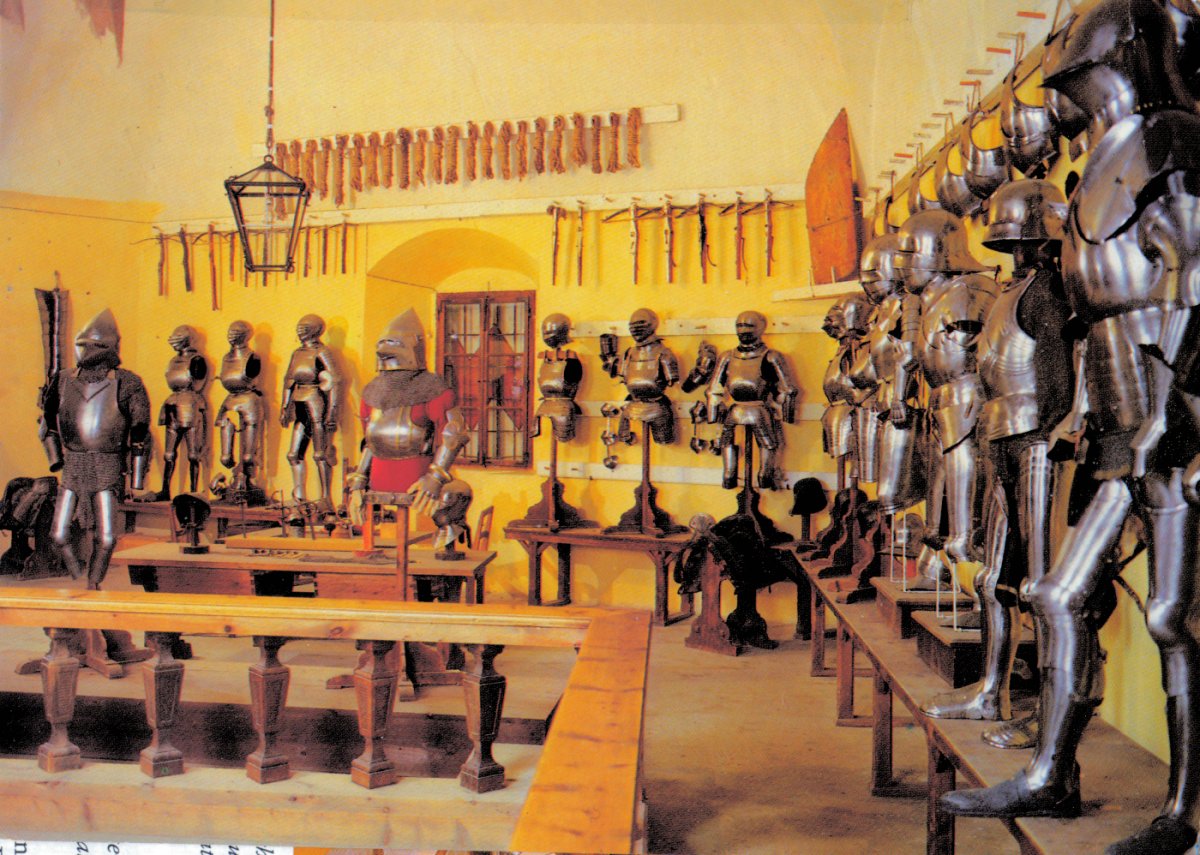

- bundles of matchcord in the Churburg armory (2 atts.)

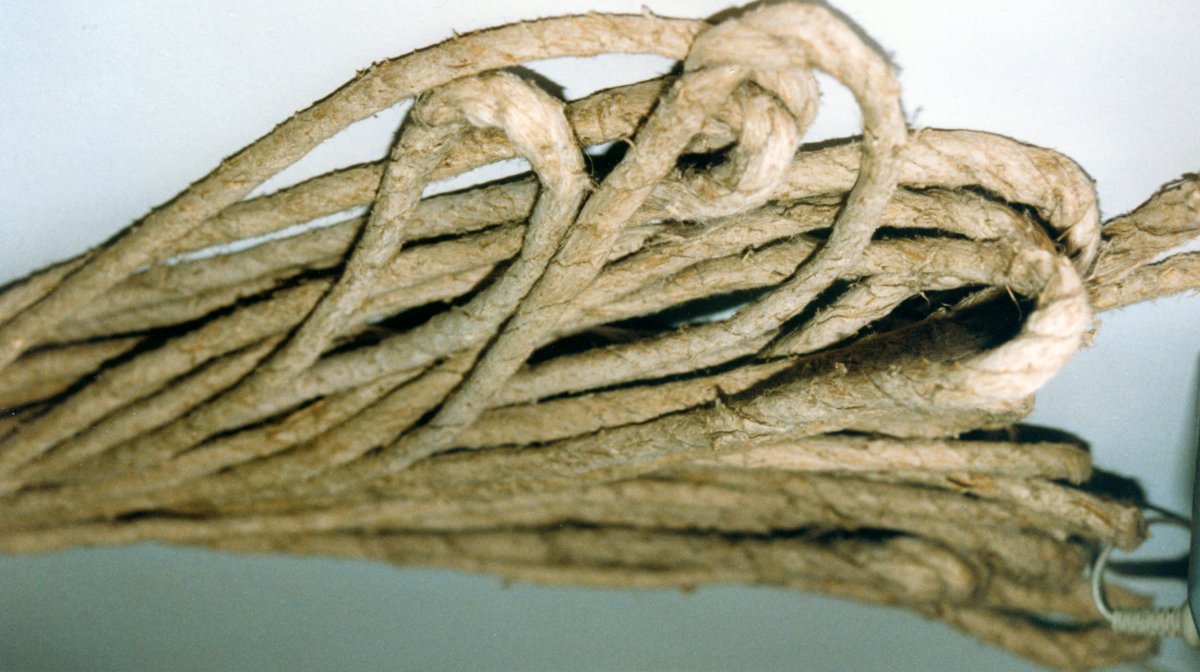

- bundles of matchcord in the Veste Coburg and close ups, of rather dense and hard consistency (6 atts.)




Best,
Michael
Attached Images


Last edited by Matchlock : 7th June 2012 at 01:43 PM.
Matchlock is online now   Reply With Quote
Old 7th June 2012, 01:34 AM   #2
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,231
Default

Top to bottom:

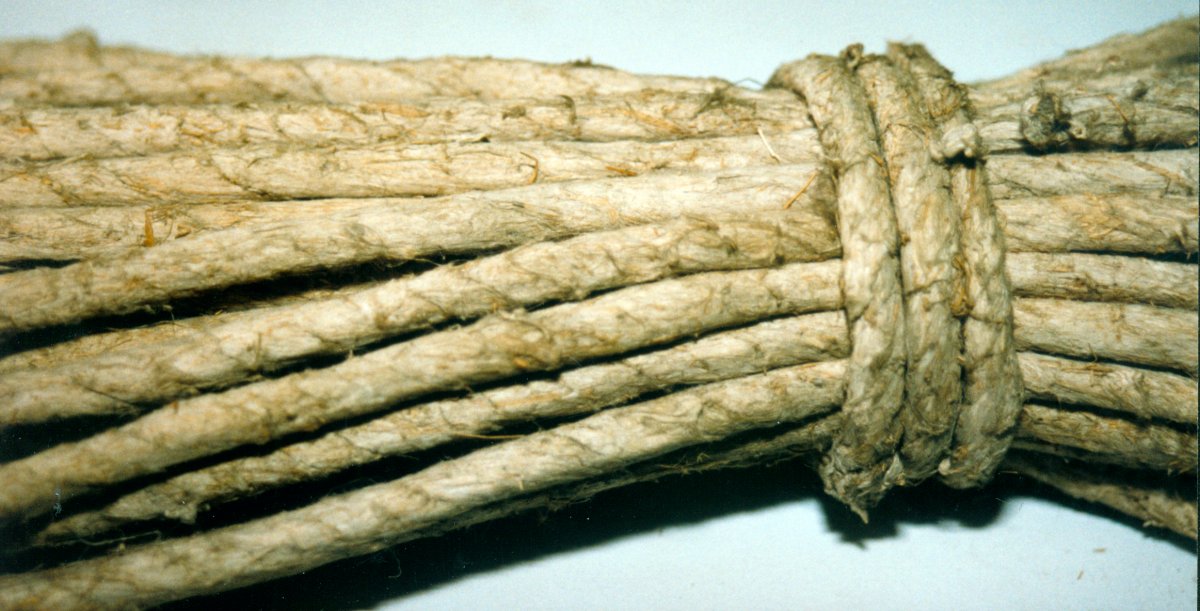

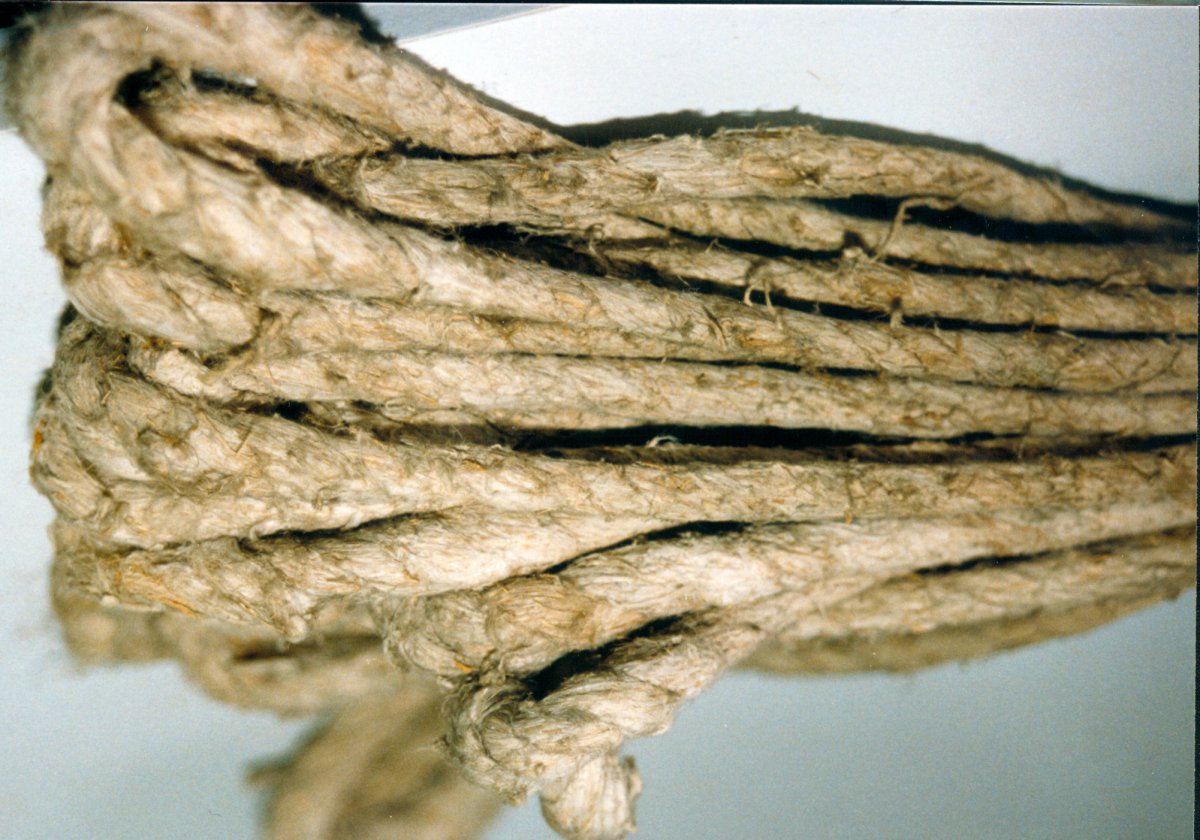

- close up of a bundle of matchcord in the Veste Coburg collecctions (1)

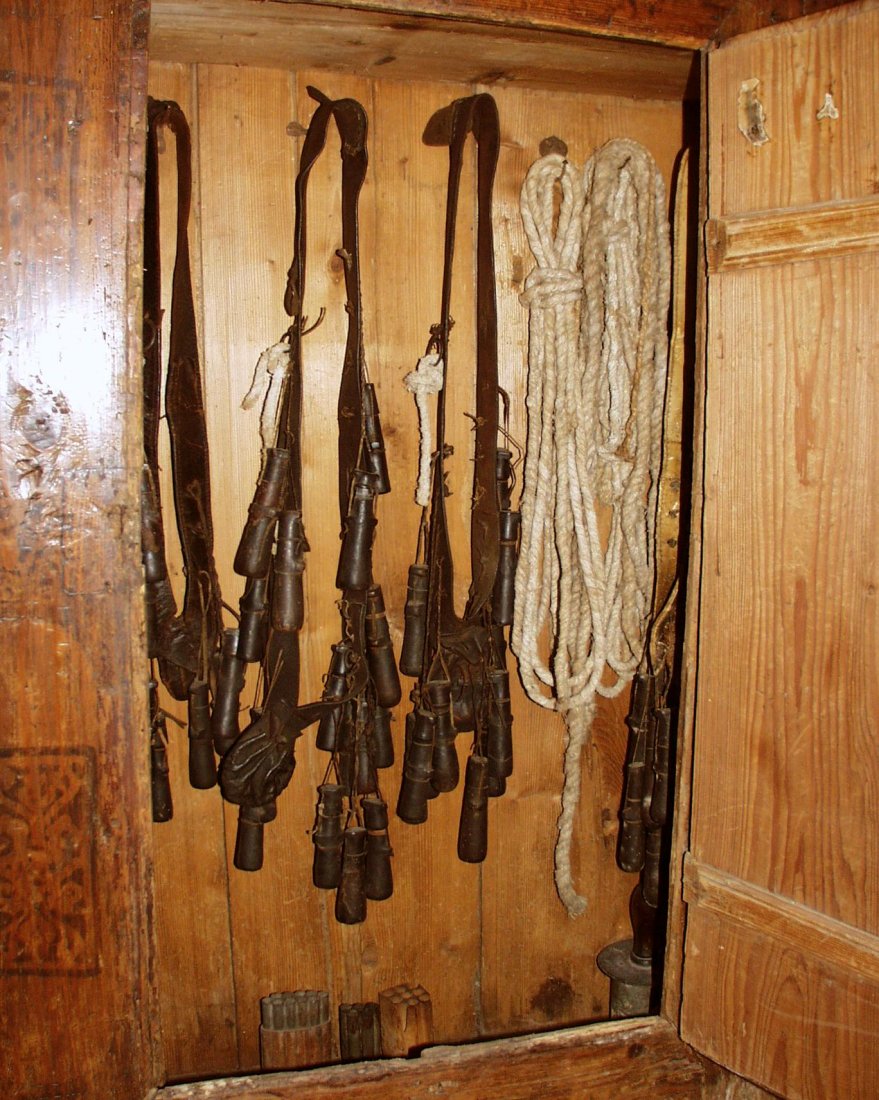

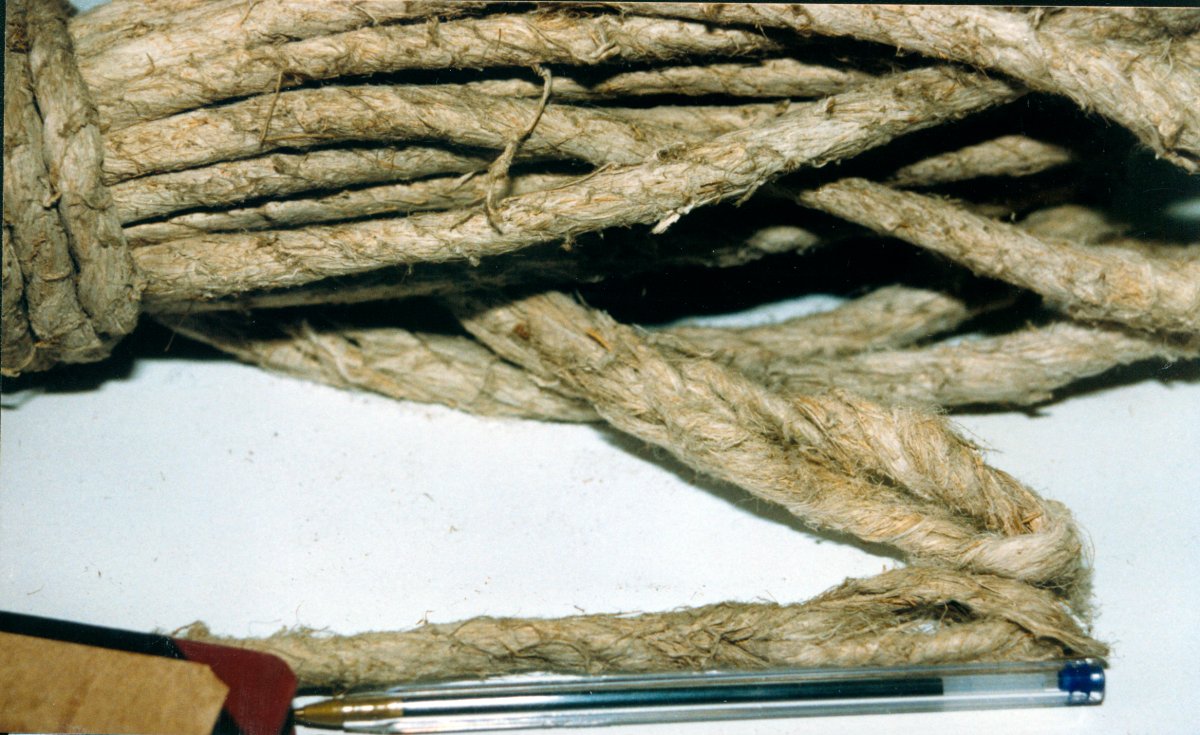

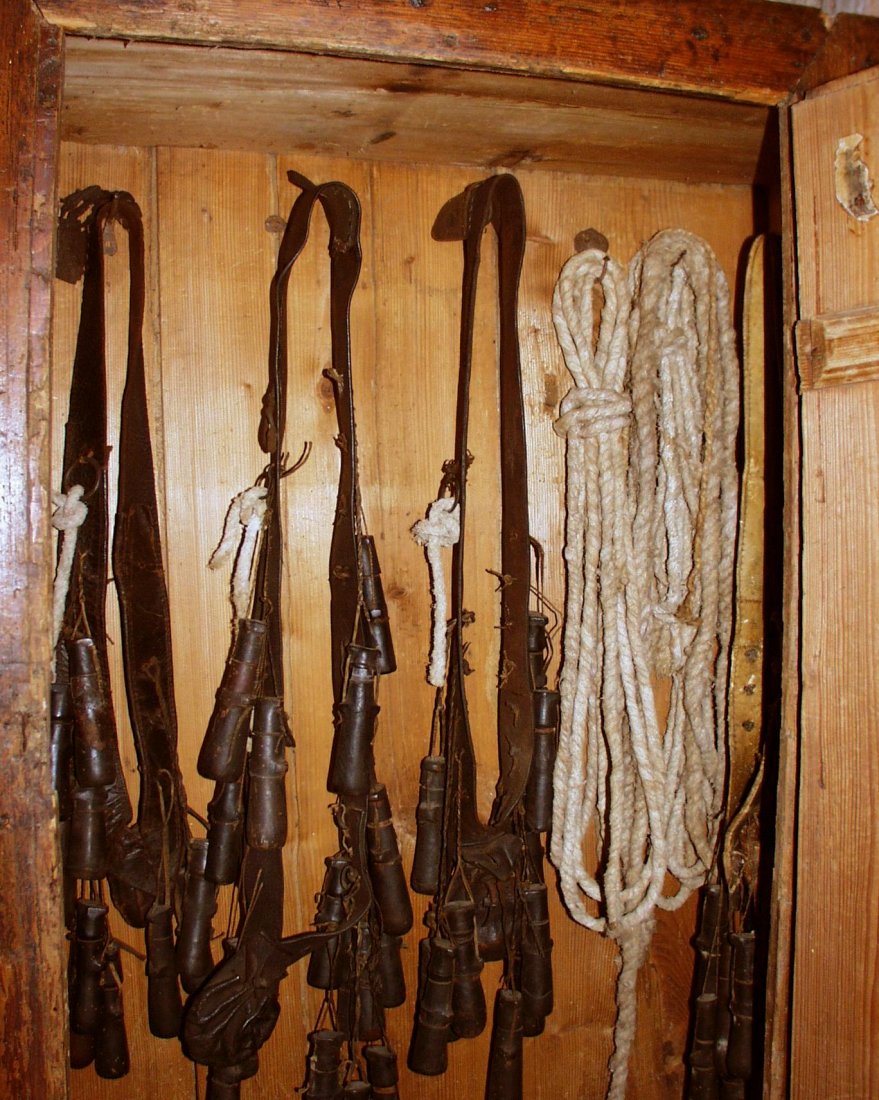

- bundles of matchcord, and early 17th c. musketeers's bandoliers from the Emden Armory, each with an extra length of matchcord; author's colln. (2)

- thick type of earliest matchcord carrried in the hand: Diebold Schilling, Berne Chronicle, 1483 (2)

- thick matchcord for igniting a piece of tinder, carried wound around the arm or the arquebus: tapestries of the Battle of Pavia, 1525, Museo di Capodimonte, Naples (2)

- matchcord wound around a tinderlock arquebus, the serpentine way too tiny and delicate to actually receive the match: tapestry of Charles V's Conquest of Tunis, 1535, Madrid (1)

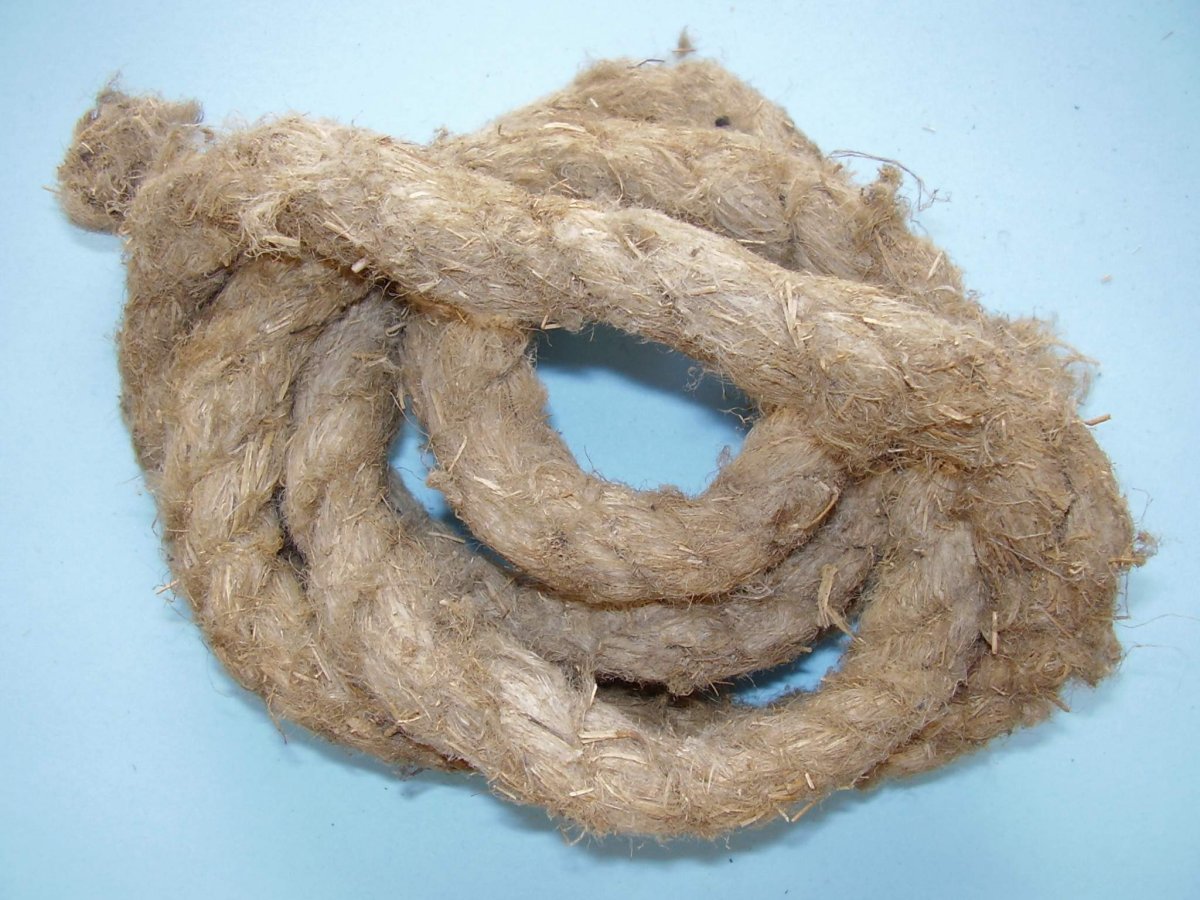

- earliest known surviving, thick type of matchcord, of rather soft consistency, 15th/16th c.; from Schloss Fronsberg, Styria/Austria; author's colln. (1)
Attached Images


Last edited by Matchlock : 7th June 2012 at 10:00 PM.
Matchlock is online now   Reply With Quote
Old 7th June 2012, 01:38 PM   #3
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,231

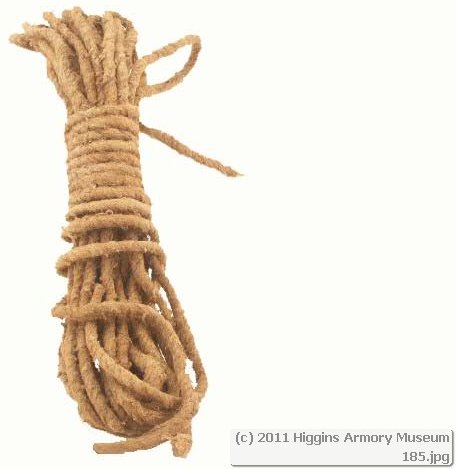

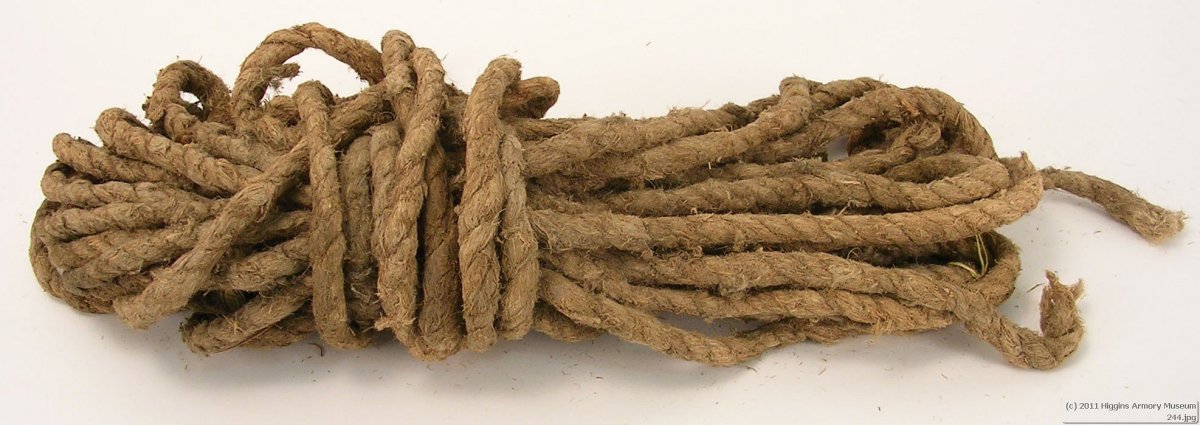

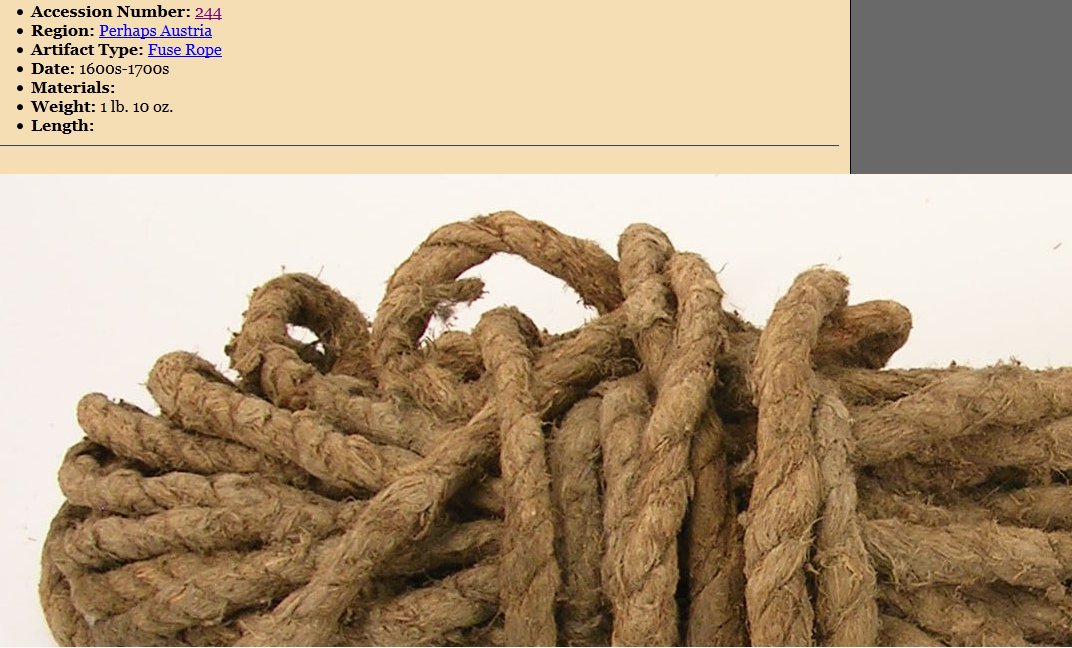

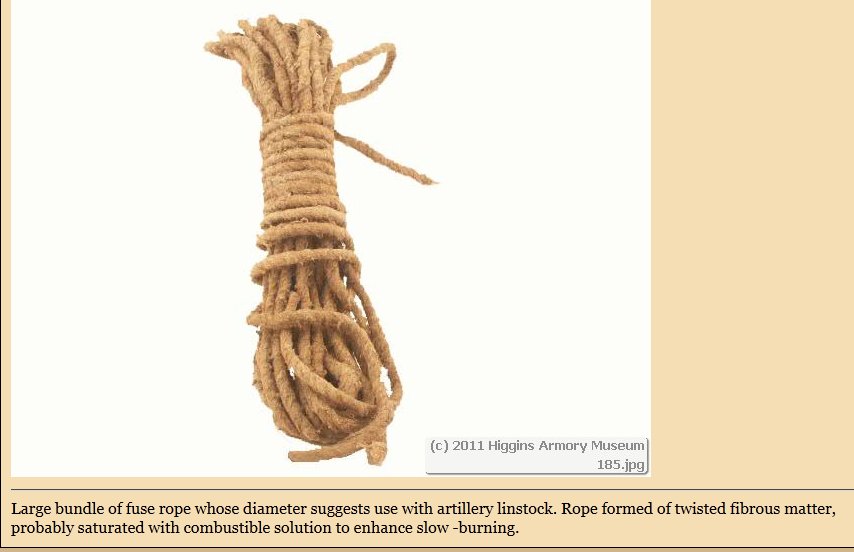

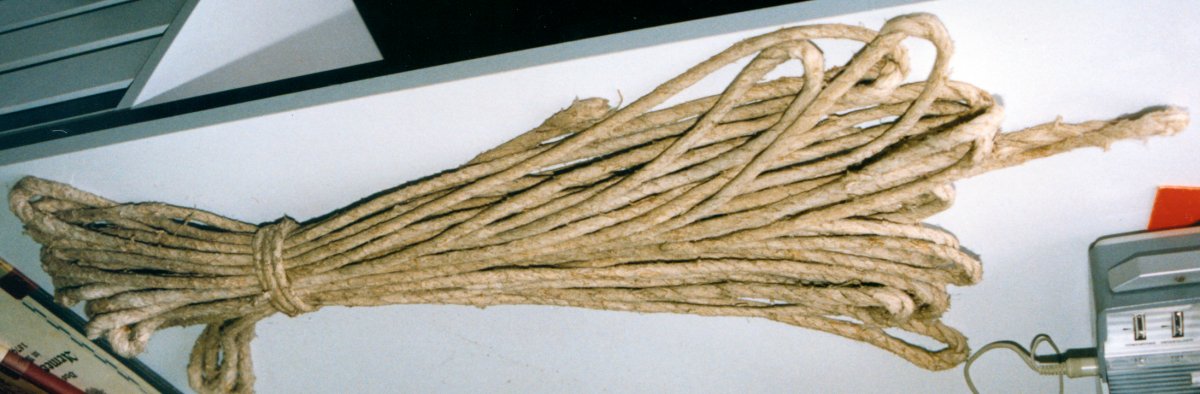

Default Several bundles of Austrian matchcord in the Higgins Armory Museum Worcester

They were acquired from the sale of the complete contents of the Schloss Hohenwerfen Armory near Salzburg/Austria at Anderson Galleries, New York, March 1 to 5, 1927:
The Great Historical Collection of Arms and Armour - the entire contents of the Armoury ... H.I.&R.H. Archduke Eugen, F.M., lots 201-206, 277-282, 705-710, 940-945, 957-962; two 'fuse-rope bundles' were included in each lot!
A copy of the original 1927 auction catalog is in the author's library.

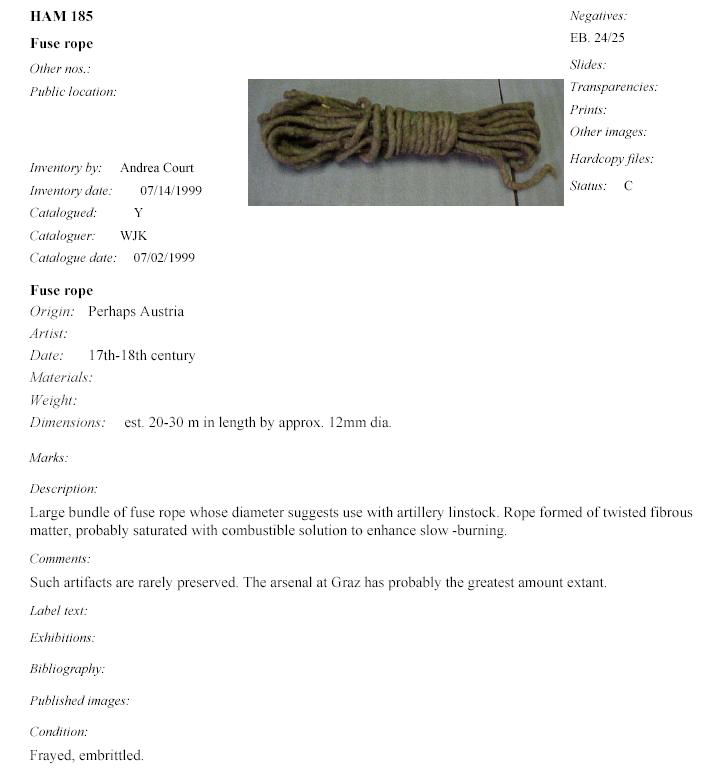

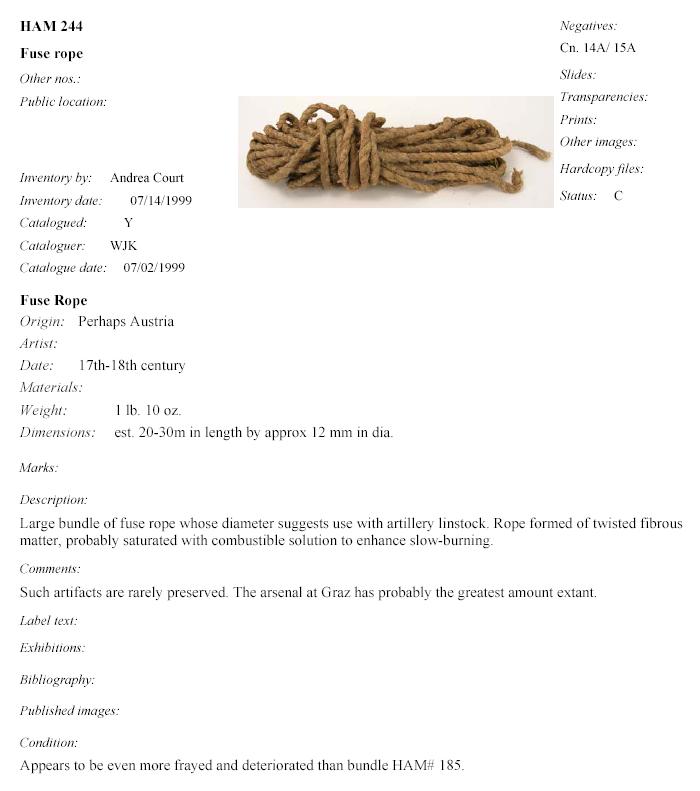

The Higgins inventory gives an average length of 'ca. 20-30 m' per bundle, at an diameter of 'approxim. 12 mm' and a weight of '1 lb. 10 oz.'

It is also stated that their diameter of 12 mm 'suggests use with artillery linstock'. This statement has been contradicted above by the author.
It is all the less understandable considering the fact that the Higgins also acquired a number of matchlock muskets from that same sale; I would suggest putting a length of matchcord in their serpentines/match holders - I guarantee it will fit perfectly as soon as the wingnut has been adjusted!

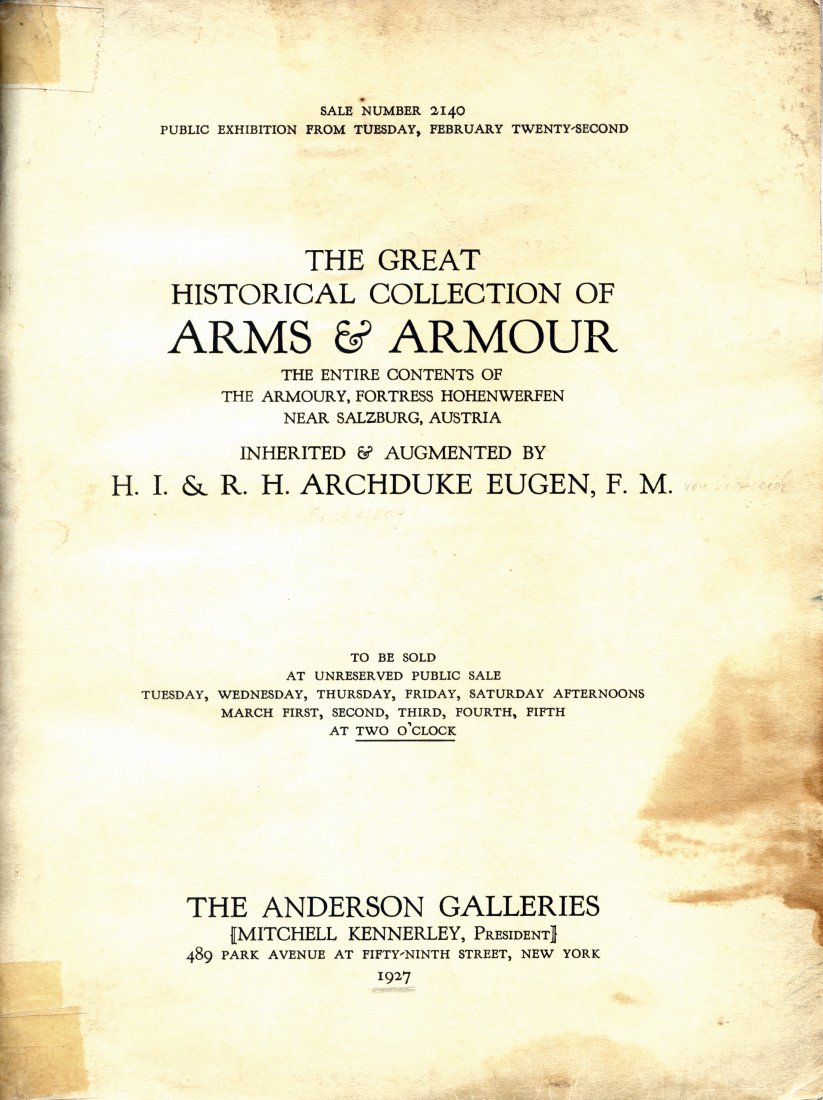

The cover page of the 1927 sales catalog and a view of Hohenwerfen Castle are attached at bottom.



m
Attached Images


Last edited by Matchlock : 7th June 2012 at 09:54 PM.
Matchlock is online now   Reply With Quote
Old 8th June 2012, 05:38 PM   #4
fernando
Lead Moderator European Armoury

fernando's Avatar

Join Date: Dec 2004
Location: Portugal
Posts: 4,578
Thumbs up

Dear Michl,
It is undeniable that it takes the deepest dedication to prepare and compile information of such extreme quality.
A great added value for members (and lurkers ) perusal and for the chest of the forum archives.
Thanks a lot for sharing.
Having attended this lecture, i now feel more than prepared to obtain a couple inches of matchcord, an obliging presence in a collection

P.S.
Sorry to divert but, the sight of the Hohenwerfen Castle is breathtaking .
fernando is offline   Reply With Quote
Old 9th June 2012, 08:04 PM   #5
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,231
Default

Dear 'Nando,


Your excellently chosen wording and compliments made me blush.

Thank you so much, it really means a lot to me!


Yes, I guess dedication is exactly the word for what I have been trying to achieve and convey to others.


And: I too like the imposing view of Hohenwerfen Castle and posted it for the sake of it.


Best,
Michl
Matchlock is online now   Reply With Quote
Old 25th September 2012, 05:08 PM   #6
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,231

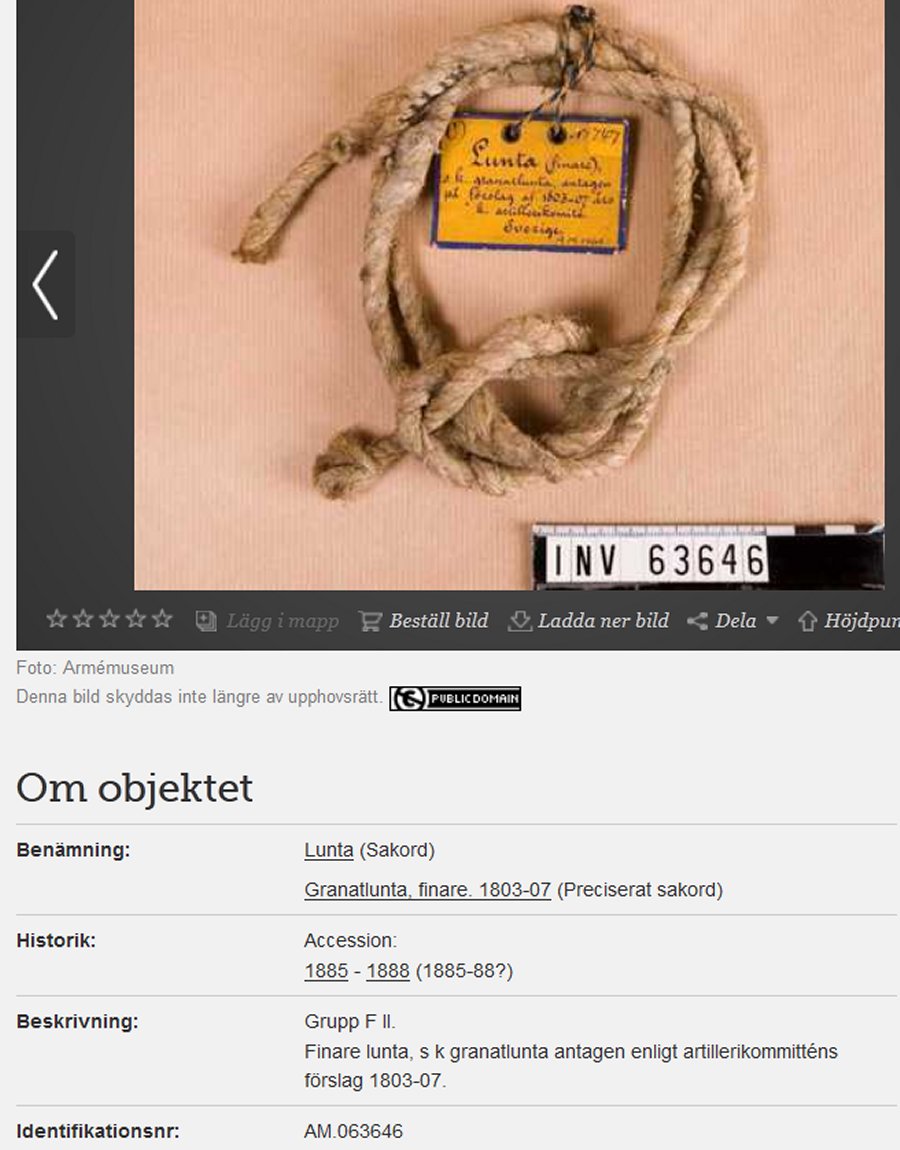

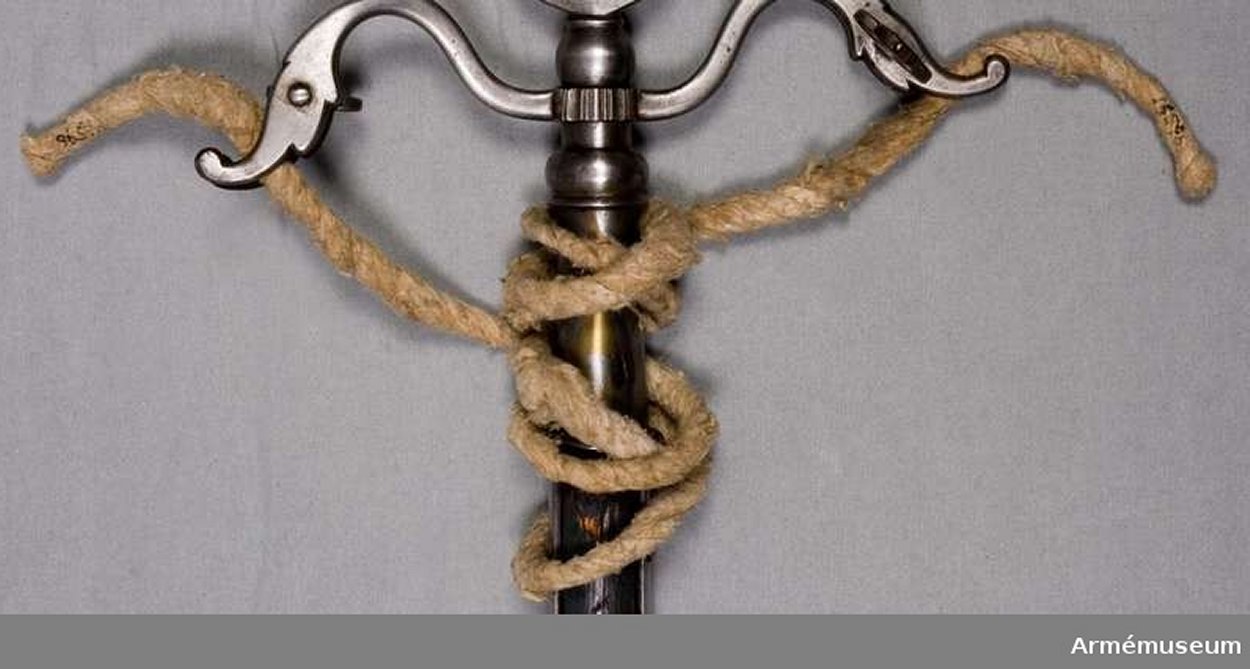

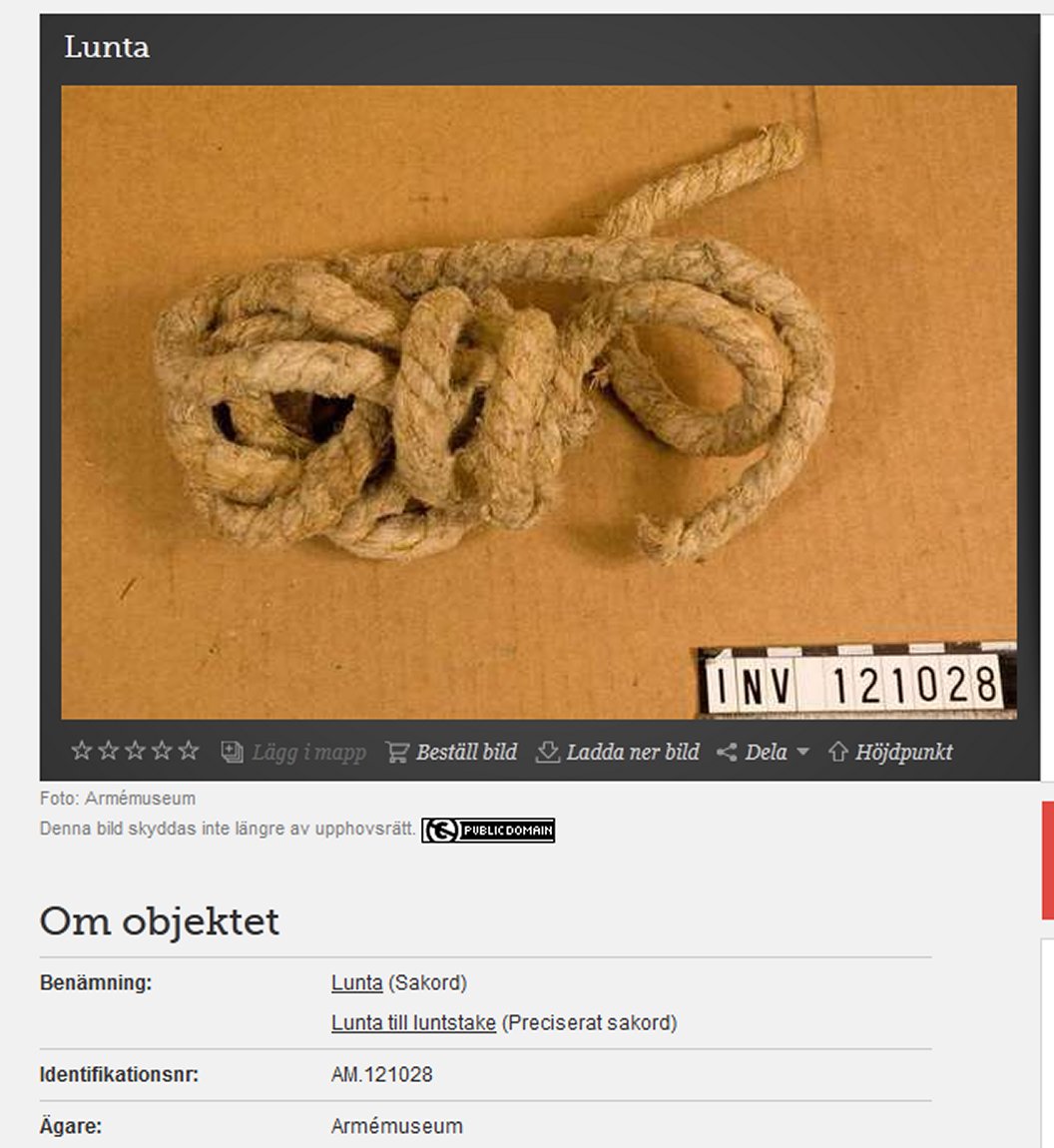

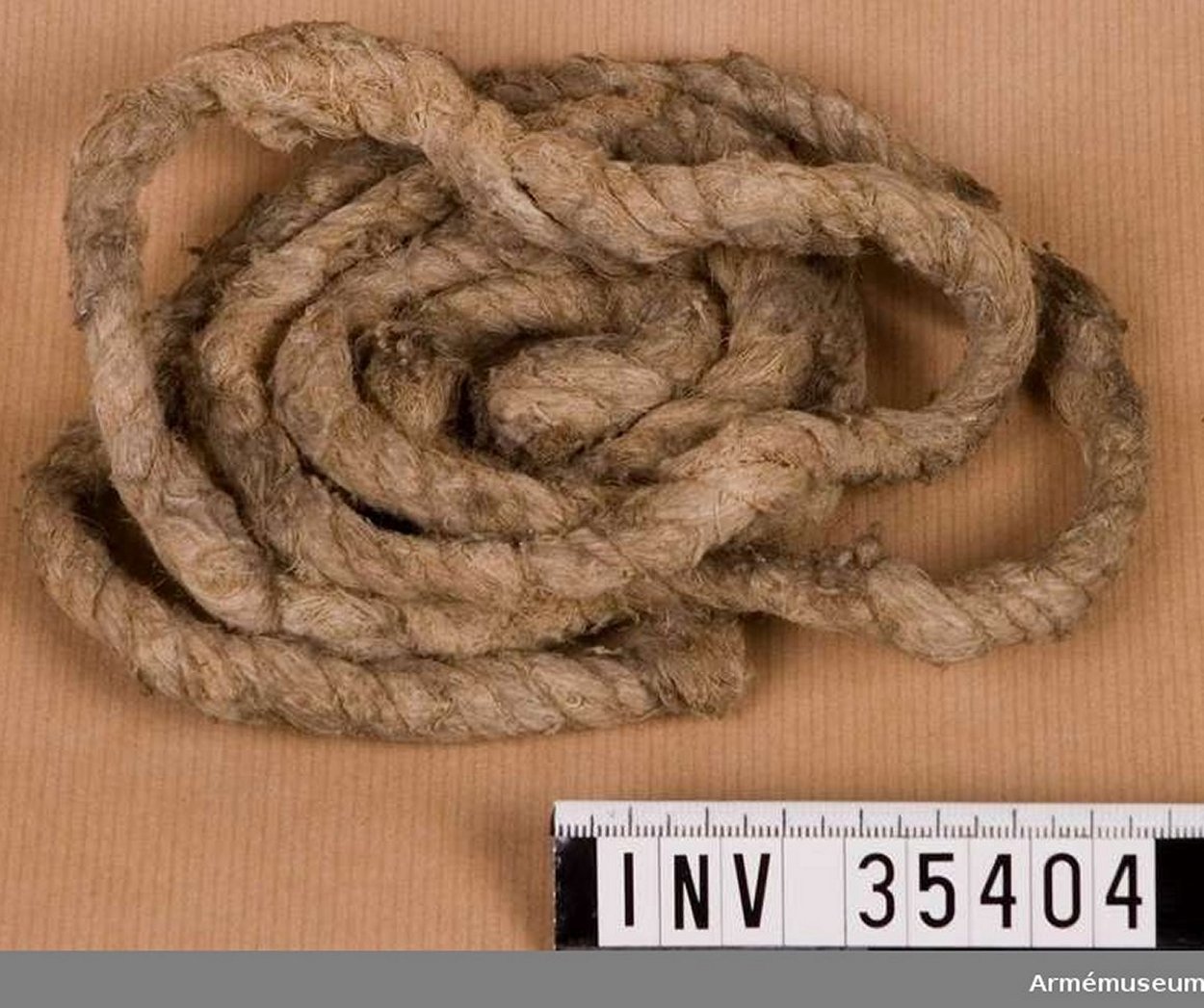

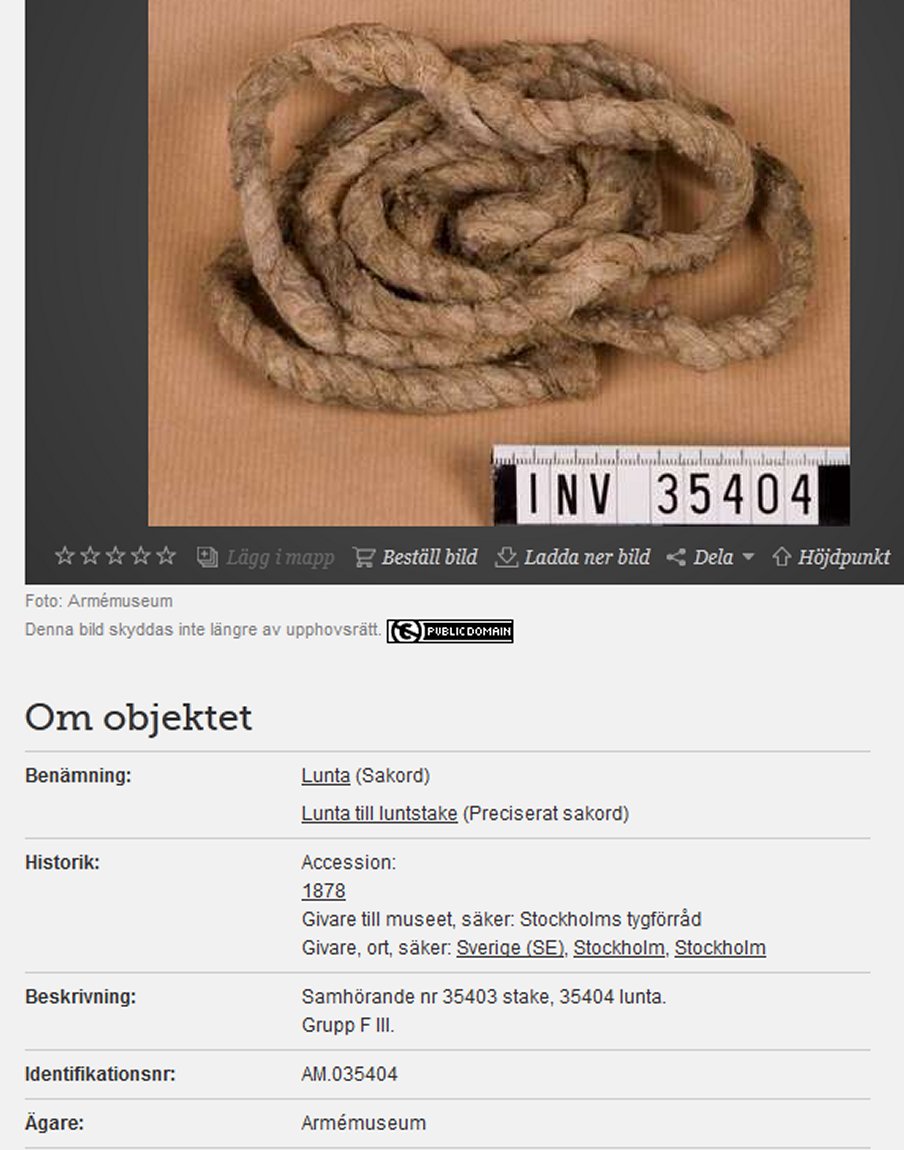

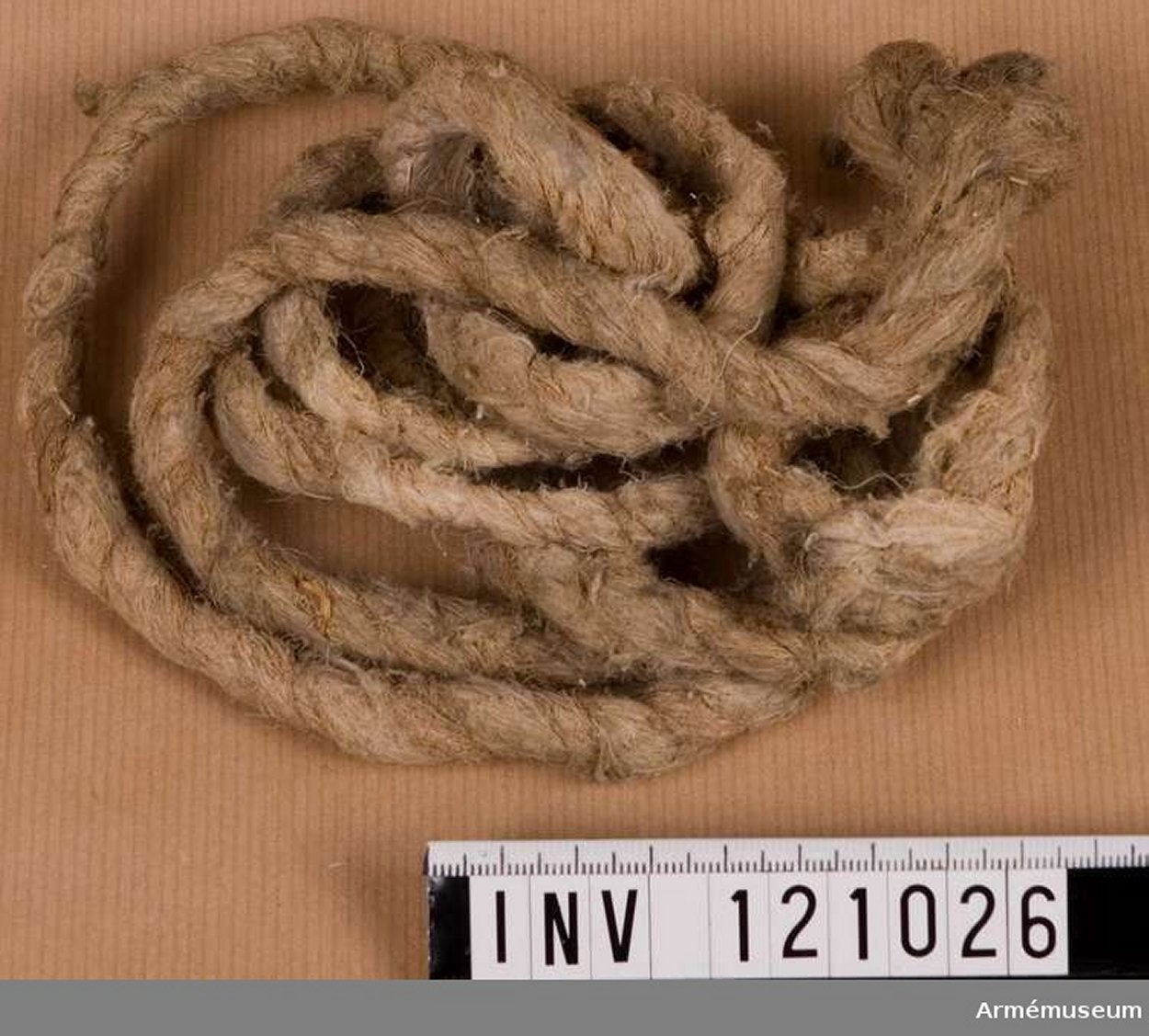

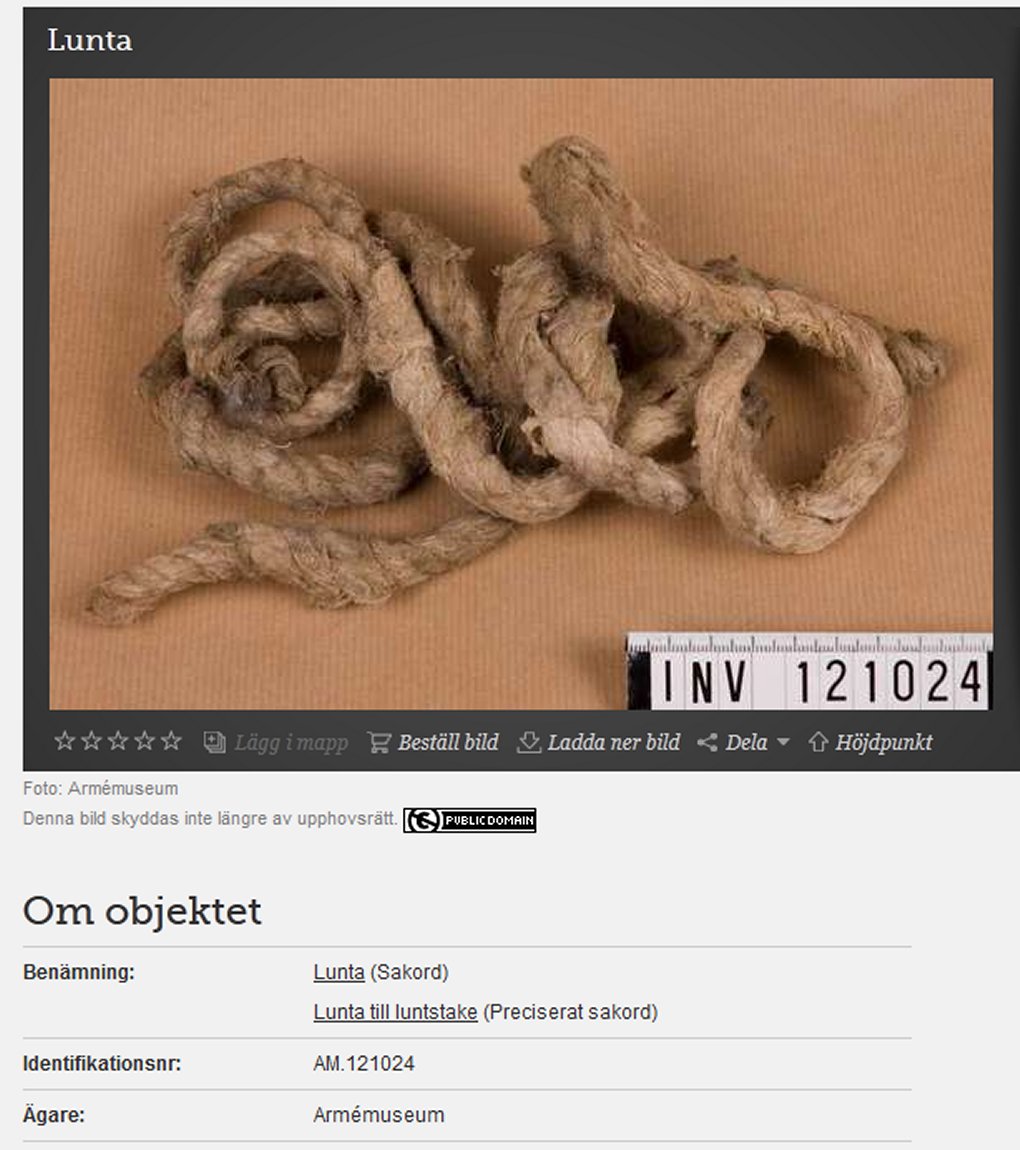

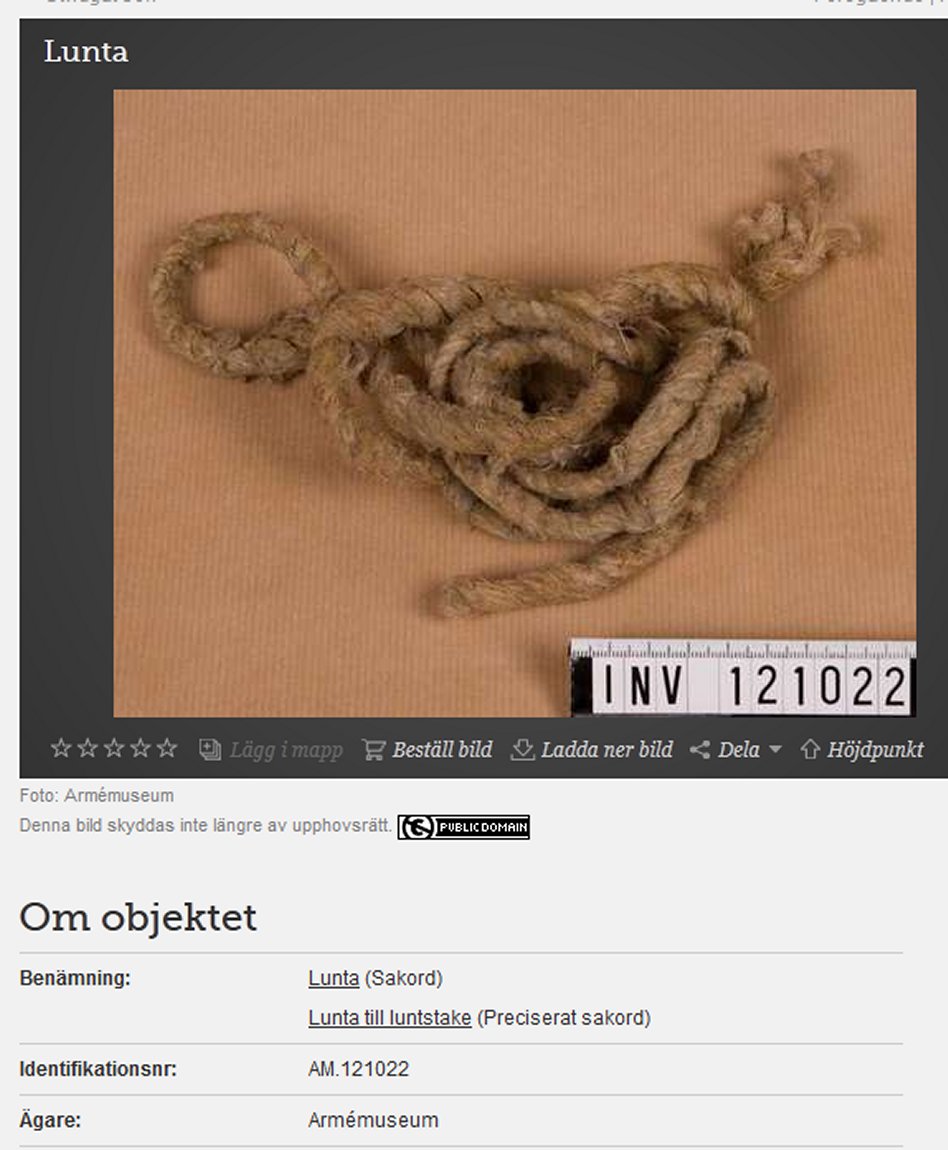

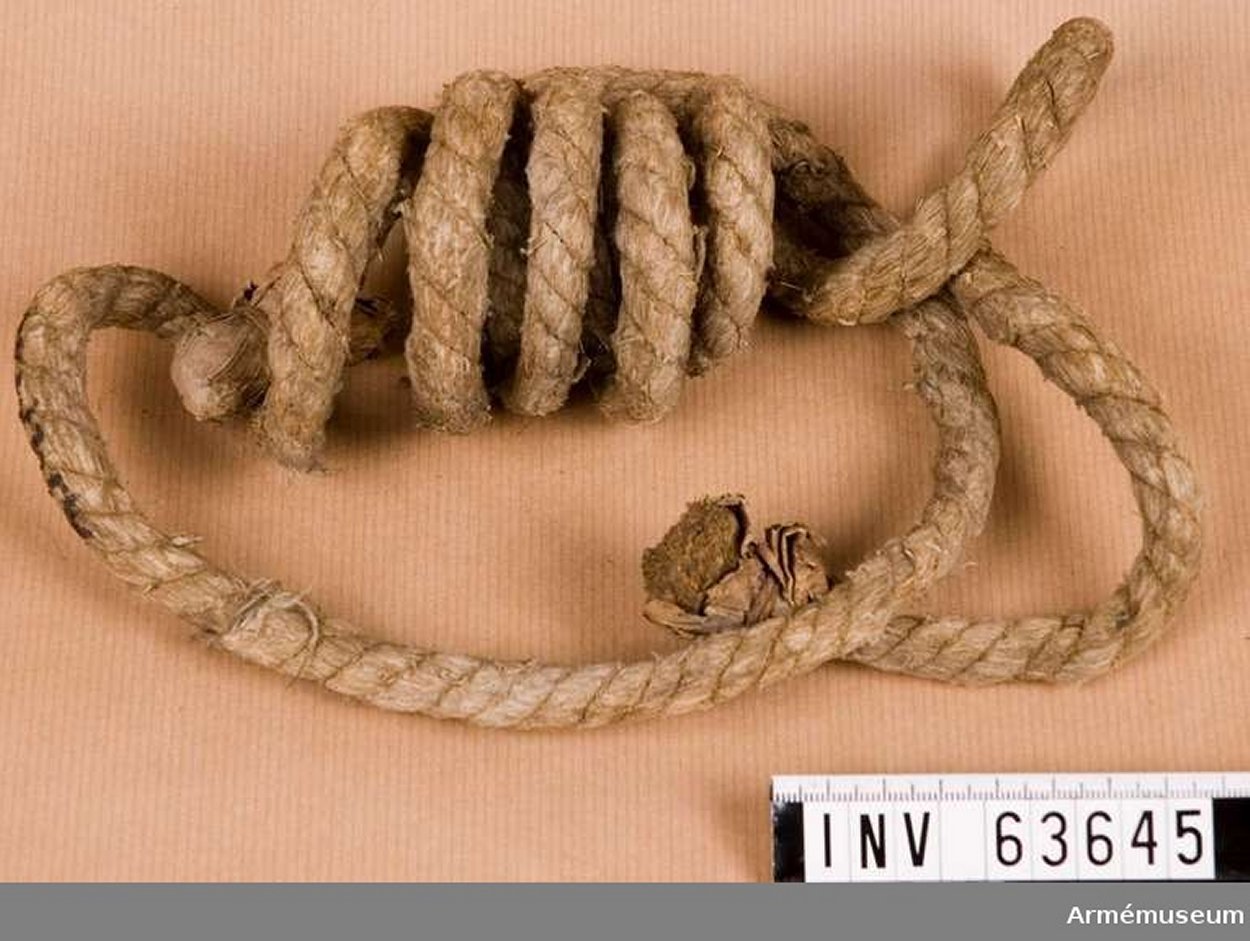

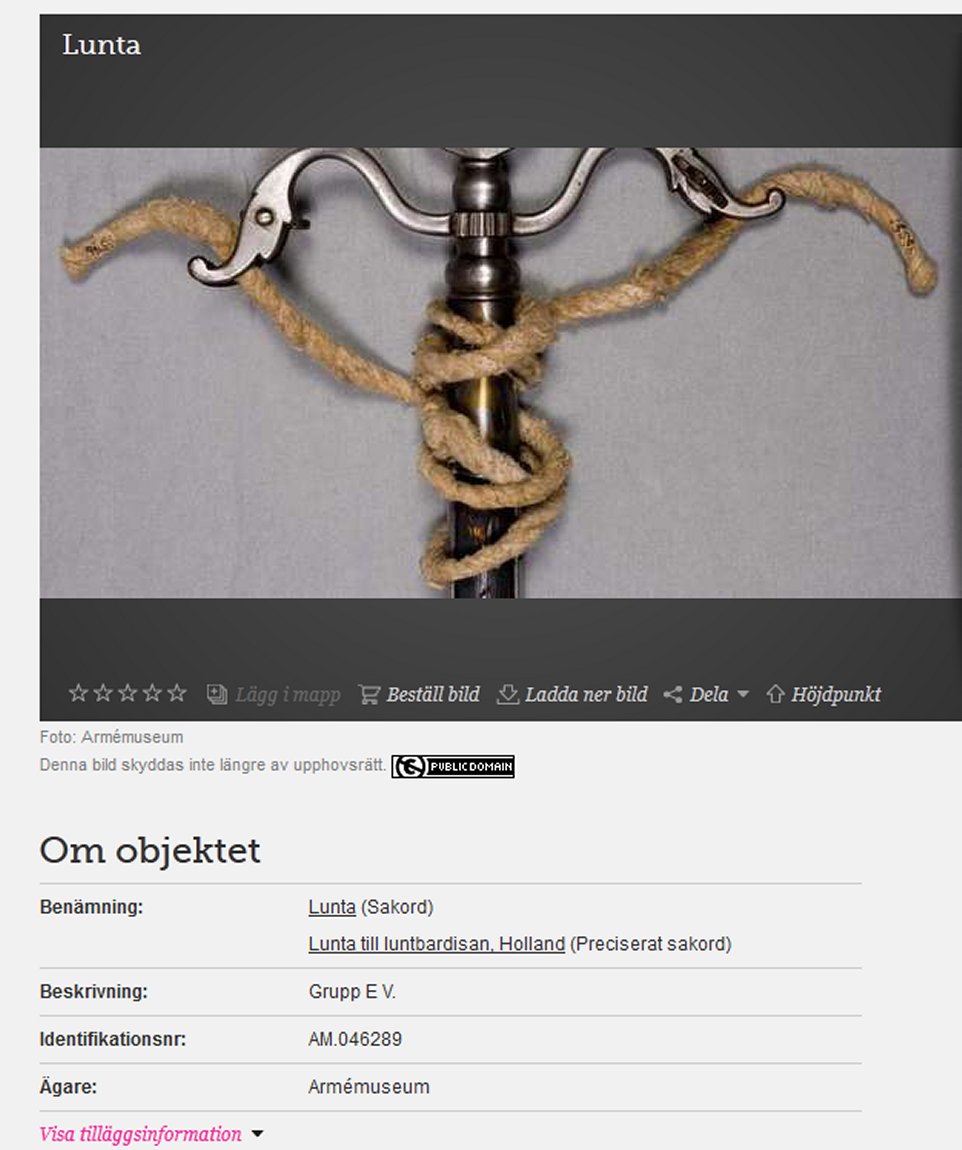

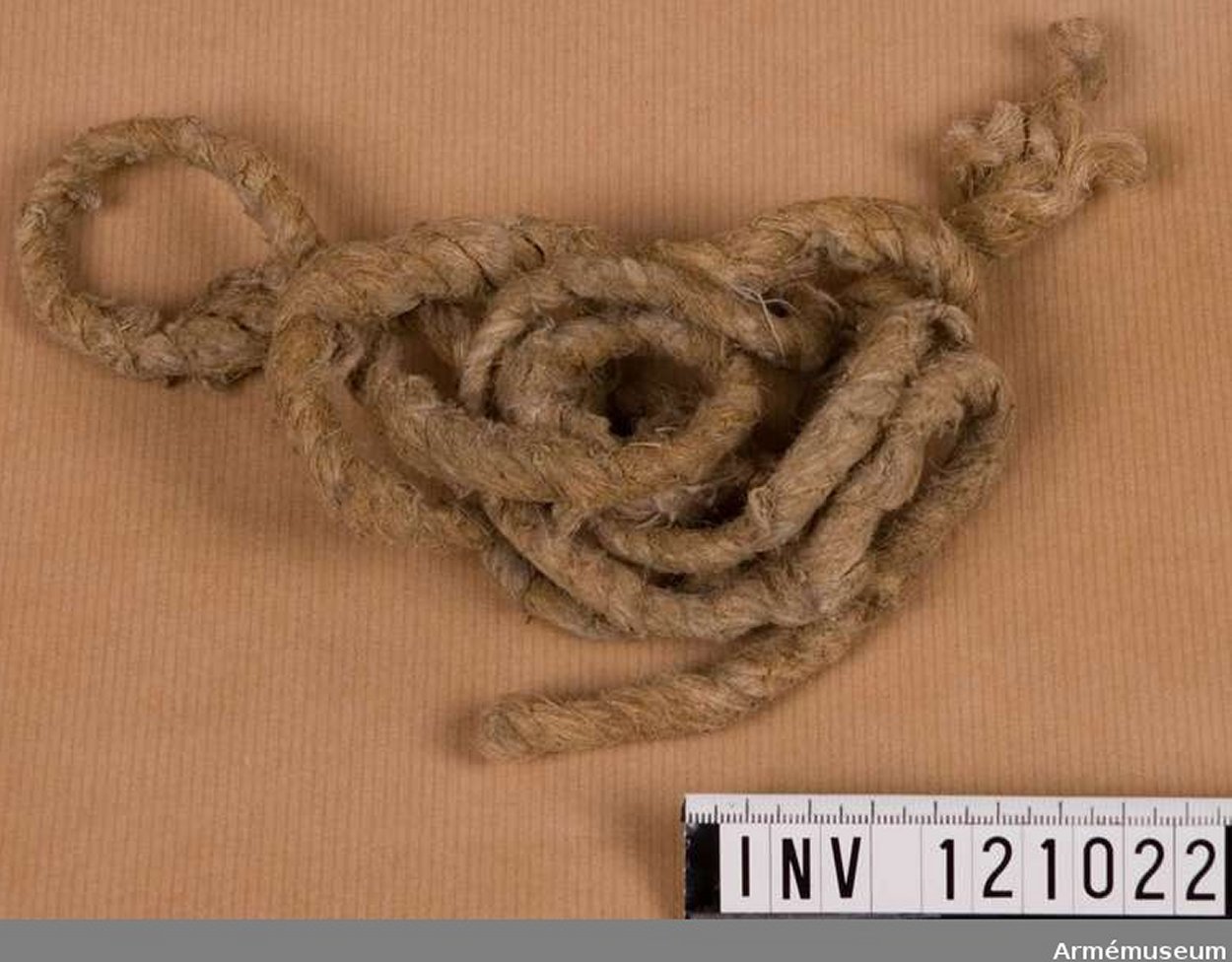

Default A Bundle and Lengths of 17th C. Matchcord, Armémuseum Stockholm

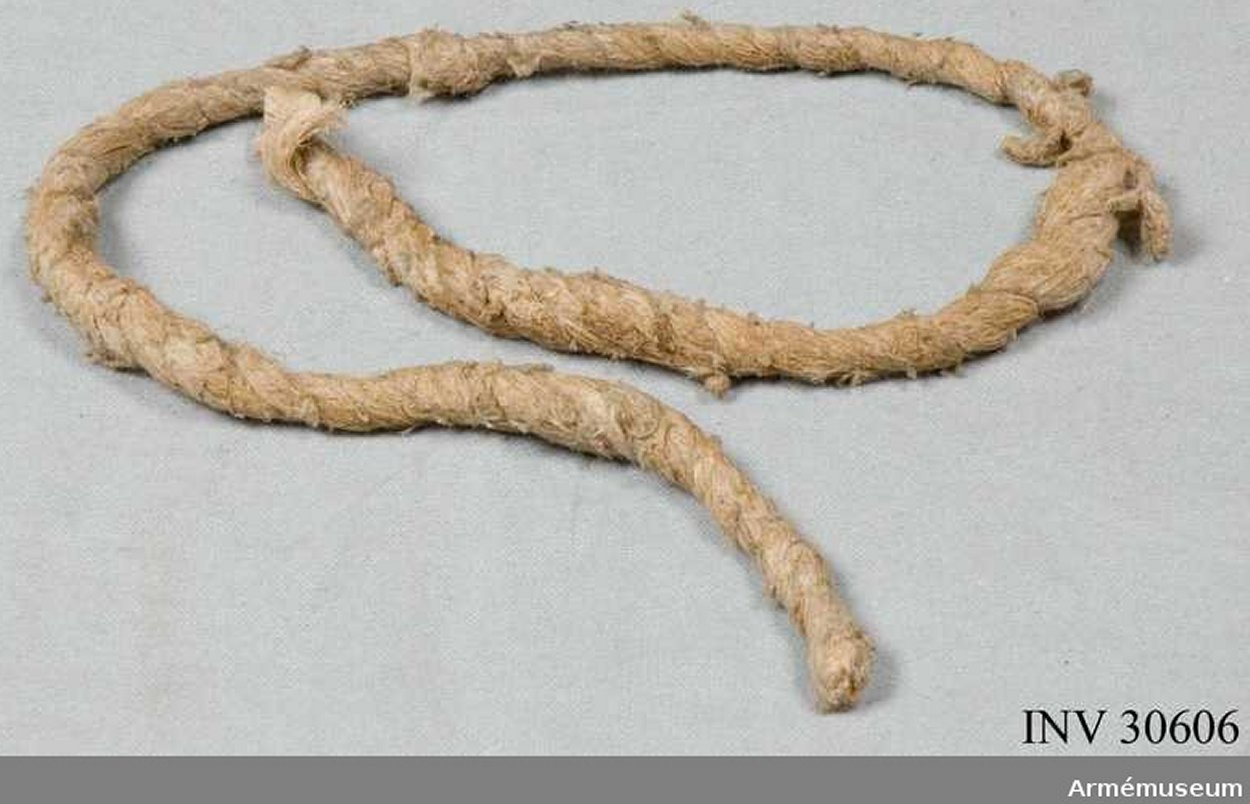

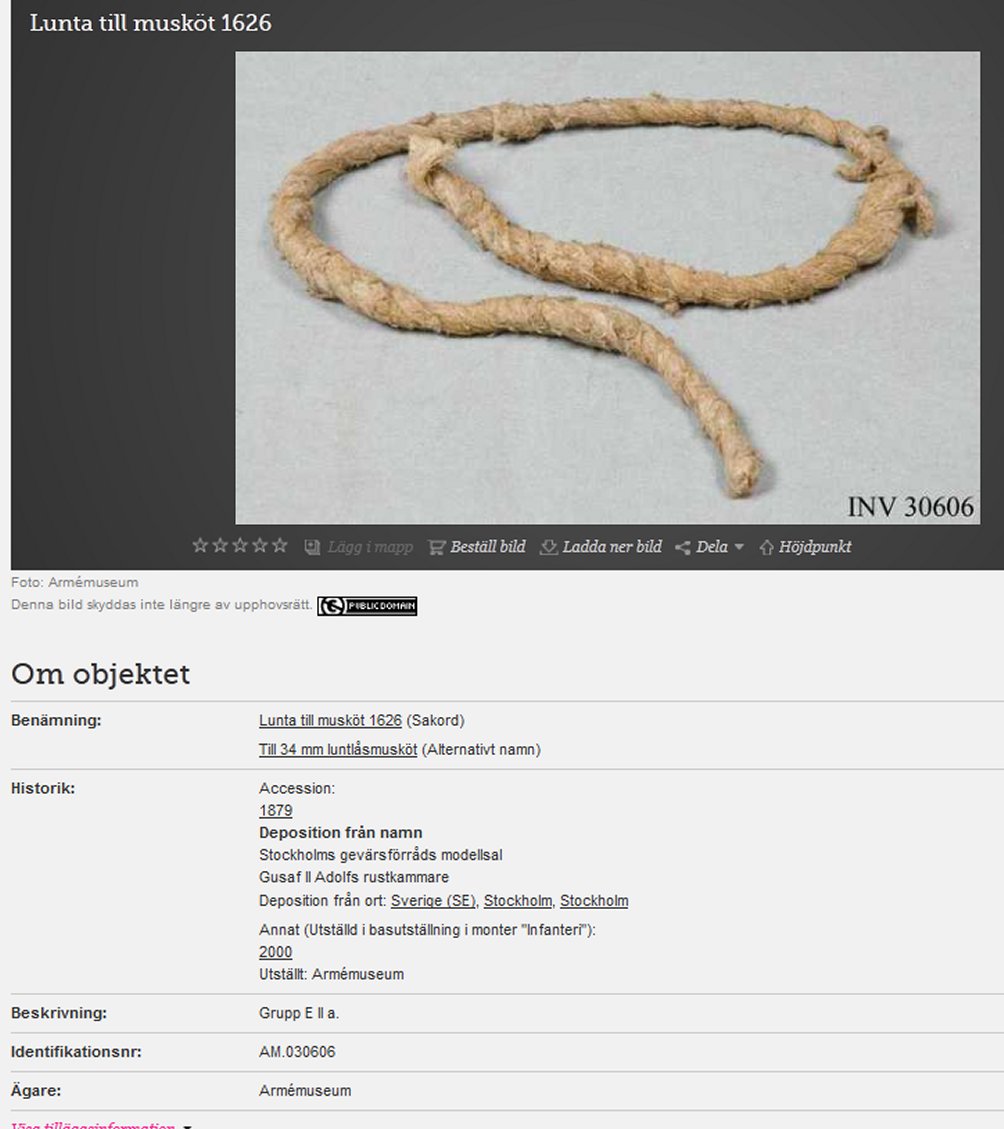

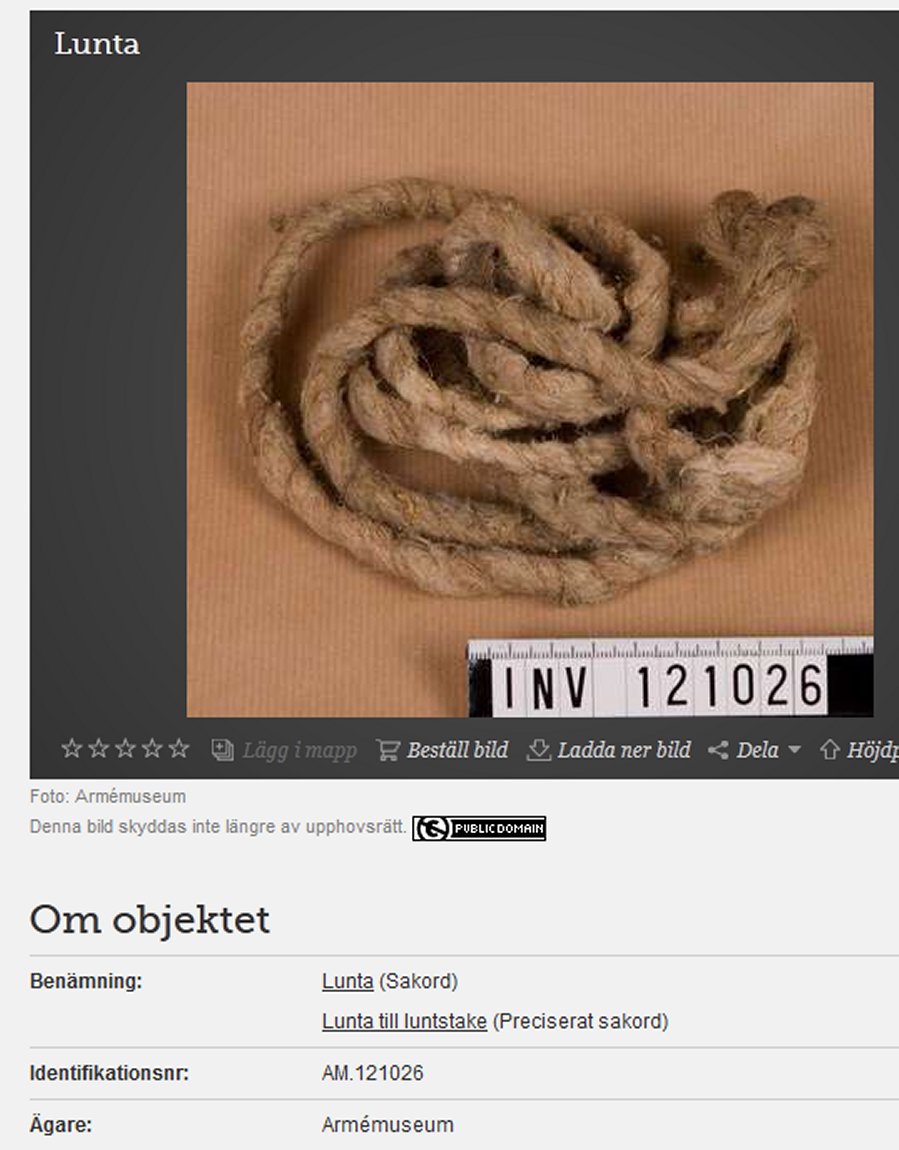

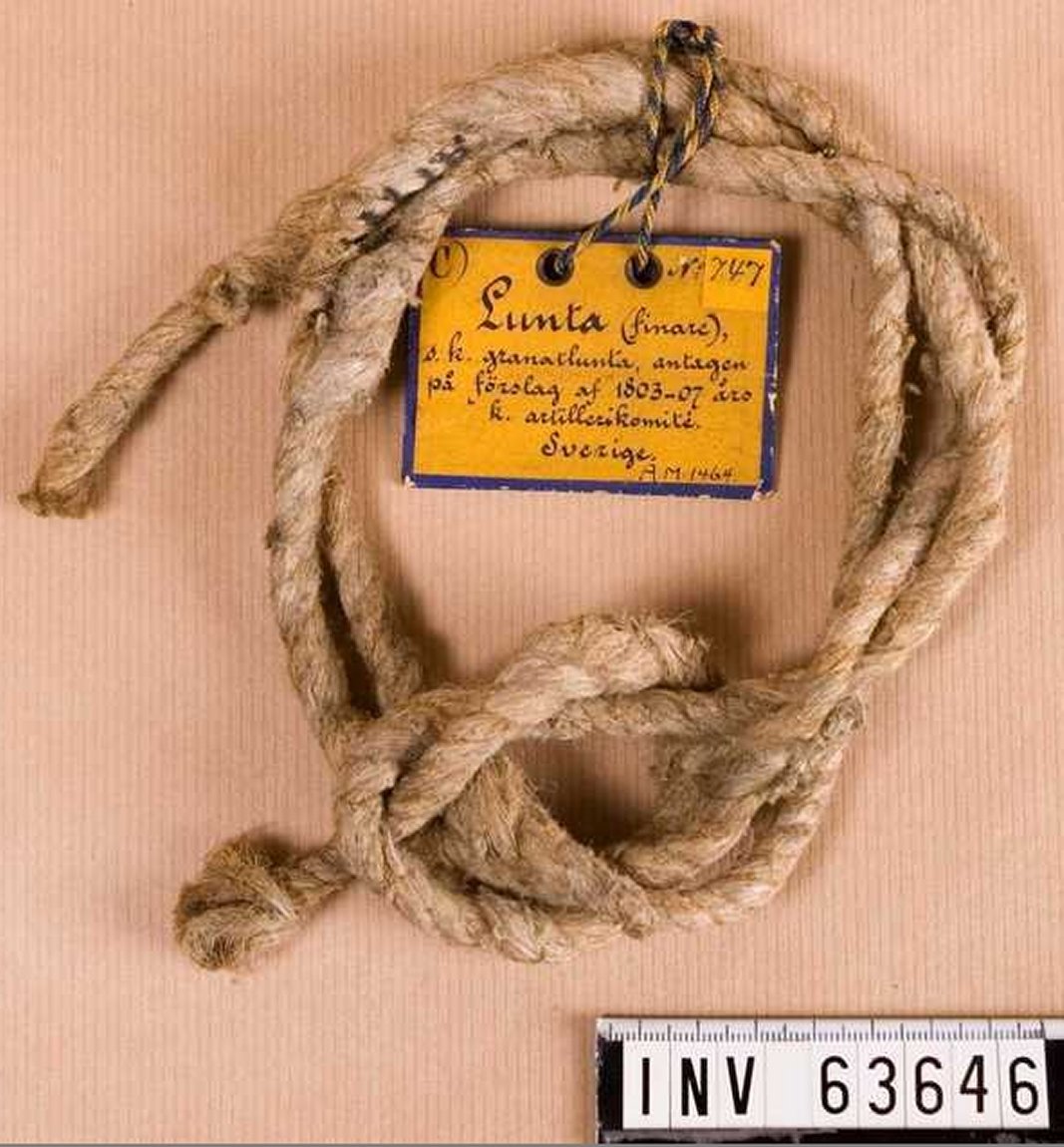

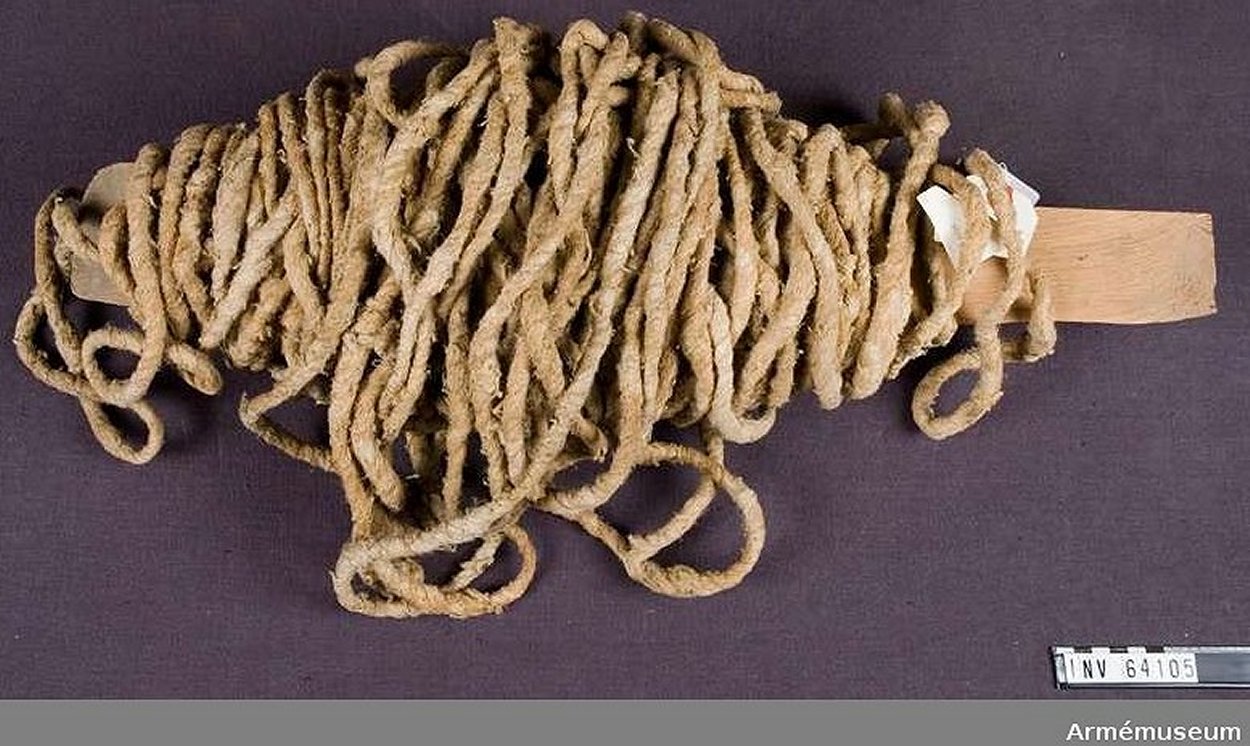

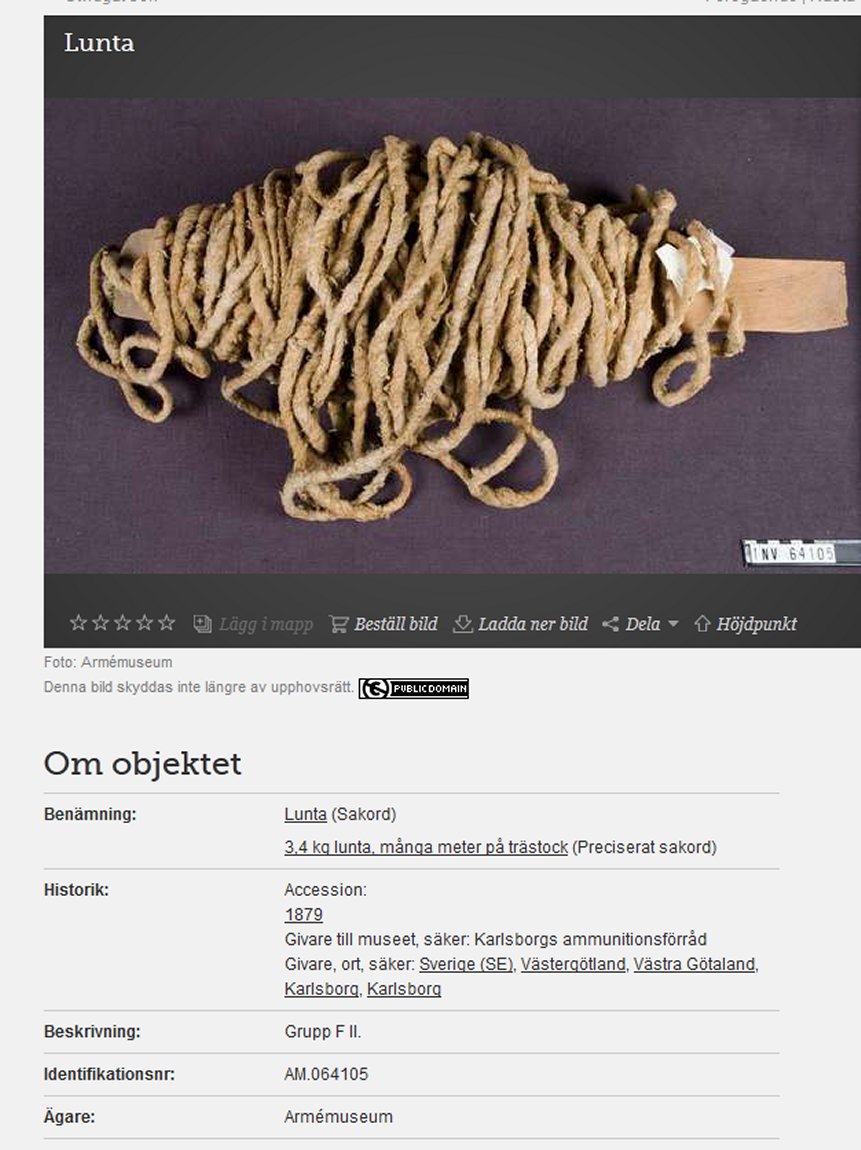

The bundle on top weighs 3.4 kg and might measure 10 m in length.

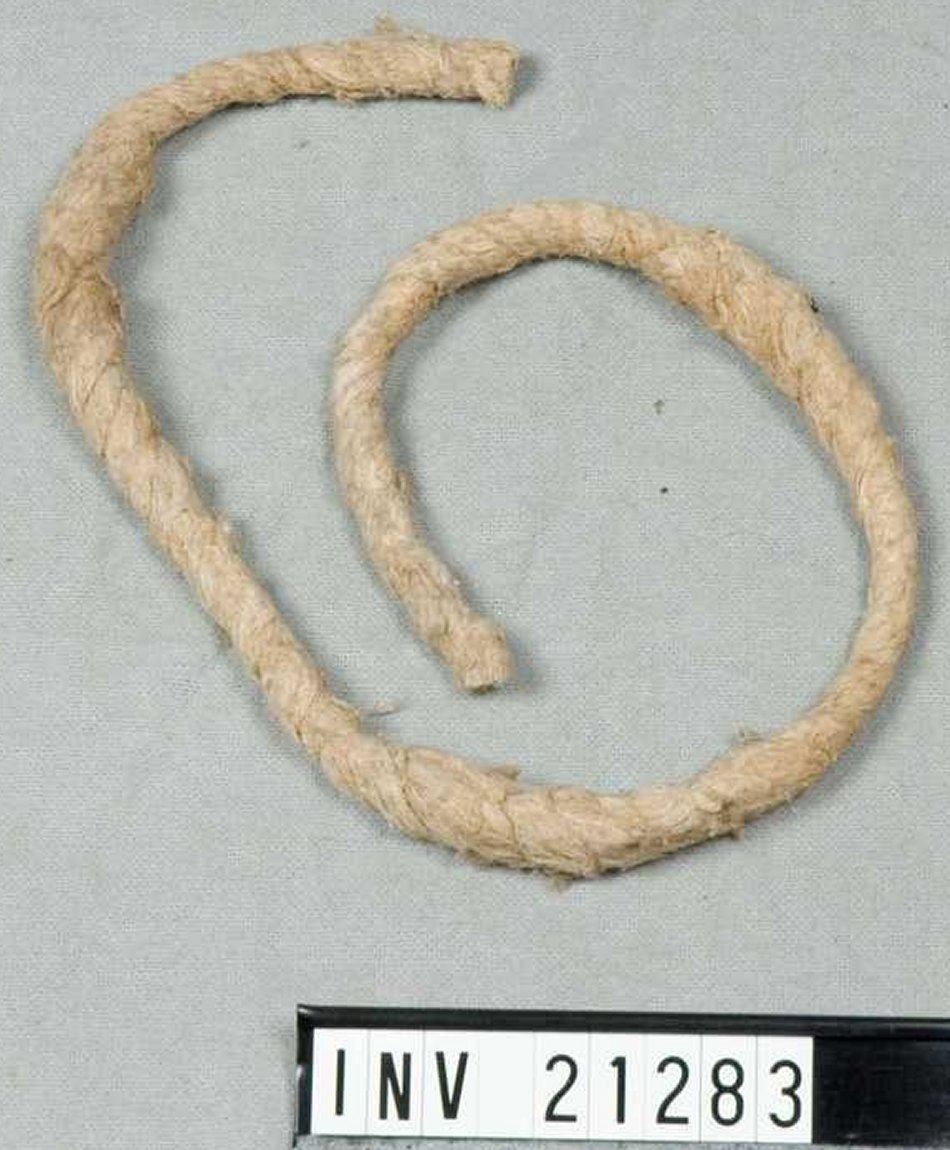

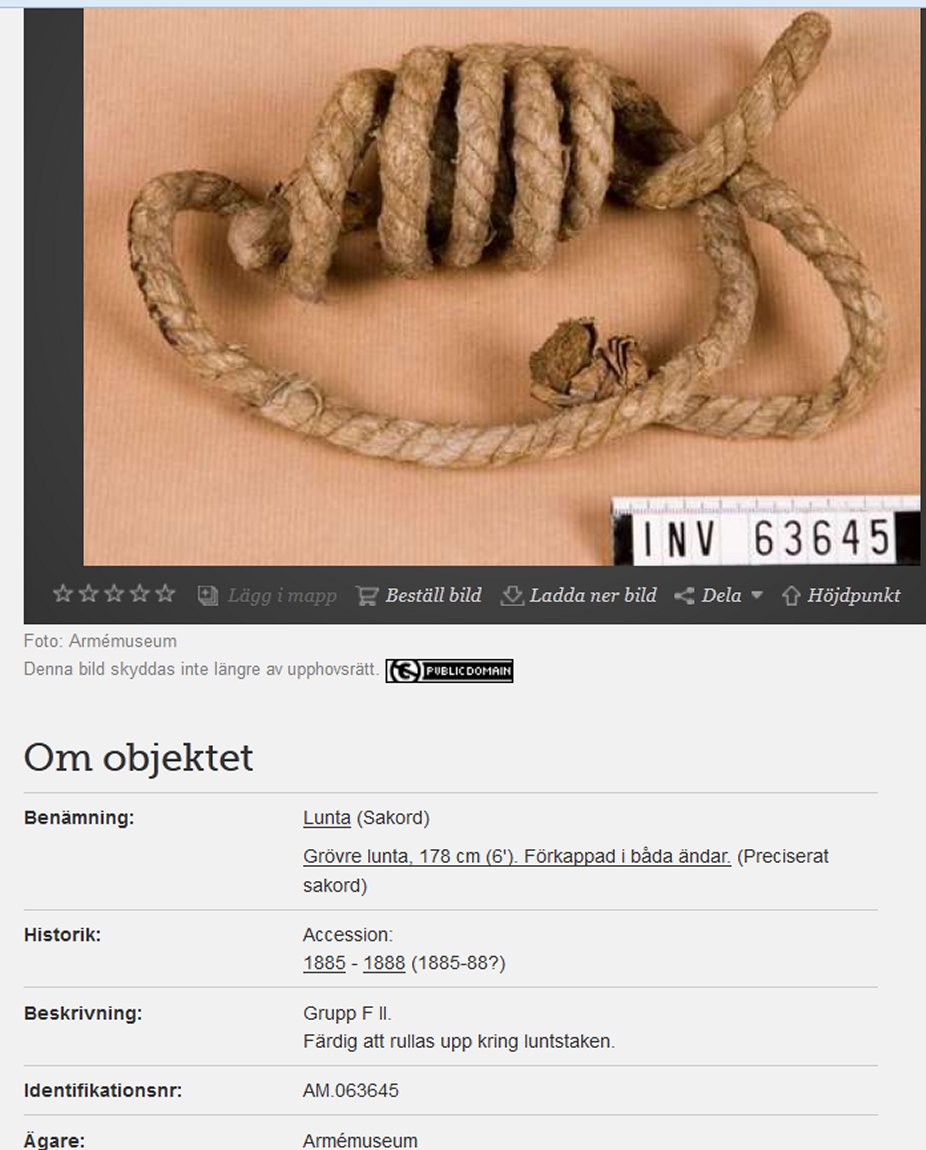

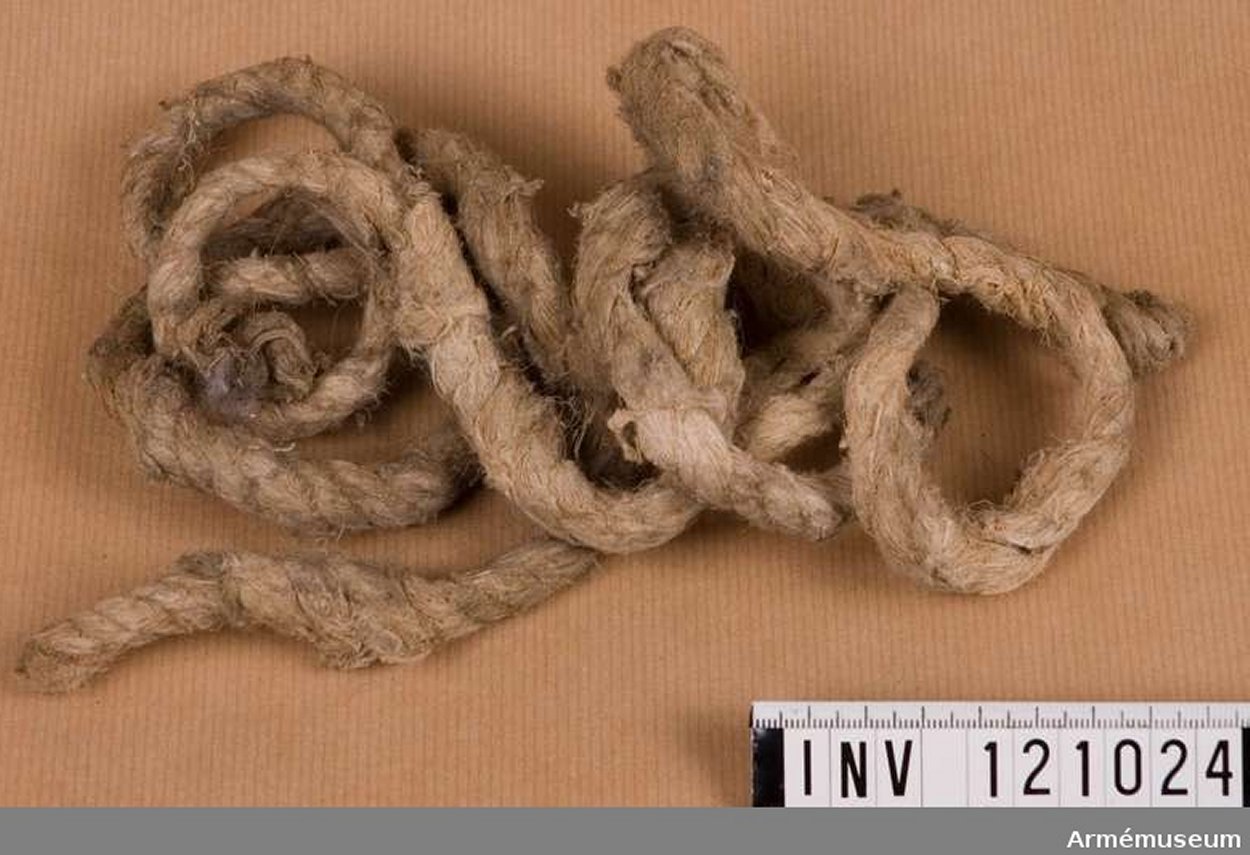

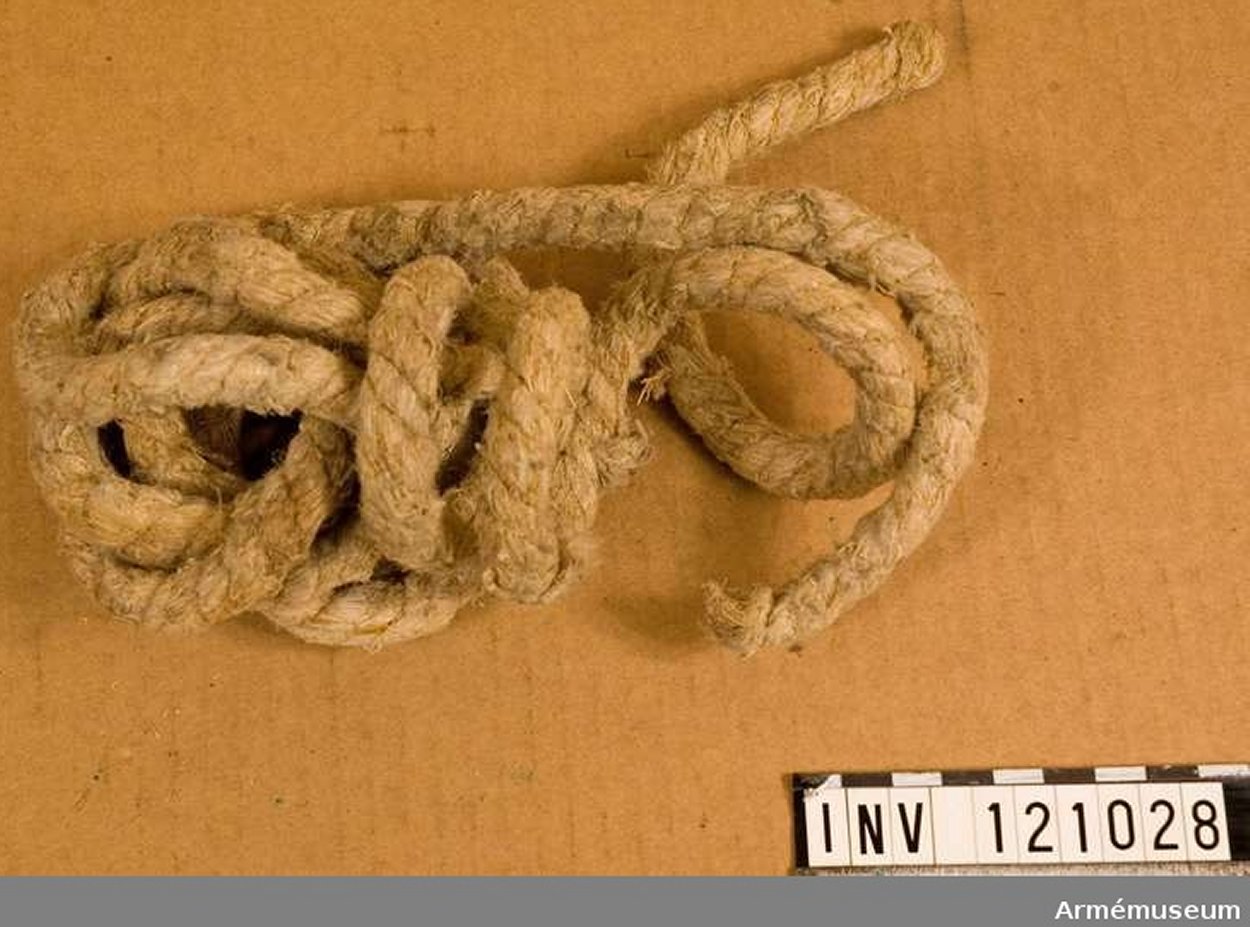

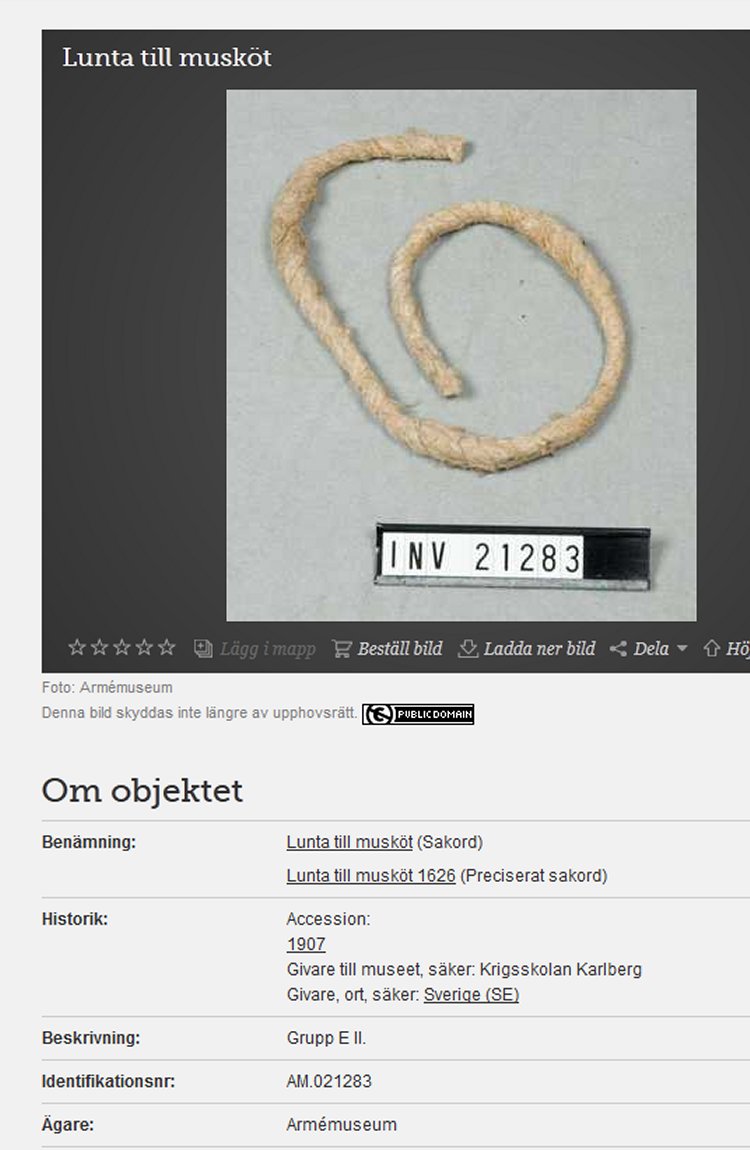

Simliar to the images I posted before, the close-ups allow to study the characteristic fibrous structure of match rope.


And a detached matchlock mechanism, Swedish, 1620's.


Best,
Michael
Attached Images


Last edited by fernando : 27th September 2012 at 03:09 AM.
Matchlock is online now   Reply With Quote
Old 25th September 2012, 05:14 PM   #7
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,231
Default

A few more.
Attached Images

Matchlock is online now   Reply With Quote
Old 25th September 2012, 05:16 PM   #8
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,231
Default

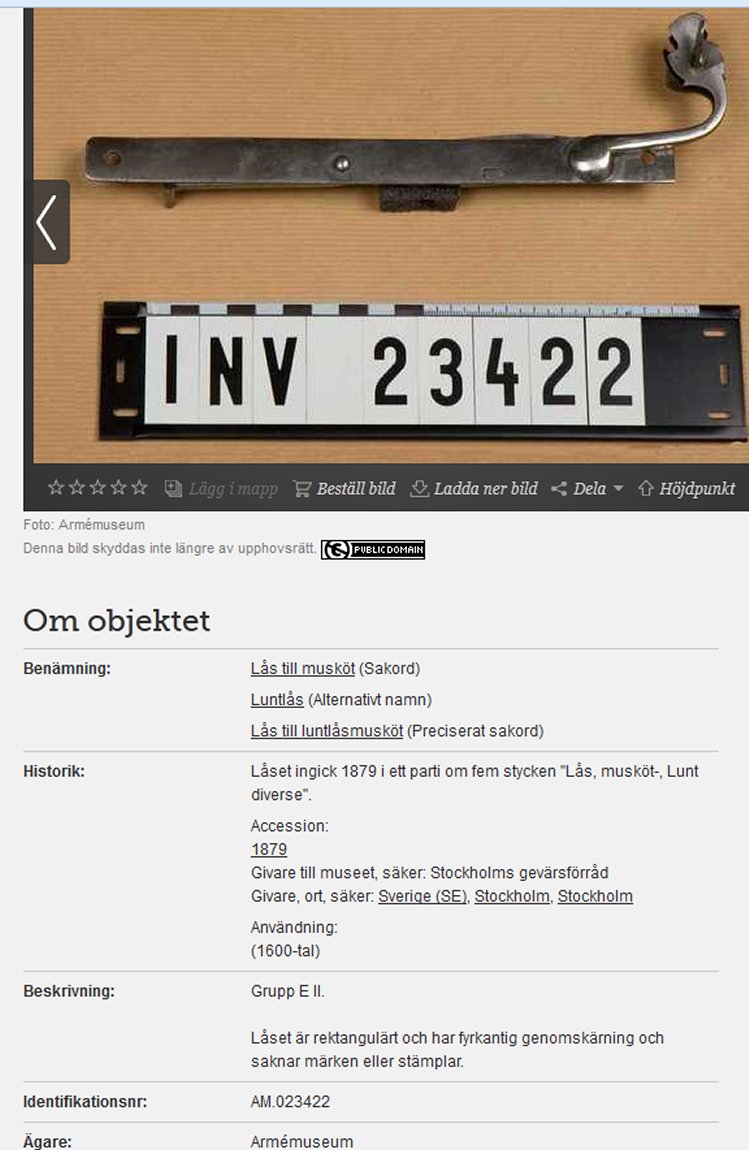

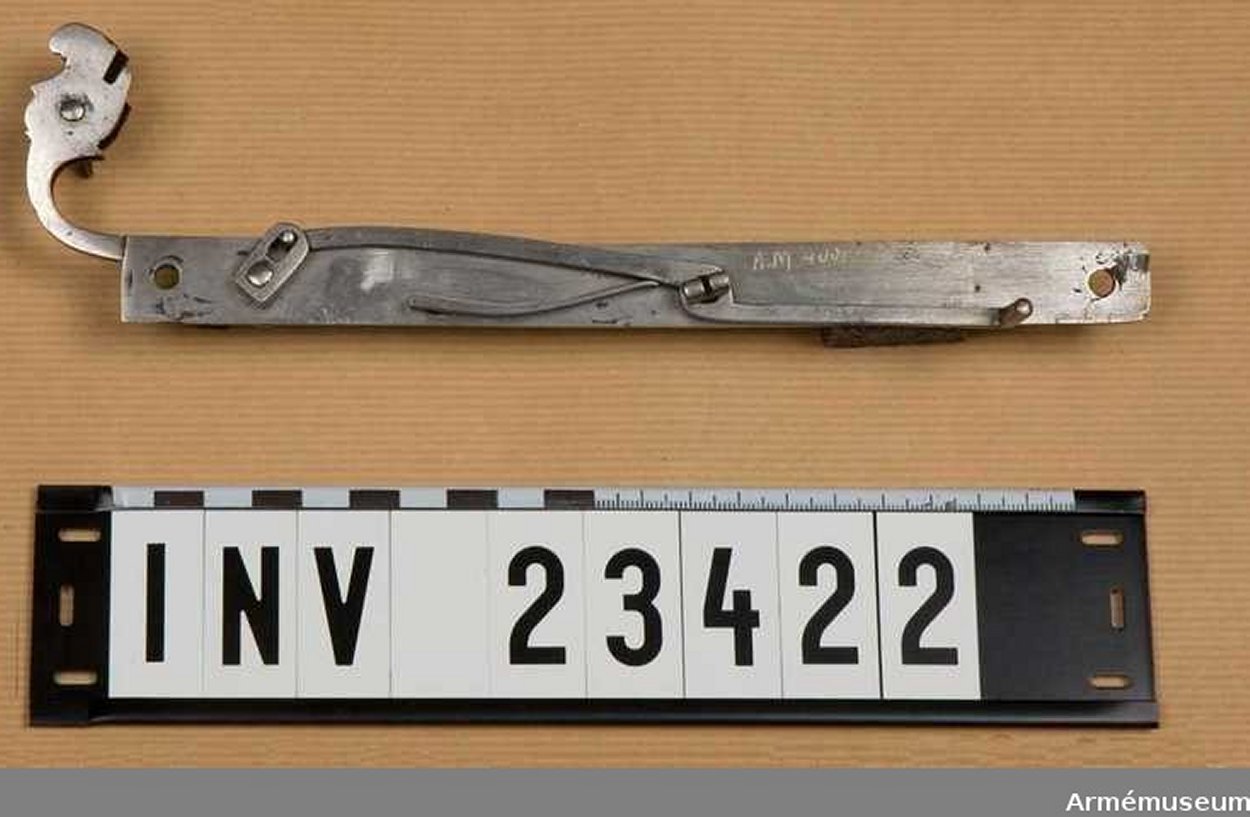

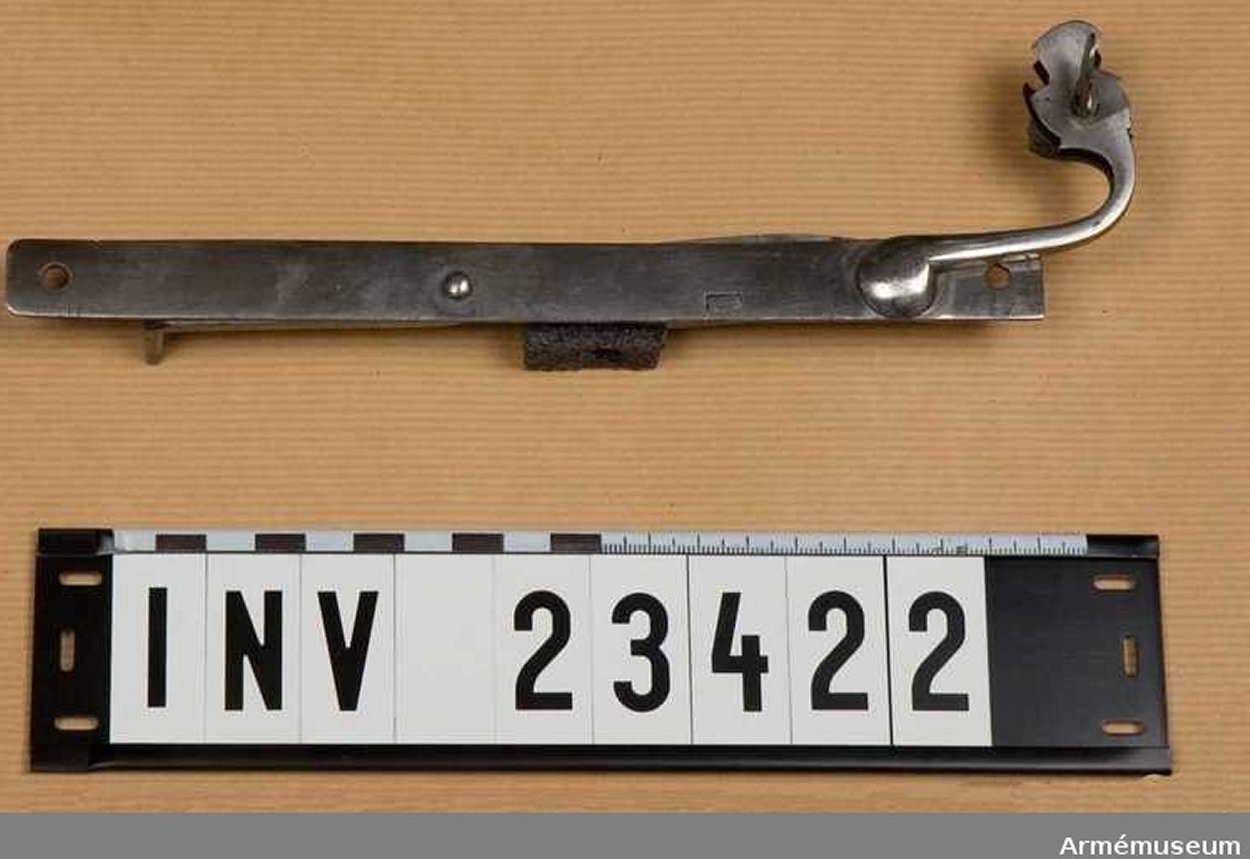

And the matchlock mechanism für a Swedish military musket, 1620's.

m
Attached Images

Matchlock is online now   Reply With Quote
