Old 24th February 2012, 02:10 PM   #1
joe123
Member

Join Date: Feb 2012
Posts: 12
Default Wheellock Powderflask

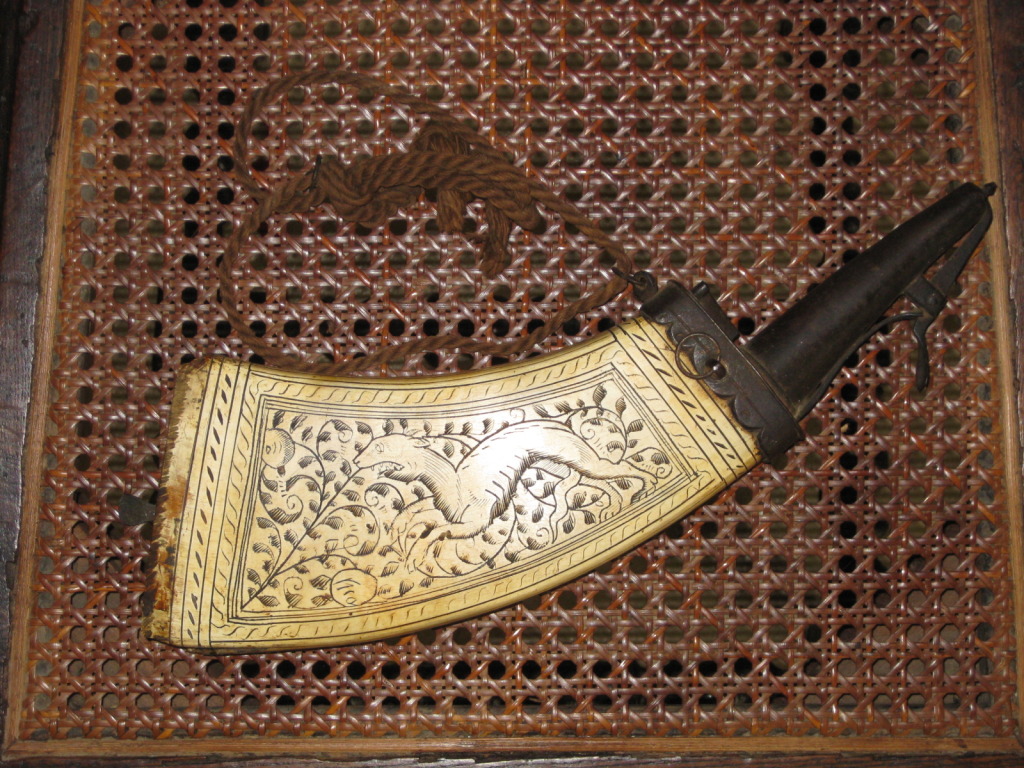

Hello:

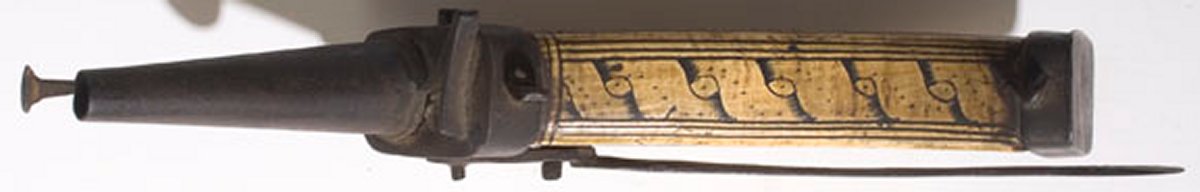

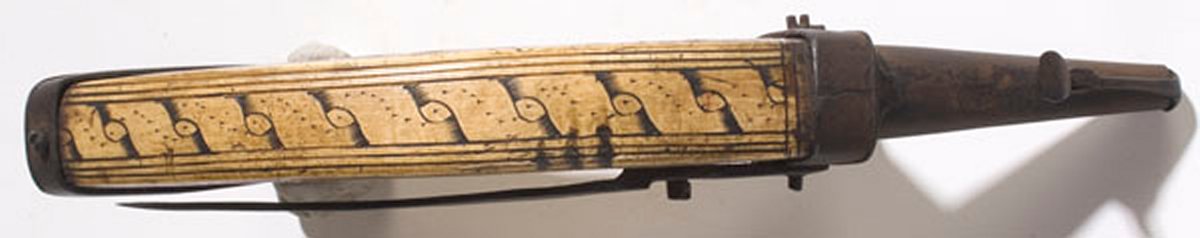

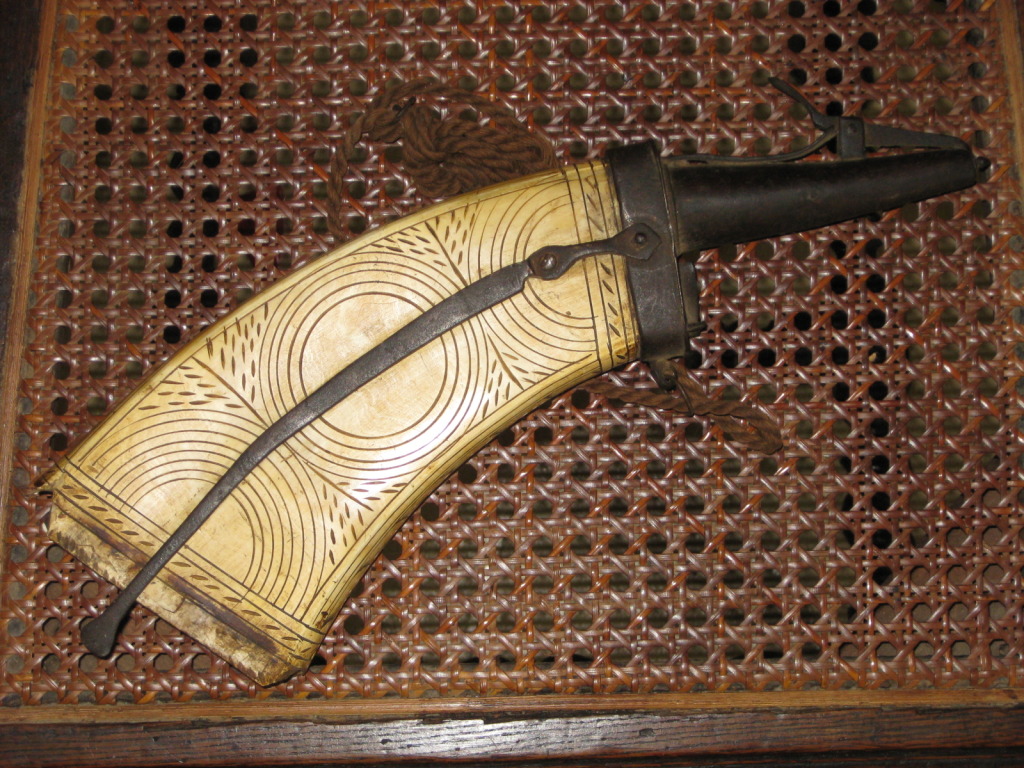

My first post here! I just recently picked this up, and was hoping to hear some thoughts and opinions on it from the more knowledgeable collectors:

Thank You,

Andre
Attached Images


Last edited by Lee : 24th February 2012 at 03:52 PM.
joe123 is offline   Reply With Quote
Old 24th February 2012, 04:13 PM   #2
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238
Default

Hi Andre,


This is a German or Swiss powder flask for a caliverman (German Schütze), ca. 1590's to 1610. I wish to empasize that as the use of wheellocks for military purposes was very limited and rare, these flasks were usually carried together with matchlocks. The body of flattened cow horn is engraved, the ground of the engraving is blackened for contast. The iron top mount comprises nozzle, top lever and horizontal cut-off, the long bearing hook is retained while the iron base mount is missing.

The engraved obverse-side motif of these flasks usually varies according to a great number of artistic templates while the concentric circles on the reverse side seem to be common to almost all known samples.

In contrast to the better known musketeer, the caliverman's matchlock gun (caliver, Schützenrohr) was shorter, lighter and of smaller caiber than the long and heavy actual musket. Thus he had no need of a fork (musket rest), and instead of the musketeer's bandoleer with pre-charged powder containers for each single shot, he carried both the curved, flattened powder flask and a small trapezoid priming flask to load his gun. A number of lead balls was carried in a pouch that was part of the leather frog to which the powder flask was attached by its rear iron hook. While the musketeer usually wore a felt hat the caliverman is always shown wearing a cabasset (Schützenhäubl).

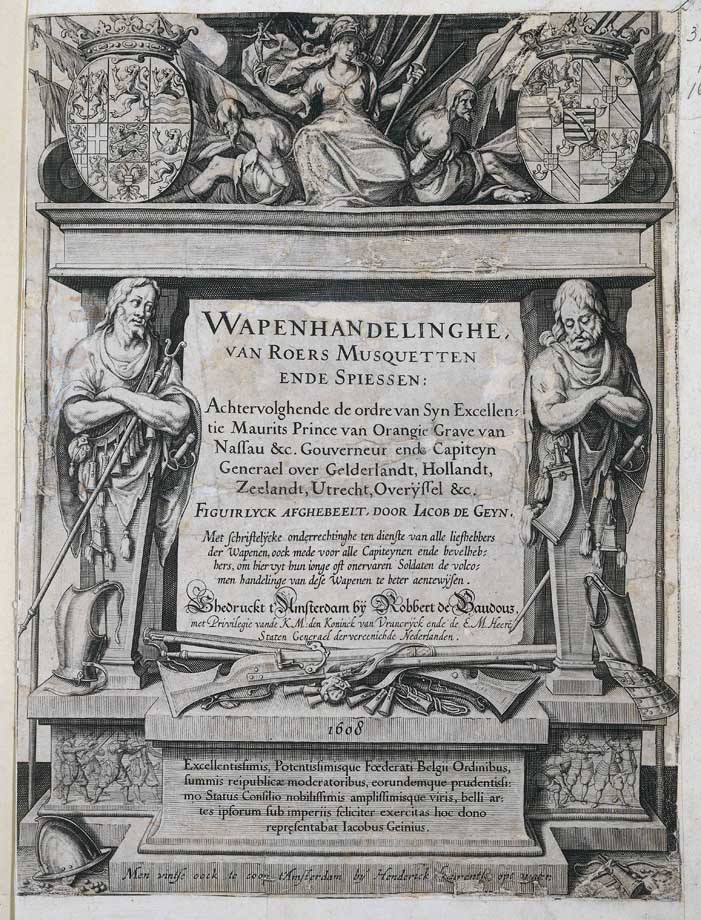

Attached please find some period artwork from Jacob de Gheyn's famous exercise manual Wapenhandelinghe, printed in 1608, illustrating a caliverman with his characteristic curved and flattened flask attached to the leather frog. The ball pouch is clearly visible above to nozzle of the flask in the last illustration.


For more information and a lot of similar items, please see

http://www.vikingsword.com/vb/showt...ht=powder+flask


Best,
Michael
Attached Images


Last edited by Matchlock : 25th February 2012 at 03:19 PM.
Matchlock is online now   Reply With Quote
Old 24th February 2012, 04:40 PM   #3
fernando
Lead Moderator European Armoury

fernando's Avatar

Join Date: Dec 2004
Location: Portugal
Posts: 4,579
Default

Welcome to the forum, Andre .
You may be pleased for how fast you got a expert comprehensive description on your powder flask
fernando is offline   Reply With Quote
Old 24th February 2012, 08:45 PM   #4
joe123
Member

Join Date: Feb 2012
Posts: 12
Default

Hi Michael:

Thank you so much for all the information! I never would have guessed these were for military use. From all the pictures I found on the net, I did notice that same concentric circle motif on the reverse of them.

@Fernando:

Thanks for the welcome, and I'm already impressed by the depth and breadth of knowledge on the site!

Best Regards,

A.
joe123 is offline   Reply With Quote
Old 25th February 2012, 09:40 AM   #5
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238
Default

Hi Andre,

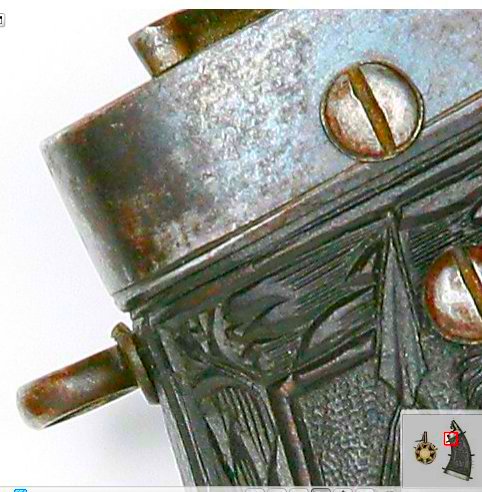

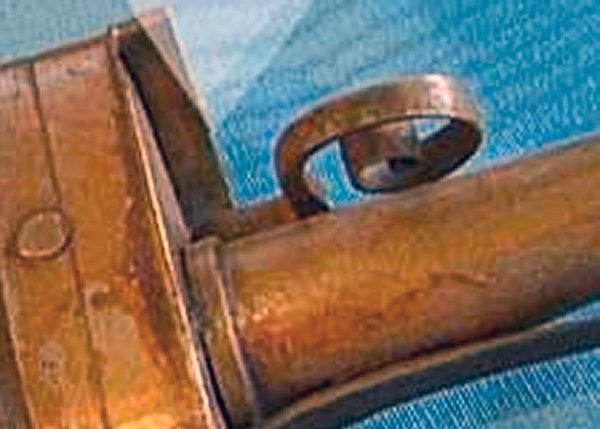

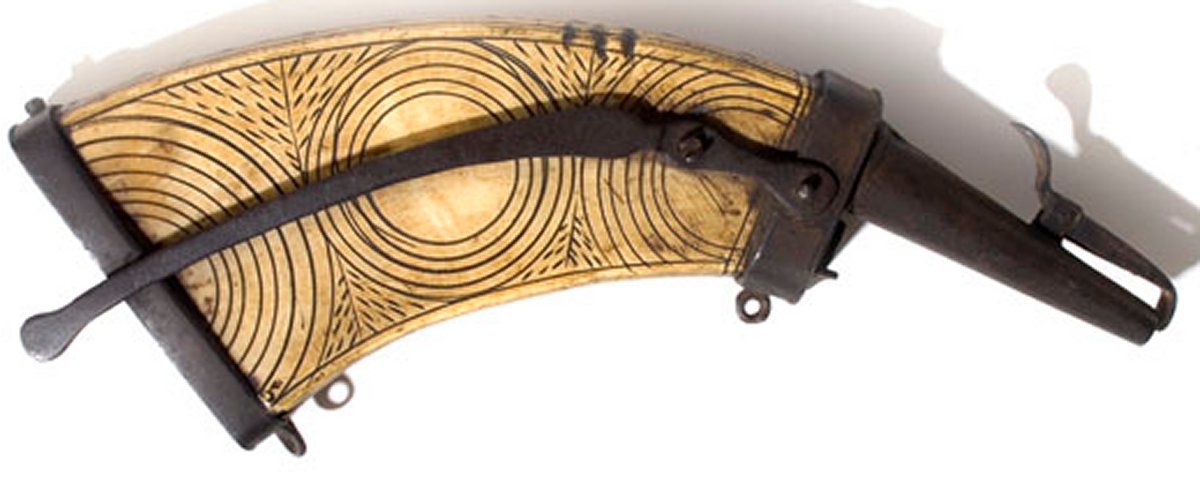

On second sight, and after some photoshopping, I am afraid that the spring-loaded vertical cut-off lever to control the powder flow is missing from the top mount on your flask. I attach a detail from a similar flask showing the scroll finial of the original cut-off. The spring is still present.

Best,
Michael
Attached Images

Matchlock is online now   Reply With Quote
Old 25th February 2012, 03:21 PM   #6
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238
Default

I also wish to add that the floral decoration on your flask forming a foliage with an animal inmidst seems to be at least influenced by the Nuremberg workshop style.

Best,
Michael
Matchlock is online now   Reply With Quote
Old 10th March 2012, 10:20 AM   #7
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238

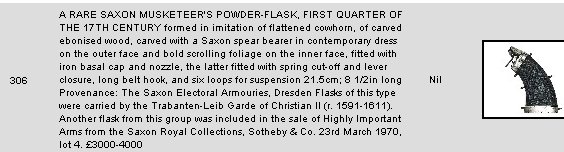

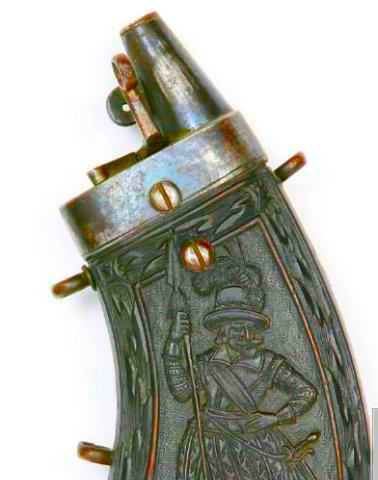

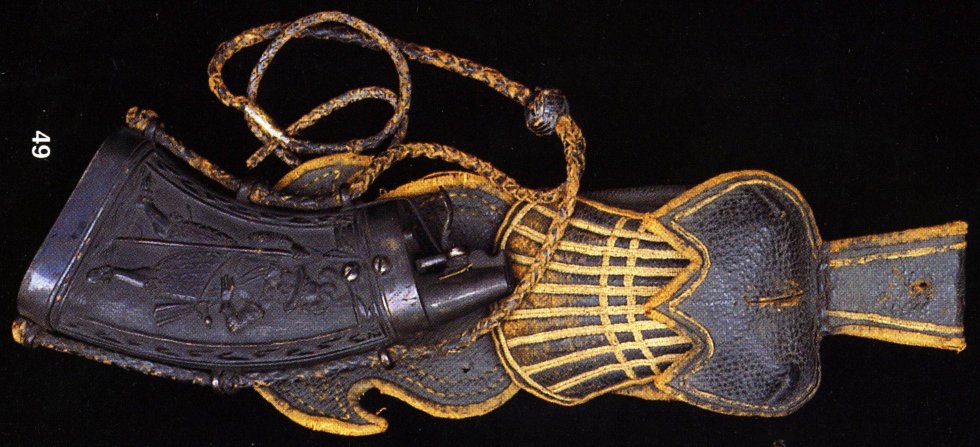

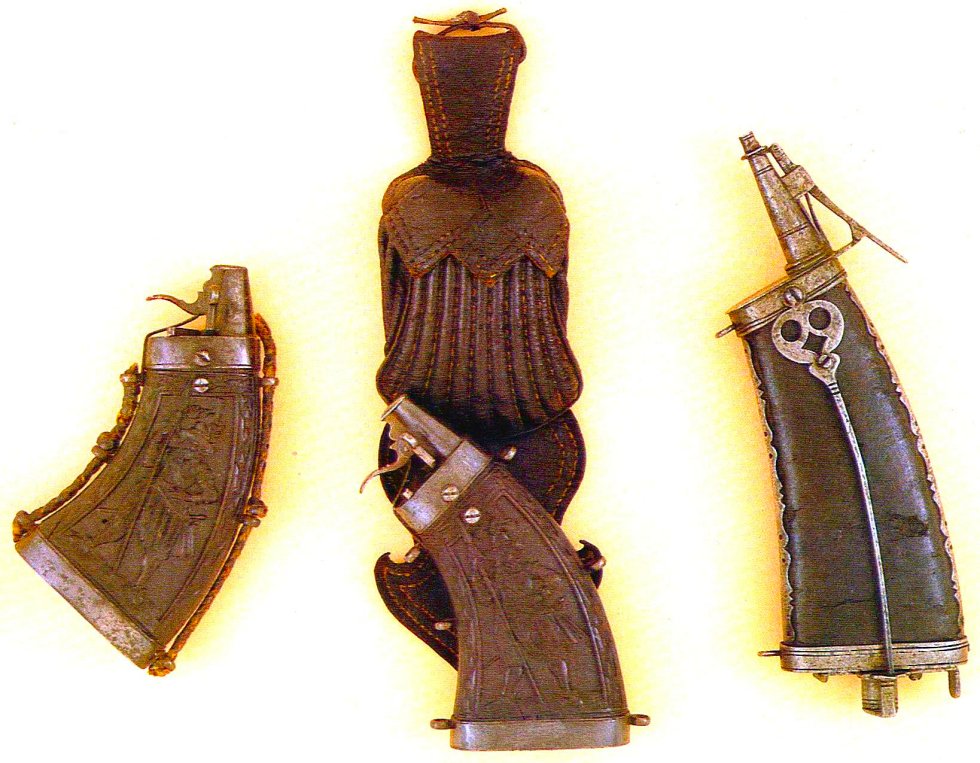

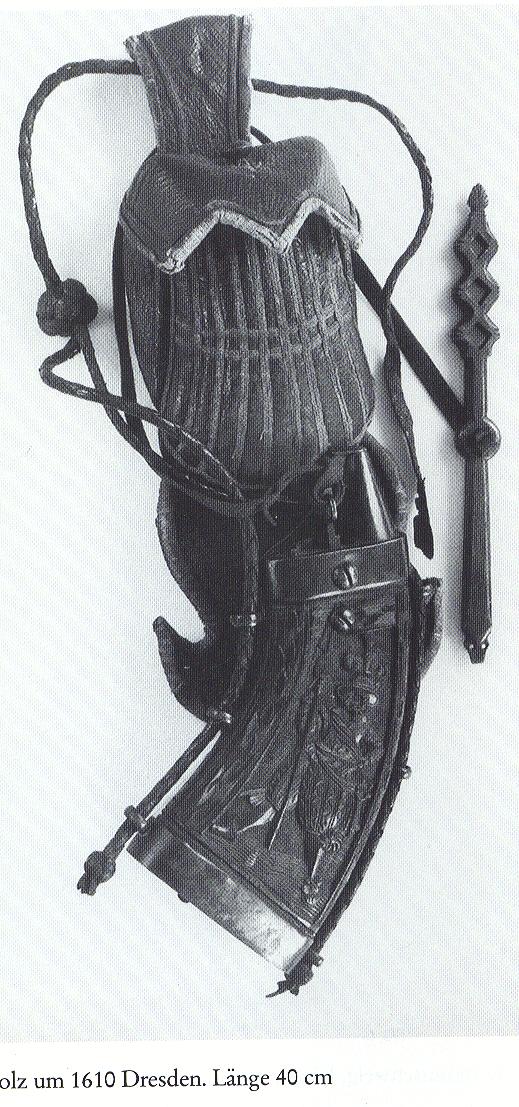

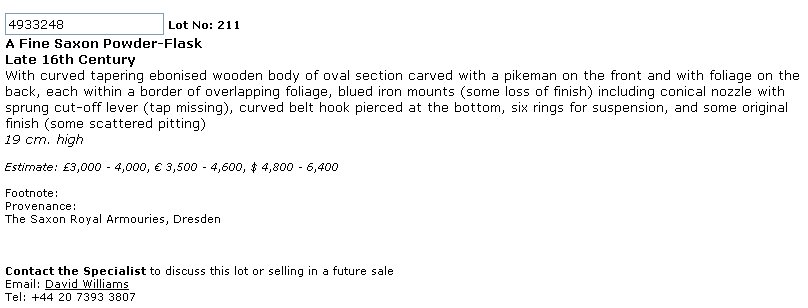

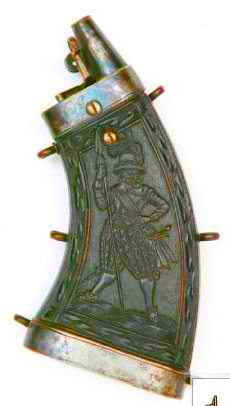

Default A Fine Saxon Carved Wooden Caliverman's Flask, ca. 1590

- for a guardsman of the Electoral Guard (Trabanten-Leibgarde) of Christian I. of Saxony.
Please note the representation of the pikeman and the bluing of the iron mounts on the better preserved items! In one ensemble, even the wheel spanner is retained denoting that this was actually a wheellock accouterment.

Flasks of both this quality and provenance usually appear on the market every five to ten years and realize an average of ca. 5,000-8,000 USD each, the leather frog not included! When the latter is still there they almost double the sum.

Best,
Michael
Attached Images


Last edited by Matchlock : 10th March 2012 at 10:35 AM.
Matchlock is online now   Reply With Quote
Old 15th March 2012, 05:04 PM   #8
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238
Default

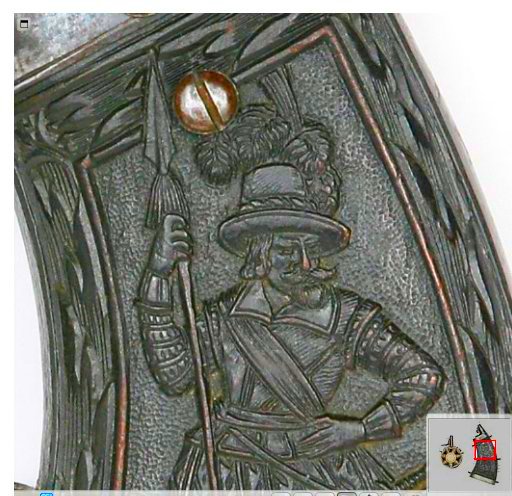

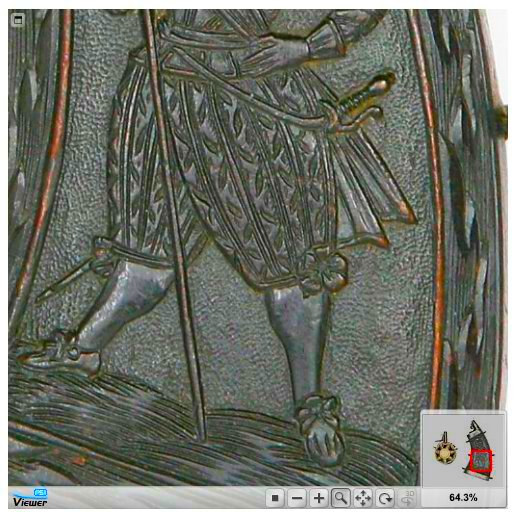

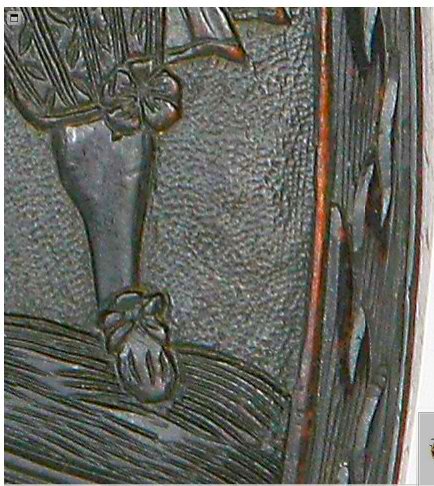

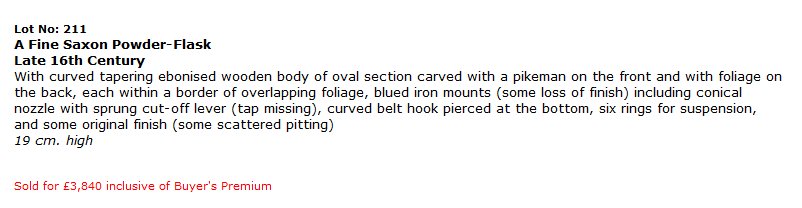

More close-ups of a Saxon caliverman's flask, ca. 1590; Bonhams, 20 April 2011.

m
Attached Images

Matchlock is online now   Reply With Quote
Old 9th June 2012, 05:46 PM   #9
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238

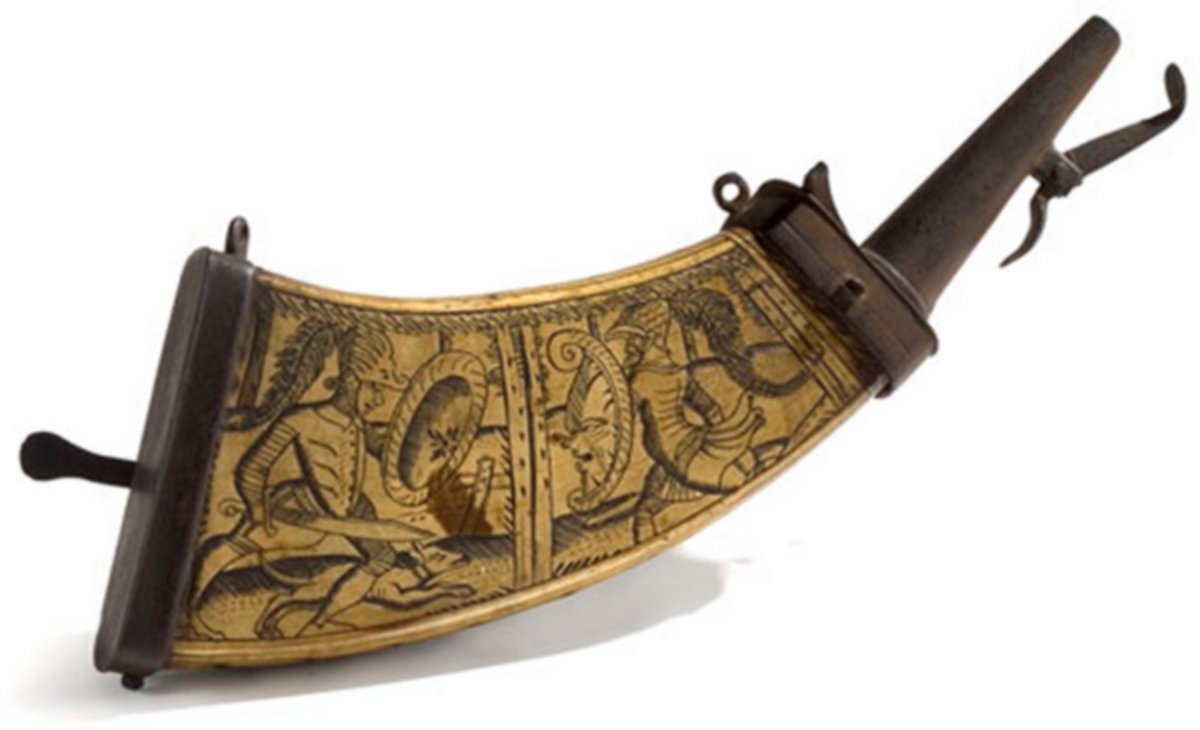

Default A Good Nuremberg Caliverman's Flask, ca. 1600

This is a flask of the type Joe 123 posted (post #1).

The auction house stated that the flask was originally part of a soldier carrying a wheellock; however, as wheellocks were extremely rare in military use it was most probably an accouterment accompanying a matchlock caliver, as depicted by de Gheyn in 1607-8 (see post #2).

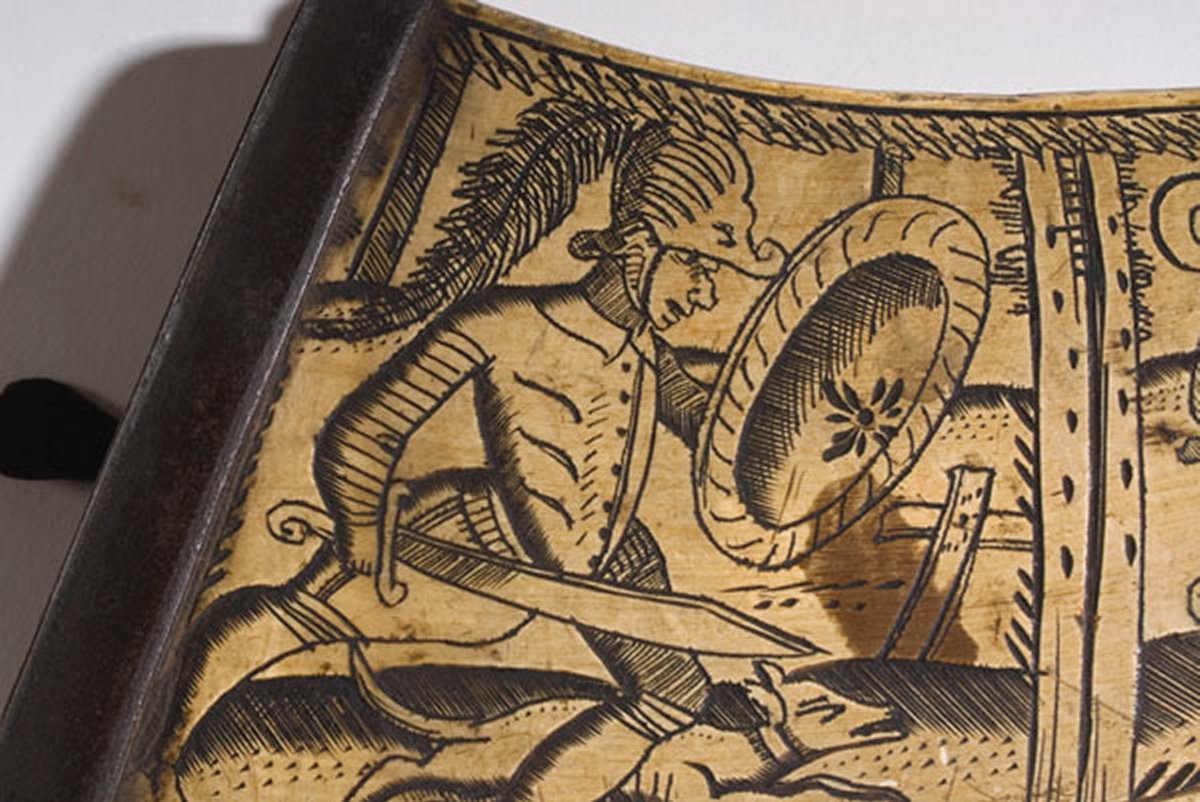

The flattened, curved body of cowhorn, characteristically engraved with two warriors all'antica on the obverse, and concentric circles on the reverse, the narrow sides also showing their typical pattern, and the ground of the engravings retaining its original deep blackening; the iron top und lower mounts retaining their original blued surface (now heavily patinated overall), and complete with its reverse hook.
The hook on all calivermen's flasks was actually not a 'belt hook' but was for attaching the flask to the leather frog.
The spring of the manually operated nozzle lid is missing from the top mount.

These flasks were made in large numbers in various Nuremberg workshops, with dated samples recorded from the 1590's to 1619 (the latest recorded date, as far as I remember).

As many of these are still around, perfect overall condition is the most important criterion when selecting a piece for your collection.

Best,
m
Attached Images


Last edited by Matchlock : 9th June 2012 at 07:06 PM.
Matchlock is online now   Reply With Quote
Old 9th June 2012, 05:51 PM   #10
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238
Default

For more calivermen's flasks and their leather frogs, please see

http://www.vikingsword.com/vb/showt...t=leather+frogs

m

Last edited by Matchlock : 9th June 2012 at 06:59 PM.
Matchlock is online now   Reply With Quote
Old 18th June 2012, 09:19 PM   #11
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,238
Default

For another specimen dated 1606, see

http://www.vikingsword.com/vb/showt...7s+powder+flask,

post # 3.
Matchlock is online now   Reply With Quote
