Default Wheellock Mechanism Parts and Their Correct Labeling

I found this on wikipedia and posted it here before.


Let me please do so once again in a thread of its own; its worth it, I guess, especially as some members still seem to have difficulties choosing exact denominations.

The only sad thing about this is that the first image showing the outside of the lock mechanism is of course shown mirrored. I could not reverse it because of the script. Please do keep that in mind.

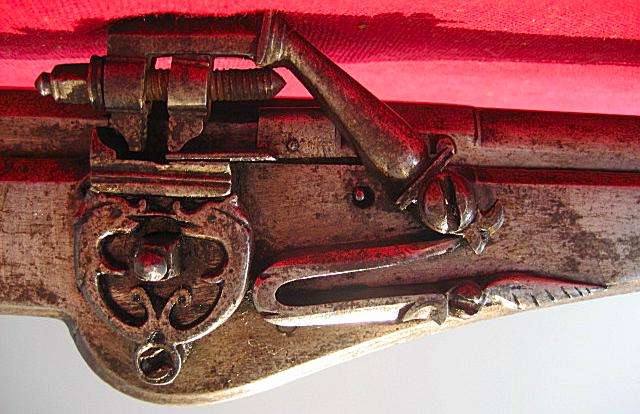

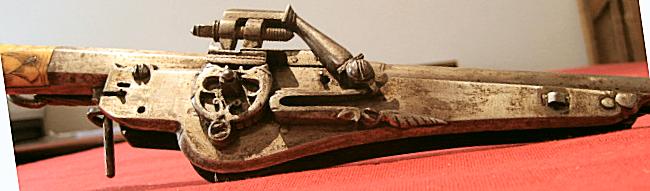

The lock mechanism is German, the locksmith was Georg Schneider in Nuremberg, ca. 1575-80.


Enjoy, and best,
Michael
Attached Images


Last edited by Matchlock : 8th January 2014 at 06:23 PM.
Matchlock is offline   Reply With Quote
Old 8th January 2014, 08:17 PM   #2
fernando
Member

fernando's Avatar

Join Date: Dec 2004
Location: Portugal
Posts: 4,529
Default

Quote:
Originally Posted by Matchlock
... The only sad thing about this is that the first image showing the outside of the lock mechanism is of course shown mirrored. I could not reverse it because of the script. Please do keep that in mind....

What you mean mirrored, Michl ?

.
Attached Images


Last edited by fernando : 8th January 2014 at 08:44 PM.
fernando is offline   Reply With Quote
Old 8th January 2014, 08:59 PM   #3
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,197
Default

O.k. then, you scoundrel,

When you're here with me in Bavaria you gotta show me how you did that, you computer crack!

Best, and thanks a million,
Michl, a bloody computer layman
Matchlock is offline   Reply With Quote
Old 12th January 2014, 11:28 AM   #4
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,197
Default

A finely etched, detached wheellock mechanism for a small arquebus, Ausgburg, Bavaria, ca. 1565-70, formerly in the author's collection; author's photographs.

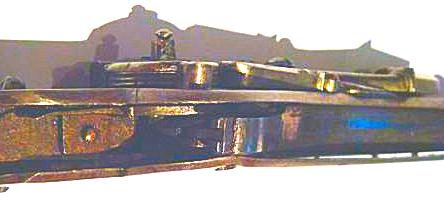

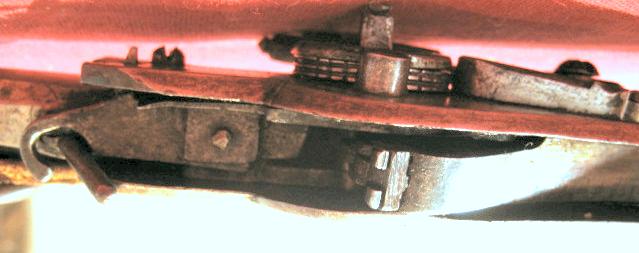

This is one of the very rare instances that you can study a wheellock mechanism when completely dismantled down to all its tiniest parts, and the smallest of screws.


Best,
Michael
Attached Images


Last edited by Matchlock : 12th January 2014 at 05:57 PM.
Matchlock is offline   Reply With Quote
Old 12th January 2014, 11:35 AM   #5
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,197
Default

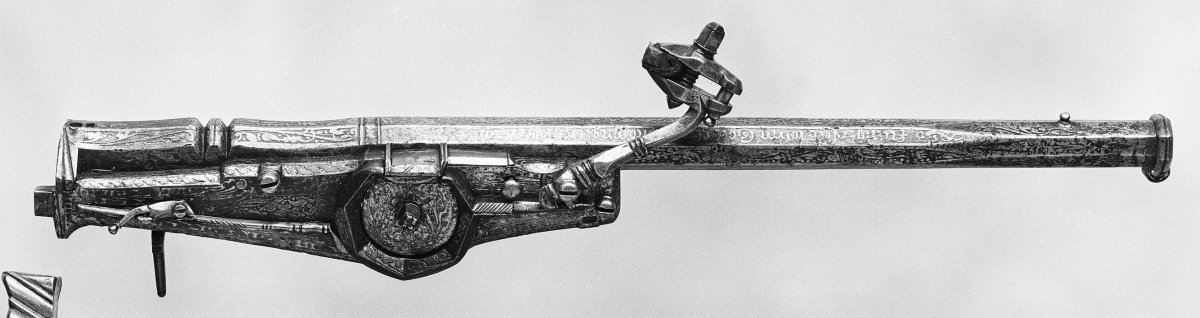

A finely etched and gilt double lock and barrel wheellock pistol, made by Peter Peck in Munich, Bavaria, in ca. 1540-45, preserved in the Met and dismantled to all its single parts.

Have fun jigsaw-puzzling!


m
Attached Images

Matchlock is offline   Reply With Quote
Old 12th January 2014, 12:08 PM   #6
fernando
Member

fernando's Avatar

Join Date: Dec 2004
Location: Portugal
Posts: 4,529
Default

What ... do you expect me to insert a legend in each part ?
fernando is offline   Reply With Quote
Old 12th January 2014, 12:30 PM   #7
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,197
Default

Well, 'Nando,


If anybody can manage to do that, then he must be a computer cracker like you!


Best,
Michl
Matchlock is offline   Reply With Quote
Old 12th January 2014, 12:47 PM   #8
fernando
Member

fernando's Avatar

Join Date: Dec 2004
Location: Portugal
Posts: 4,529
Default

Don't keep telling those things or people out there beleives that ... and will conclude i flag such presumption. I am a complete ignaro; whom keeps hammering on the most basic keys till he gets some lousy (est) result
fernando is offline   Reply With Quote
Old 12th January 2014, 01:17 PM   #9
Fernando K
Member

Join Date: Apr 2010
Posts: 231
Default

Hello Matchlock

Indeed, it is a blessing to see gutted mechanisms. Here in Argentina we have no weapons wheel, maybe two and a museum least see them gutted. At most we spark Arms (There is only one copy of wick) (matchlock). Thank you very much.

Affectionately. Fernando K
Fernando K is offline   Reply With Quote
Old 12th January 2014, 01:29 PM   #10
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,197
Default

Thank you so much, Fernando,

I guess I perfectly understood that the translating machine you employed meant dismantled by 'gutted' and flintlocks by 'spark' arms.

Best/affectionately,
Michael
Matchlock is offline   Reply With Quote
Old 12th January 2014, 02:09 PM   #11
fernando
Member

fernando's Avatar

Join Date: Dec 2004
Location: Portugal
Posts: 4,529
Default

Quote:
Originally Posted by Matchlock
... I guess I perfectly understood that the translating machine you employed meant dismantled by 'gutted' ...

Not a wrong analogy, though
fernando is offline   Reply With Quote
Old 12th January 2014, 05:48 PM   #12
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,197
Default

That's exactly what I thought, 'Nando,


When looking up the meaning of the verb to gut, which was unknown to me.


Best,
Michl
Matchlock is offline   Reply With Quote
Old 13th January 2014, 07:22 AM   #13
Marcus den toom
Member

Marcus den toom's Avatar

Join Date: Jun 2013
Location: Netherlands
Posts: 245
Default

I think i did it
But some correction is probably needed


Last edited by Marcus den toom : 13th January 2014 at 09:36 AM.
Marcus den toom is offline   Reply With Quote
Old 13th January 2014, 09:13 AM   #14
Matchlock
Member

Matchlock's Avatar

Join Date: Sep 2008
Location: Bavaria, Germany - the center of 15th and 16th century gunmaking
Posts: 4,197
Default

Hi Marcus,


Gosh, you actually did it!
Thank you so much. It was quite a joke between 'Nando and me, I would not have expected anybody to achieve this aim.


I have only very few suggestions to make as long as you can still edit and alter your post in the course of today:



3: wheel cover plate screws

9: dog with upper and lower jaw and tightening screw (it is not a hammer as it does not strike)

10: combined pan and wheel cover plate

15: dog retaining screw



5: combined wheel shaft, excentric and chain

7: pan cover

8: pan cover plate

14: dog with upper and lower jaw and tightening screw

18: dog retaining screw

19: safety catch spring

20: swiveling safety catch

21: saftey catch screw

28: combined left sear and right trigger release spring

31: left main spring pin

37: combined right sear and trigger release spring


Anyone with other sugggestions?
